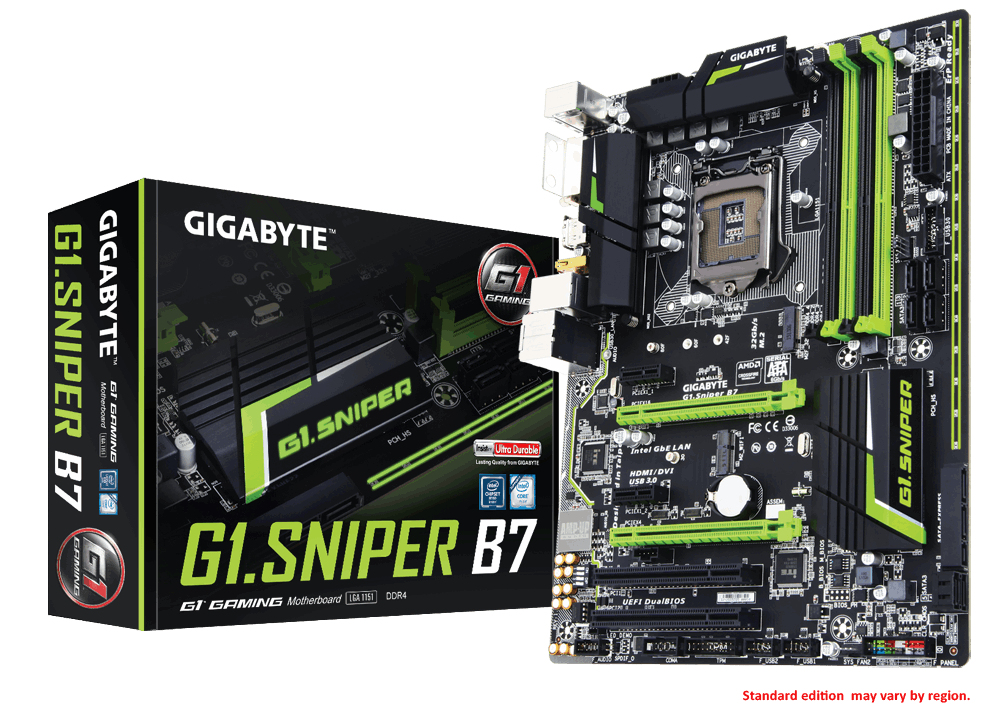

GIGABYTE G1.Sniper B7

GIGABYTE G1.Sniper B7

Model G1.Sniper B7Part no. G1.SNIPER B7EAN 4719331835408

69 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR4-SDRAM
  • Supported storage drive interfacesM.2
  • Maximum graphics card memory512 MB
  • USB 2.0 connectors2
  • USB 2.0 ports quantity1
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR4-SDRAM
Supported storage drive interfaces
M.2
Maximum graphics card memory
512 MB
USB 2.0 connectors
2
USB 2.0 ports quantity
1
Brand
GIGABYTE
Category
Motherboard
Model
G1.Sniper B7
Part numbers
G1.SNIPER B7, G1.SNIPER-B7, G1.Sniper B7-R1
EAN / UPC
4719331835408
Also known as
GIGABYTE G1.Sniper B7 Intel® B150 LGA 1151 (Socket H4) ATX

Specifications

69 specifications in 12 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1151 (Socket H4)
Compatible processor seriesIntel® Celeron®, Intel® Pentium®
Maximum number of SMP processors1

Memory

Supported memory typesDDR4-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityECC & Non-ECC
Supported memory clock speeds2133 MHz
Maximum internal memory64 GB

Storage controllers

Supported storage drive interfacesM.2

Graphics

Maximum graphics card memory512 MB
Parallel processing technology support2-Way CrossFireX
Graphics card familyIntel
Maximum resolution4096 x 2160 pixels

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 3.2 Gen 2 (3.1 Gen 2) connectors0
Number of SATA III connectors6
Number of SATA II connectors0
Number of Parallel ATA connectors0
S/PDIF out connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors3
EPS power connector (8-pin)Yes
Serial port headers1
TPM connectorYes
Thunderbolt headers1

Rear panel I/O ports

USB 2.0 ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity0
HDMI ports quantity1
HDMI version1.4
DVI-D ports quantity1
Headphone outputs1
Microphone inYes
S/PDIF out portYes

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyIntel
Motherboard chipsetIntel® B150
Audio chipRealtek ALC1150
Audio output channels7.1 channels
PC health monitoringCPU, Fan, Temperature, Voltage
Cooling typePassive
Power source typeATX

Expansion slots

PCI Express x1 (Gen 3.x) slots2
PCI Express x16 (Gen 3.x) slots2
Number of M.2 (M) slots1

BIOS

BIOS typeUEFI AMI
BIOS memory size64 Mbit
ACPI version5.0
Clear CMOS jumperYes

Weight & dimensions

Width305 mm
Depth225 mm

Other features

Number of SATA Express ports1
Serial port via internal headerYes
