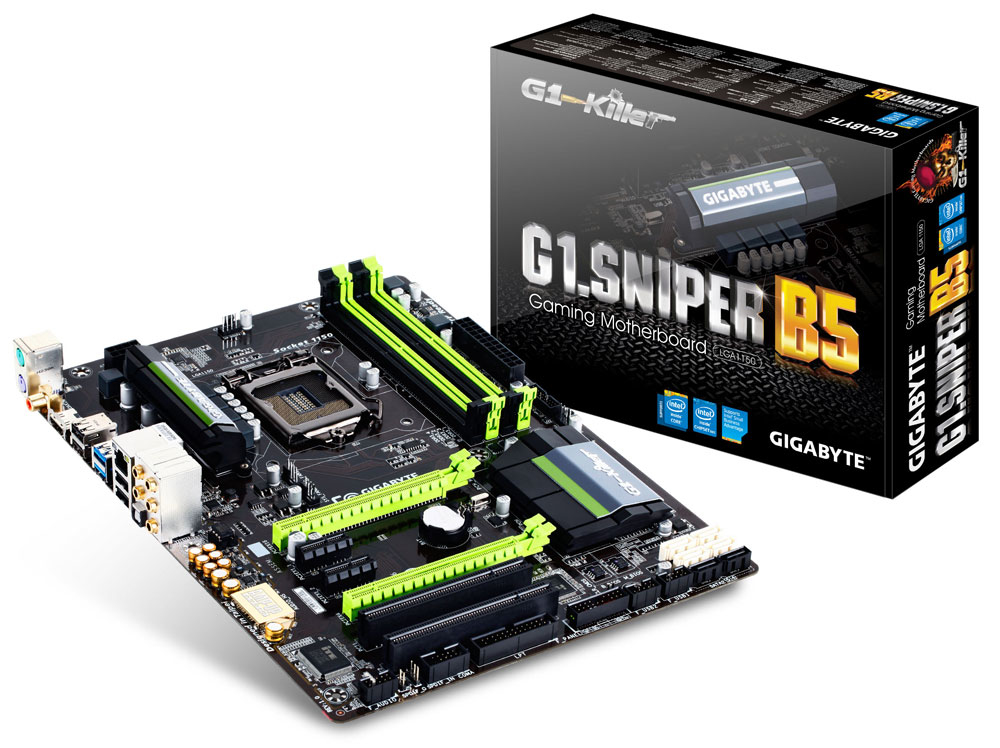

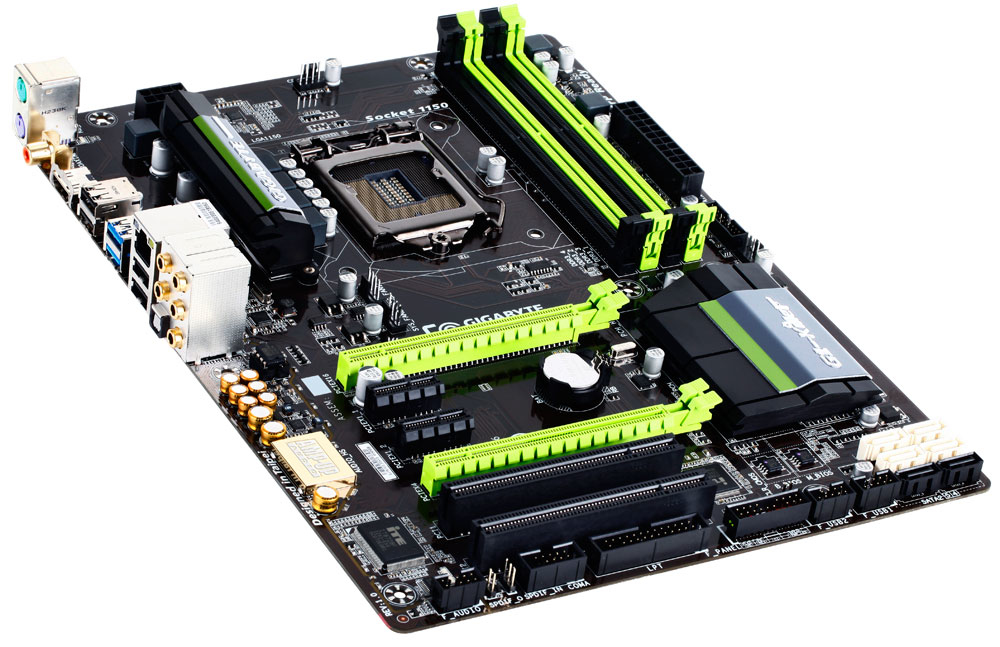

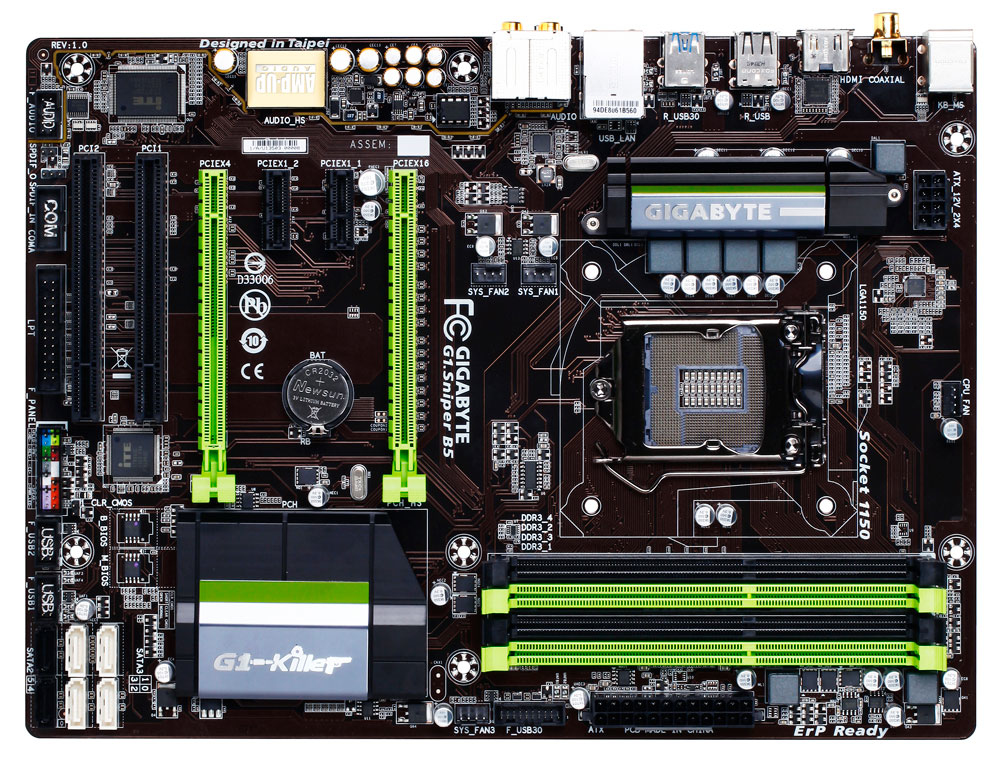

GIGABYTE G1.Sniper B5

GIGABYTE G1.Sniper B5

Model G1.Sniper B5Part no. G1.SNIPER B5EAN 818313017185

66 specifications
  • Memory32 GB
  • Processor manufacturerIntel
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA II, SATA III
  • Maximum graphics card memory1024 MB
  • USB 2.0 connectors2
See all specifications

Overview

Memory
32 GB
Processor manufacturer
Intel
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA II, SATA III
Maximum graphics card memory
1024 MB
USB 2.0 connectors
2
Brand
GIGABYTE
Category
Motherboard
Model
G1.Sniper B5
Part number
G1.SNIPER B5
EAN / UPC
818313017185, 4719331823313
Also known as
GIGABYTE G1.Sniper B5 Intel® B85 LGA 1150 (Socket H3) ATX

Specifications

66 specifications in 12 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1150 (Socket H3)
Compatible processor seriesIntel® Celeron®, Intel® Pentium®

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
Memory voltage1.5 V
ECC сompatibilityNon-ECC
Internal memory32 GB
Supported memory clock speeds1333,1600 MHz

Storage controllers

Supported storage drive interfacesSATA II, SATA III

Graphics

Maximum graphics card memory1024 MB
Parallel processing technology support2-Way CrossFireX
Maximum resolution4096 x 2160 pixels

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
Number of SATA III connectors4
Number of SATA II connectors2
Number of SATA connectors6
Number of Parallel ATA connectors0
S/PDIF out connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
Number of EATX power connectors1
Power fan connectorYes
CPU fan connectorYes
Number of chassis fan connectors3
Number of COM connectors1
Parallel connectorYes

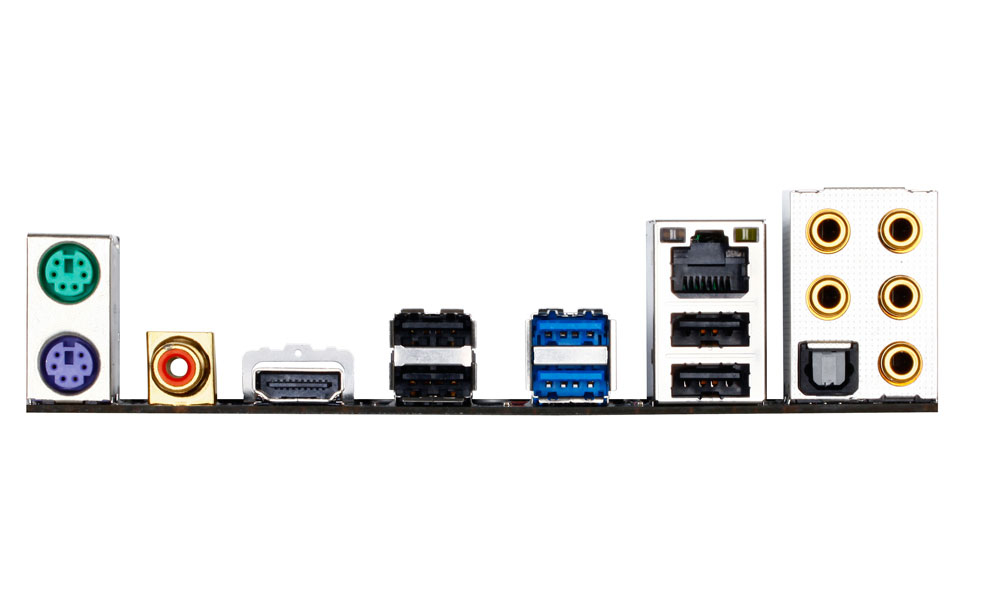

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity2
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity0
HDMI ports quantity1
HDMI version1.4a
DVI-D ports quantity0
Headphone outputs1
Microphone inYes
S/PDIF out portYes
Digital audio optical out1
Parallel ports quantity1

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyIntel
Motherboard chipsetIntel® B85
Audio chipRealtek ALC898
Audio output channels7.1 channels
Power source typeATX
Windows operating systems supportedWindows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Win

Expansion slots

PCI Express x1 (Gen 2.x) slots2
PCI Express x16 (Gen 2.x) slots1
PCI Express x16 (Gen 3.x) slots1
PCI slots2

BIOS

BIOS typeEFI AMI
BIOS memory size128 Mbit
ACPI version2.0a
Clear CMOS jumperYes

Weight & dimensions

Width305 mm
Depth225 mm

Other features

S/PDIF in connectorYes
