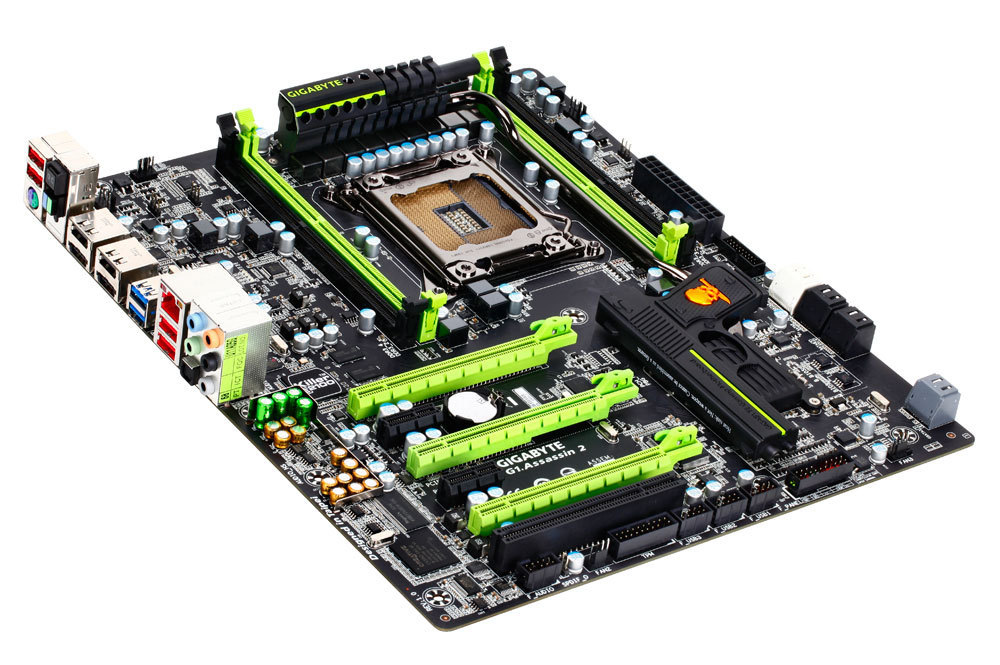

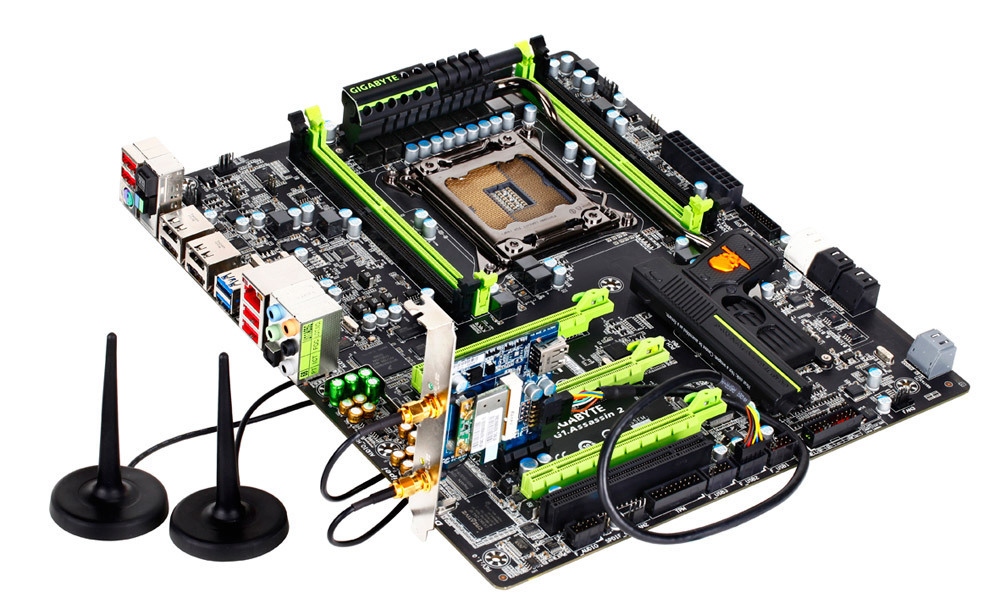

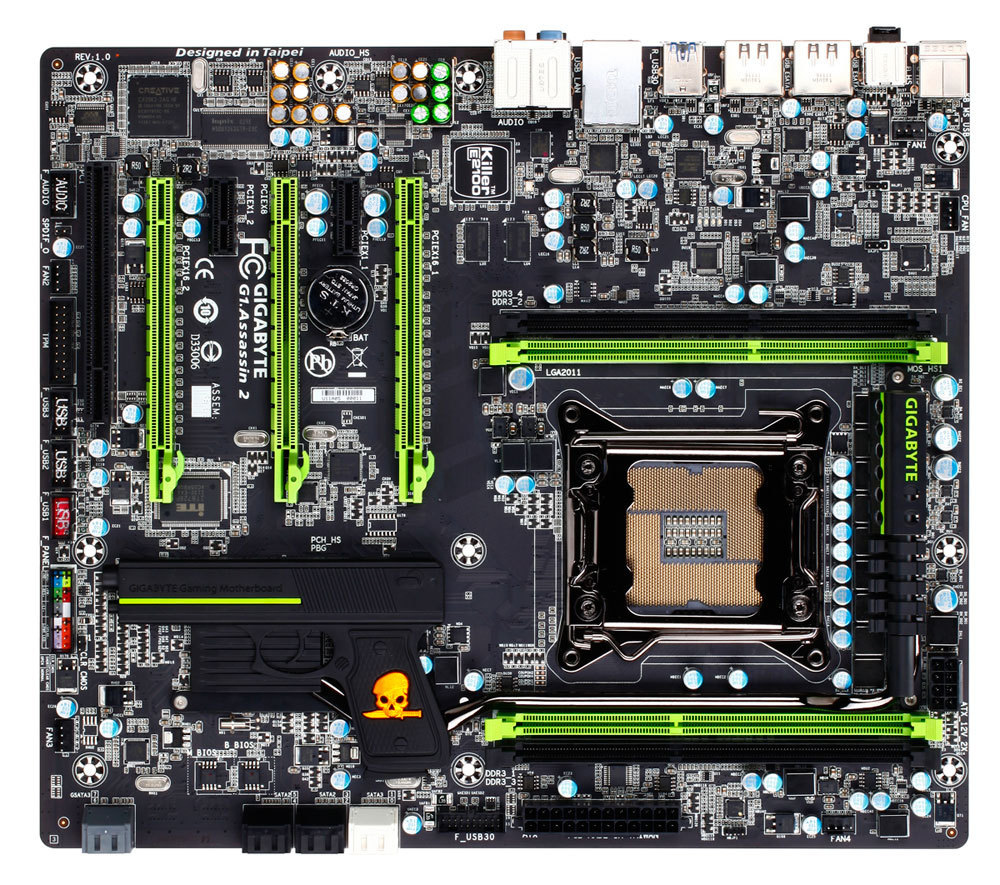

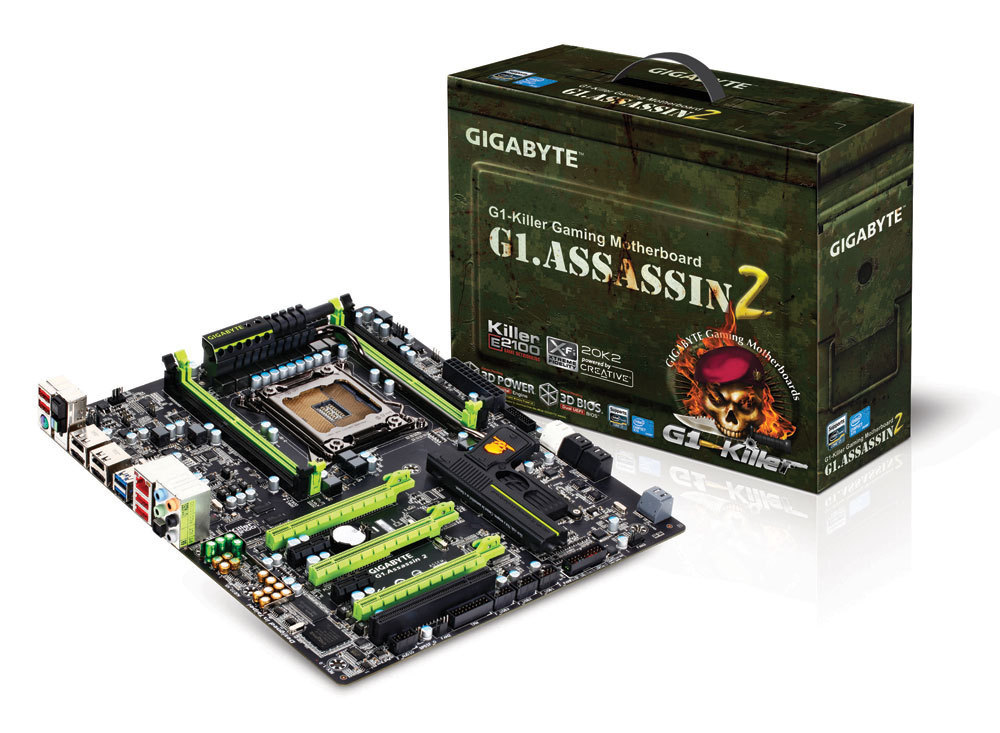

GIGABYTE G1.Assassin 2 (rev. 1.0)
Model G1.Assassin 2 (rev. 1.0)Part no. G1.ASSASSIN 2EAN 818313013972
65 specifications
- Processor manufacturerIntel
- Supported memory typesDDR3-SDRAM
- Supported storage drive interfacesSATA II, SATA III
- Parallel processing technology support2-Way SLI, 3-Way SLI
- USB 2.0 connectors3
- USB 2.0 ports quantity6
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR3-SDRAM
- Supported storage drive interfaces
- SATA II, SATA III
- Parallel processing technology support
- 2-Way SLI, 3-Way SLI
- USB 2.0 connectors
- 3
- USB 2.0 ports quantity
- 6
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- G1.Assassin 2 (rev. 1.0)
- Part number
- G1.ASSASSIN 2
- EAN / UPC
- 818313013972, 4054318201334, 4719331843366, 8183130139726
- Also known as
- GIGABYTE G1.Assassin 2 (rev. 1.0) LGA 2011 (Socket R) Extended ATX
Specifications
65 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 2011 (Socket R) |
| Compatible processor series | Intel® Core™ i7 |
| Maximum number of SMP processors | 1 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR3-SDRAM |
| Number of memory slots | 4 |
| Memory channels | Quad-channel |
| Memory voltage | 1.5 V |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 1066,1333,1600,1866,2133 MHz |
| Maximum internal memory | 32 GB |
| Supported memory module capacities | 1GB, 2GB, 4GB, 8GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA II, SATA III |
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | 2-Way SLI, 3-Way SLI |
| On-board graphics card | No |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| Number of SATA II connectors | 4 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 4 |
| Chassis intrusion connector | Yes |
| EPS power connector (8-pin) | Yes |
| TPM connector | Yes |

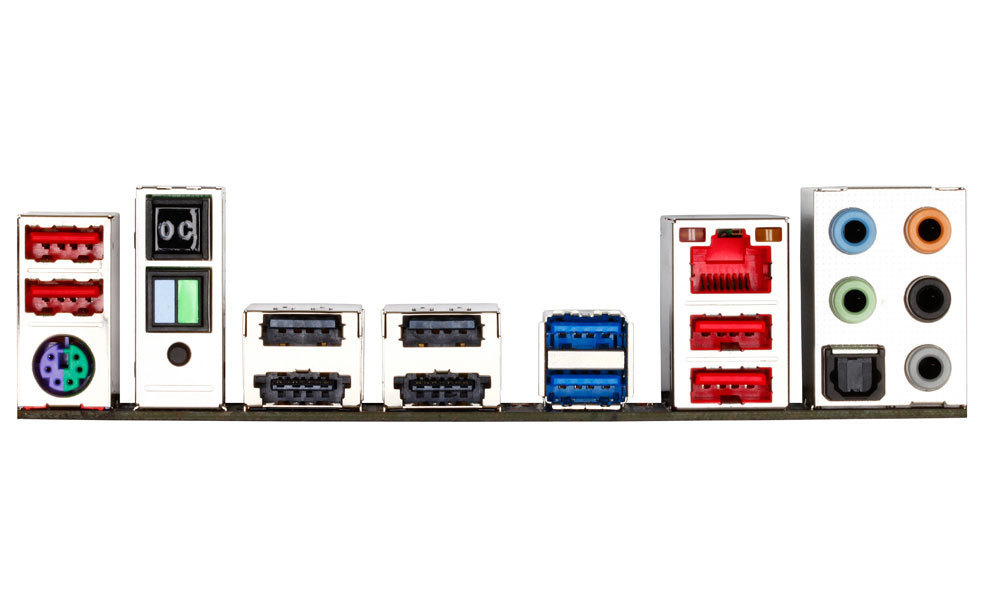

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 2 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 5 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Bigfoot Killer E2100 |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | Extended ATX |
| Motherboard chipset family | Intel |
| Audio chip | Creative CA20K2 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Compatible operating systems | Microsoft Windows 7/Vista/XP |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 2 |
| PCI Express x16 slots | 3 |
| PCI Express slots version | 3.0 |
| PCI slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | EFI |
| BIOS memory size | 128 Mbit |
| ACPI version | 2.0a |
| Clear CMOS button | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 264 mm |
| Depth | 305 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | SATA |
| Drivers included | Yes |
| Trial software | Norton Internet Security |
Other features
| Specification | Value |
|---|---|
| Controller 2nd interface type | 2 x Marvell 88SE9172 |
| Controller interface type | Intel X79 |
What people say
Reviews & ratings
GIGABYTE G1.Assassin 2 (rev. 1.0)
No reviews yet
Be the first to tell others how GIGABYTE G1.Assassin 2 (rev. 1.0) works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare GIGABYTE G1.Assassin 2 (rev. 1.0)
All motherboard comparisons- GIGABYTE G1.Assassin 2 (rev. 1.0) vsGIGABYTE GA-H61M-S2PV motherboard Intel® H61 LGA 1155 (Socket H2) micro ATXCompare specs

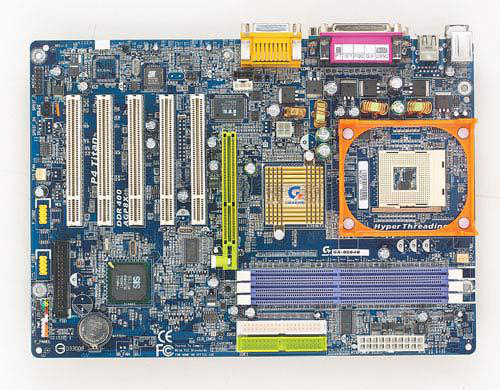

- GIGABYTE G1.Assassin 2 (rev. 1.0) vsGIGABYTE GA-8S648 motherboard Socket 478 ATXCompare specs
- GIGABYTE G1.Assassin 2 (rev. 1.0) vsGIGABYTE GA-H61M-D2H motherboard Intel® H61 LGA 1155 (Socket H2) micro ATXCompare specs
- GIGABYTE G1.Assassin 2 (rev. 1.0) vsGIGABYTE GA-H61M-D2H-USB3 motherboard Intel® H61 LGA 1155 (Socket H2) micro ATXCompare specs
- GIGABYTE G1.Assassin 2 (rev. 1.0) vsASUS Rampage IV FormulaCompare specs

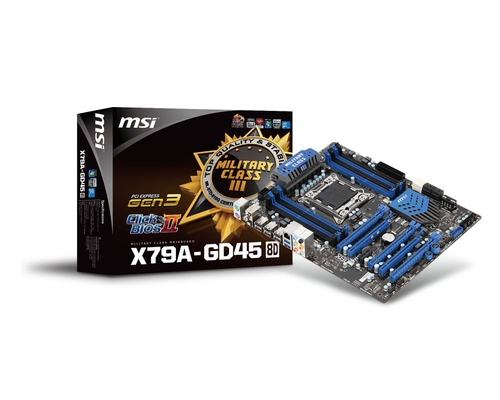

- GIGABYTE G1.Assassin 2 (rev. 1.0) vsMSI X79A-GD45 (8D)Compare specs
