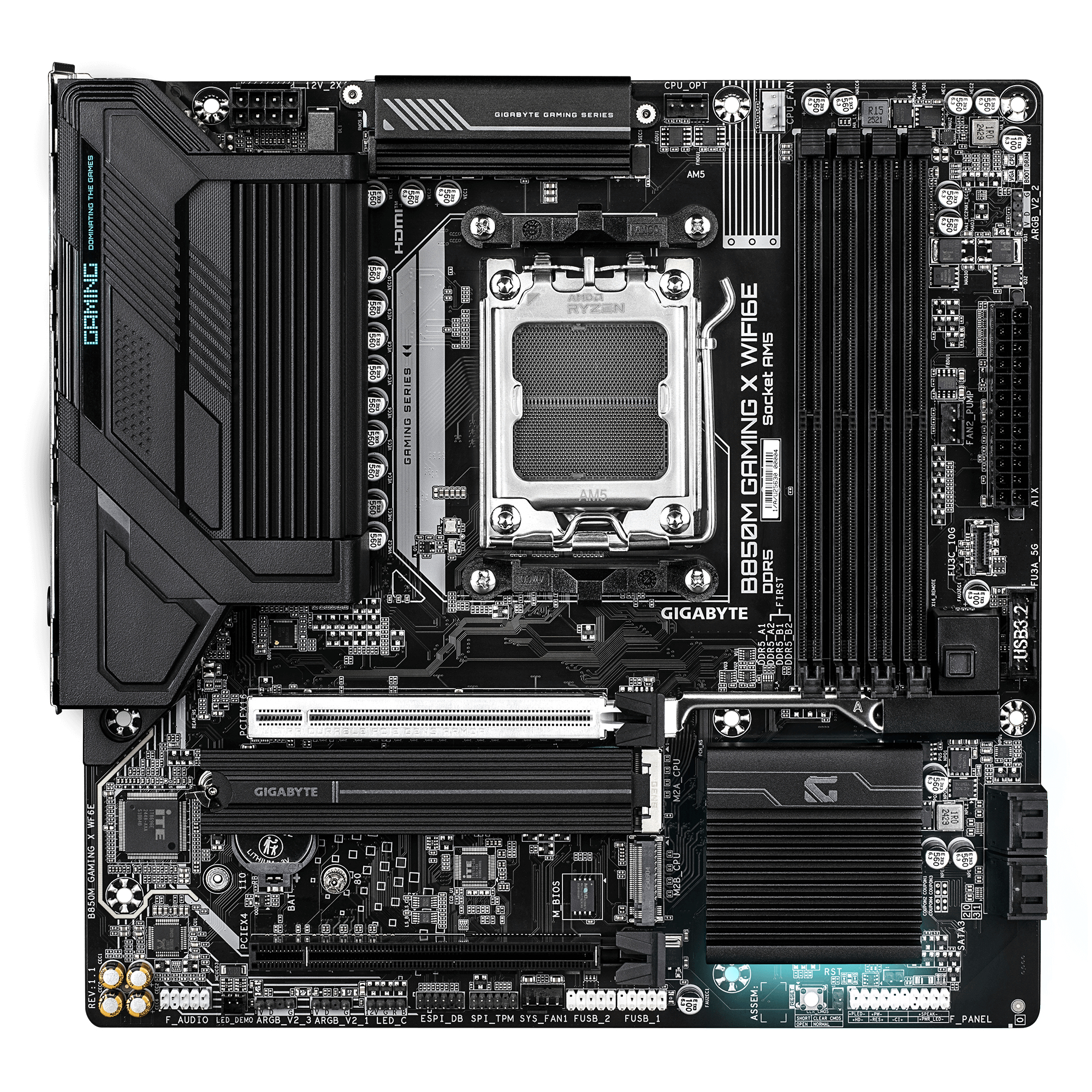

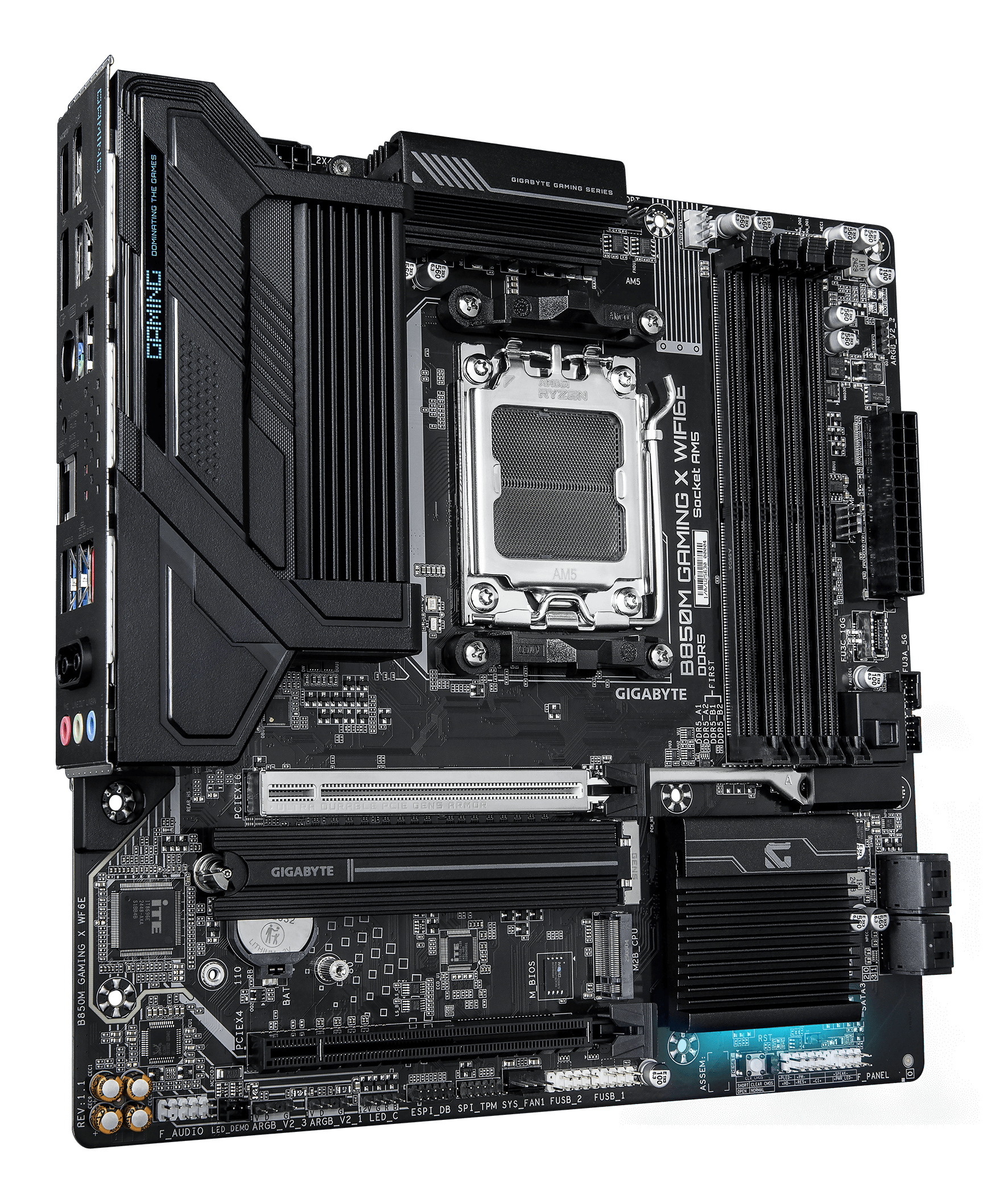

GIGABYTE B850M GAMING X WIFI6E (rev. 1.1)

GIGABYTE B850M GAMING X WIFI6E (rev. 1.1)

Model B850M GAMING X WIFI6E (rev. 1.1)Part no. B850M GAMING X WF6E 1.1

92 specifications
  • SpeedWi-Fi 6E (802.11ax)
  • ColourBlack
  • Processor manufacturerAMD
  • Supported memory typesDDR5-SDRAM
  • Supported storage drive typesHDD & SSD
  • Parallel processing technology supportNot supported
See all specifications

Overview

Speed
Wi-Fi 6E (802.11ax)
Colour
Black
Processor manufacturer
AMD
Supported memory types
DDR5-SDRAM
Supported storage drive types
HDD & SSD
Parallel processing technology support
Not supported
Brand
GIGABYTE
Category
Motherboard
Model
B850M GAMING X WIFI6E (rev. 1.1)
Part number
B850M GAMING X WF6E 1.1
Also known as
GIGABYTE B850M GAMING X WIFI6E (rev. 1.1) AMD B850 Socket AM5 micro ATX

Specifications

92 specifications in 12 groups

Processor

Processor manufacturerAMD
Processor socketSocket AM5
Compatible processor seriesAMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported processor socketsSocket AM5

Memory

Supported memory typesDDR5-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds4400,4800,5200,5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600,7800,7900,7950,8000,8200 MHz
Supported memory clock speed (max)8200 MHz
Maximum internal memory256 GB
Unbuffered memoryYes
Maximum internal memory per slot64 GB

Storage controllers

Supported storage drive typesHDD & SSD
Supported storage drive interfacesPCI Express 4.0, PCI Express 5.0, SATA III
Number of storage drives supported6
RAID supportYes
RAID levels0, 1, 5, 10

Graphics

Parallel processing technology supportNot supported
Maximum resolution4096 x 2160 pixels
HDCPYes
HDCP version2.3
High Dynamic Range (HDR) supportedYes
Number of displays supported3

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
Number of SATA III connectors4
Front panel audio connectorYes
Front panel connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of CPU fan connectors1
Number of chassis fan connectors2
12V power connectorYes
Number of water pump connectors1
TPM connectorYes
RGB LED pin headerYes
Number of RGB LED pin headers4

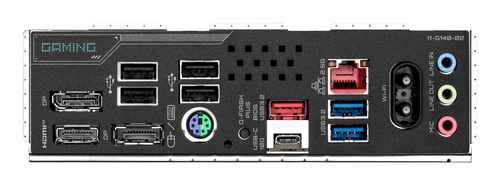

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
Ethernet LAN (RJ-45) ports1
PS/2 ports quantity1
VGA (D-Sub) ports quantity0
HDMI ports quantity1
HDMI version2.1
DVI-D ports quantity0
DisplayPorts quantity2
DisplayPort version1.4
Headphone outputs3
Microphone inYes
WiFi-AP antenna jack2
USB connector typeUSB Type-A, USB Type-C

Network

Ethernet LANYes
Ethernet interface type2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Wi-FiYes
Top Wi-Fi standardWi-Fi 6E (802.11ax)
Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
WLAN controller modelRealtek RTL8852CE
BluetoothYes
Bluetooth version5.3

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyAMD
Motherboard chipsetAMD B850
Audio output channels7.1 channels
Product colourBlack
PC health monitoringFan, Temperature, Voltage, Water cooling
Windows operating systems supportedWindows 10 x64, Windows 11 x64

Expansion slots

PCI Express x16 slots1
PCI Express x16 (Gen 3.x) slots1
Number of M.2 (M) slots2
1st M.2 largest key size25110
1st M.2 highest PCI Express generation5.0
2nd M.2 largest key size22110
2nd M.2 highest PCI Express generation4.0

BIOS

BIOS typeUEFI AMI
BIOS memory size256 Mbit
ACPI version5.0
Clear CMOS jumperYes
Desktop Management Interface (DMI) version2.7
System Management BIOS (SMBIOS) version2.7

Weight & dimensions

Width244 mm
Depth244 mm

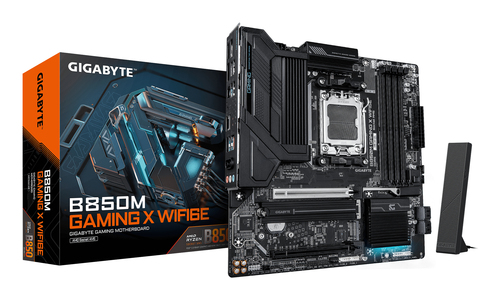

Packaging content

Antenna includedYes
Cables includedSATA
Screws includedYes
Bundled softwareNorton Internet Security
