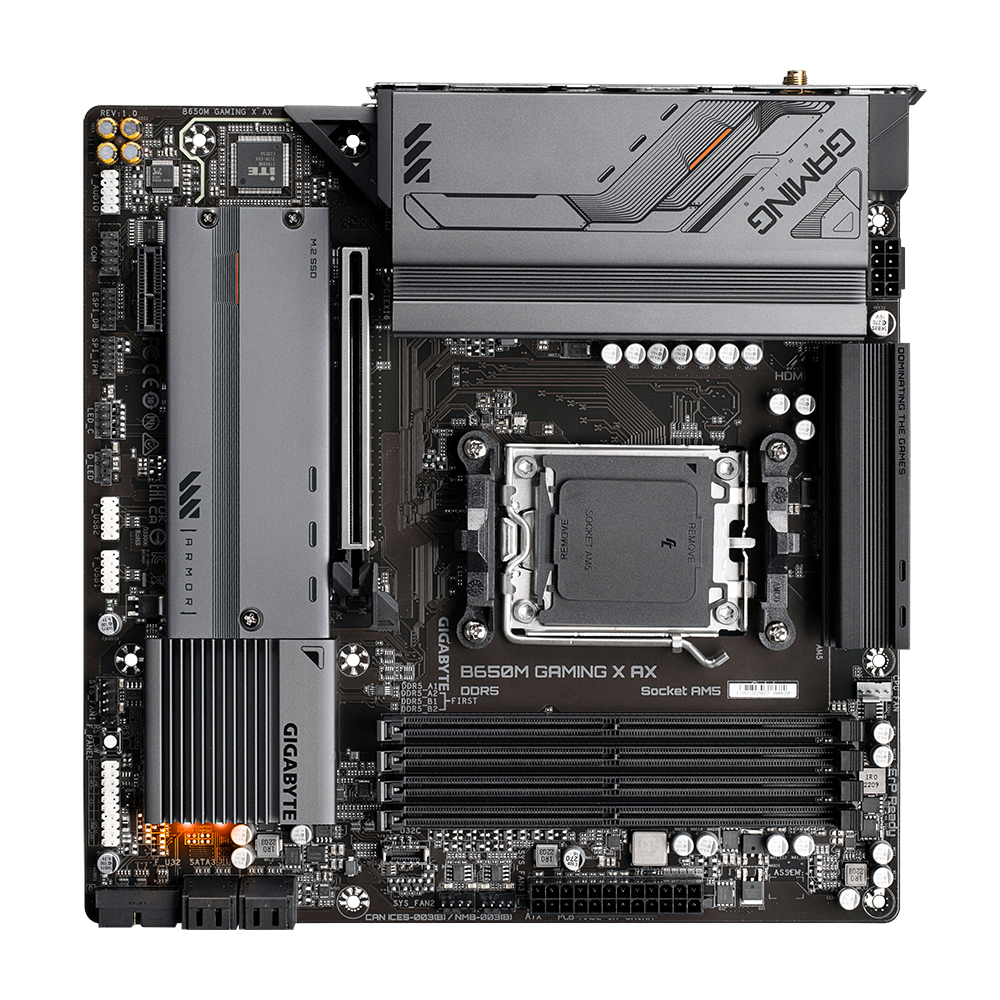

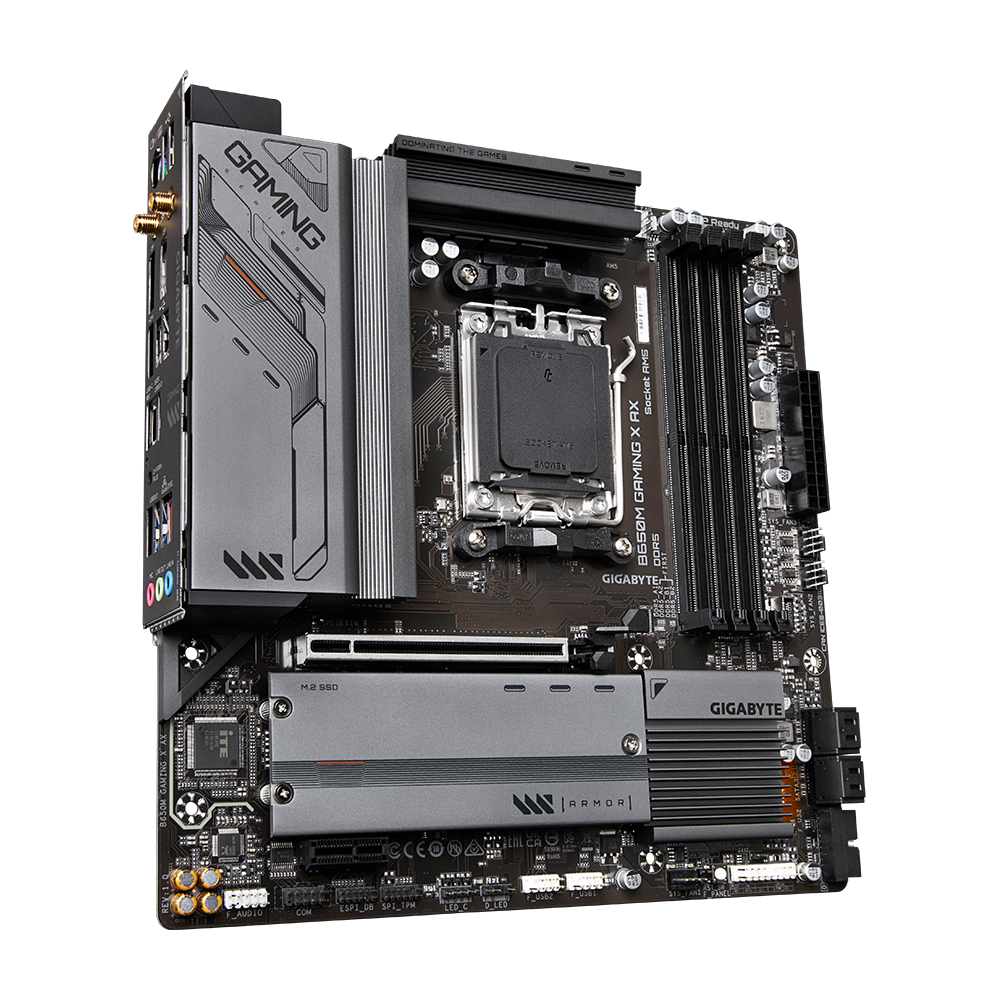

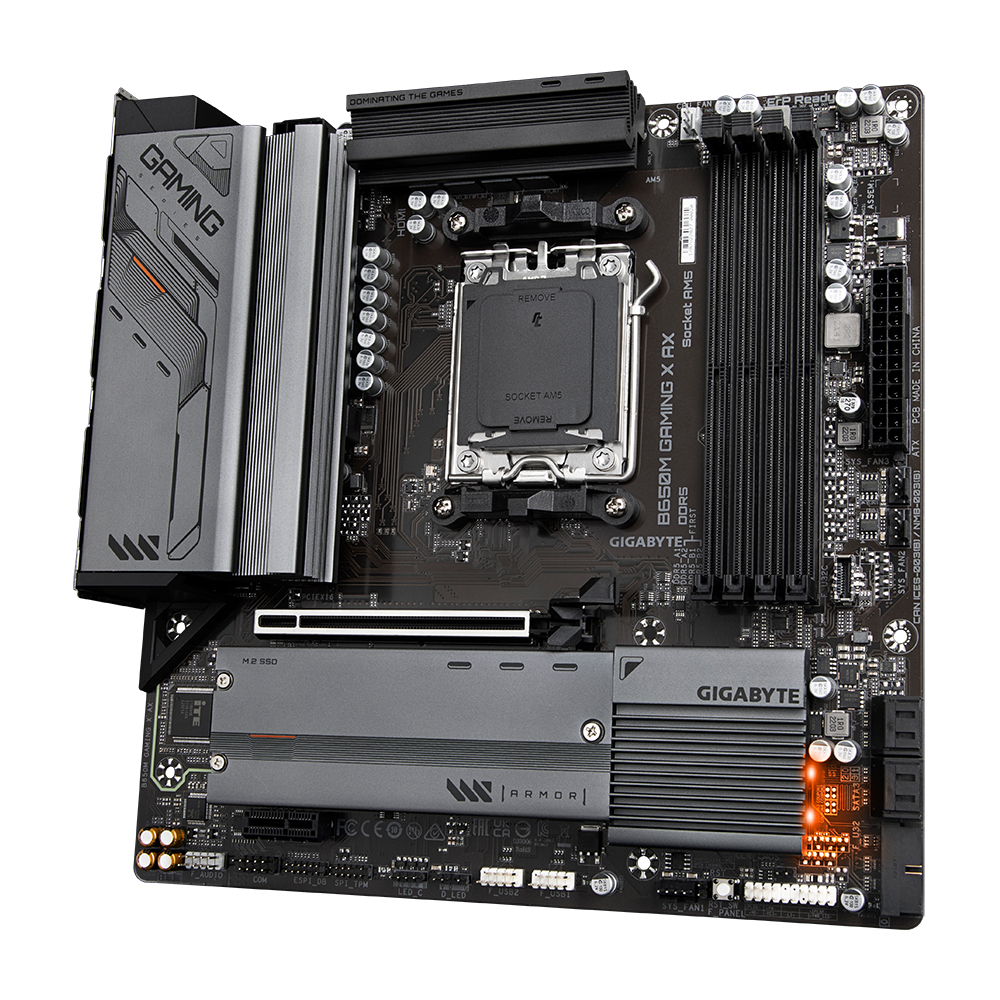

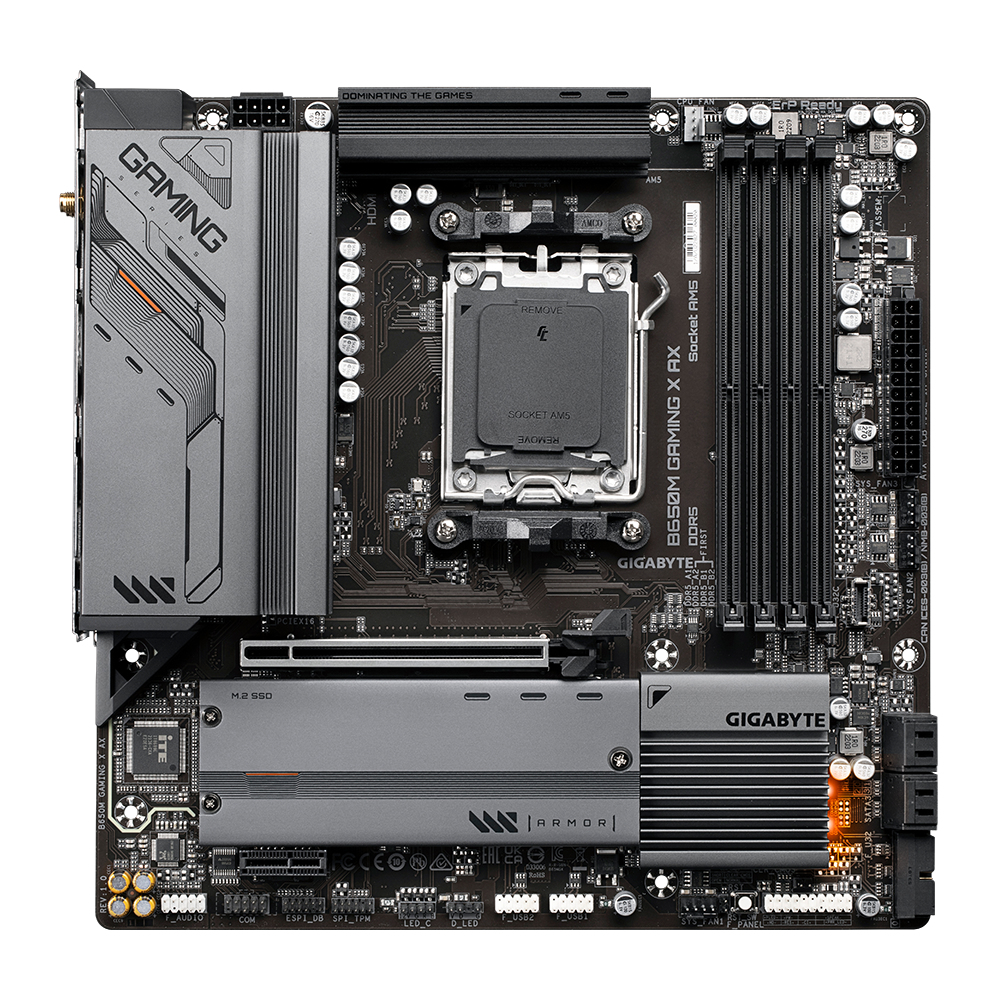

GIGABYTE B650M GAMING X AX

GIGABYTE B650M GAMING X AX

Model B650M GAMING X AXEAN 889523034170

110 specifications
  • SpeedWi-Fi 6E (802.11ax)
  • ColourBrown
  • Processor manufacturerAMD
  • Supported memory typesDDR5-SDRAM
  • Supported storage drive typesHDD & SSD
  • Parallel processing technology supportNot supported
See all specifications

Overview

Speed
Wi-Fi 6E (802.11ax)
Colour
Brown
Processor manufacturer
AMD
Supported memory types
DDR5-SDRAM
Supported storage drive types
HDD & SSD
Parallel processing technology support
Not supported
Brand
GIGABYTE
Category
Motherboard
Model
B650M GAMING X AX
Part number
B650M GAMING X AX
EAN / UPC
889523034170, 4719331849993
Also known as
GIGABYTE B650M GAMING X AX Motherboard - AMD Ryzen 9000 Series CPUs, 6+2+1 Phases VRM, up to 8000MHz DDR5 (OC), 2xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, USB 3.2 Gen

Specifications

110 specifications in 16 groups

Processor

Processor manufacturerAMD
Processor socketSocket AM5
Compatible processor seriesAMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported processor socketsSocket AM5

Memory

Supported memory typesDDR5-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds4800,5200,5600,6000,6200,6400,6600,6800,7000,7200,7600,7800,8000 MHz
Supported memory clock speed (max)8000 MHz
Maximum internal memory256 GB
Unbuffered memoryYes
Maximum internal memory per slot64 GB

Storage controllers

Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2, SATA III
Number of HDDs supported4
Number of storage drives supported6
RAID supportYes
RAID levels0, 1, 10

Graphics

Parallel processing technology supportNot supported
Maximum resolution4096 x 2160 pixels
HDCPYes
DirectX version12.0
Discrete graphics supportYes

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
Number of SATA III connectors4
Front panel audio connectorYes
Front panel connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of CPU fan connectors1
Number of chassis fan connectors3
EPS power connector (8-pin)Yes
Number of EPS power connectors (8-pin)1
12V power connectorYes
Serial port headers1
TPM connectorYes
RGB LED pin headerYes
Number of RGB LED pin headers3

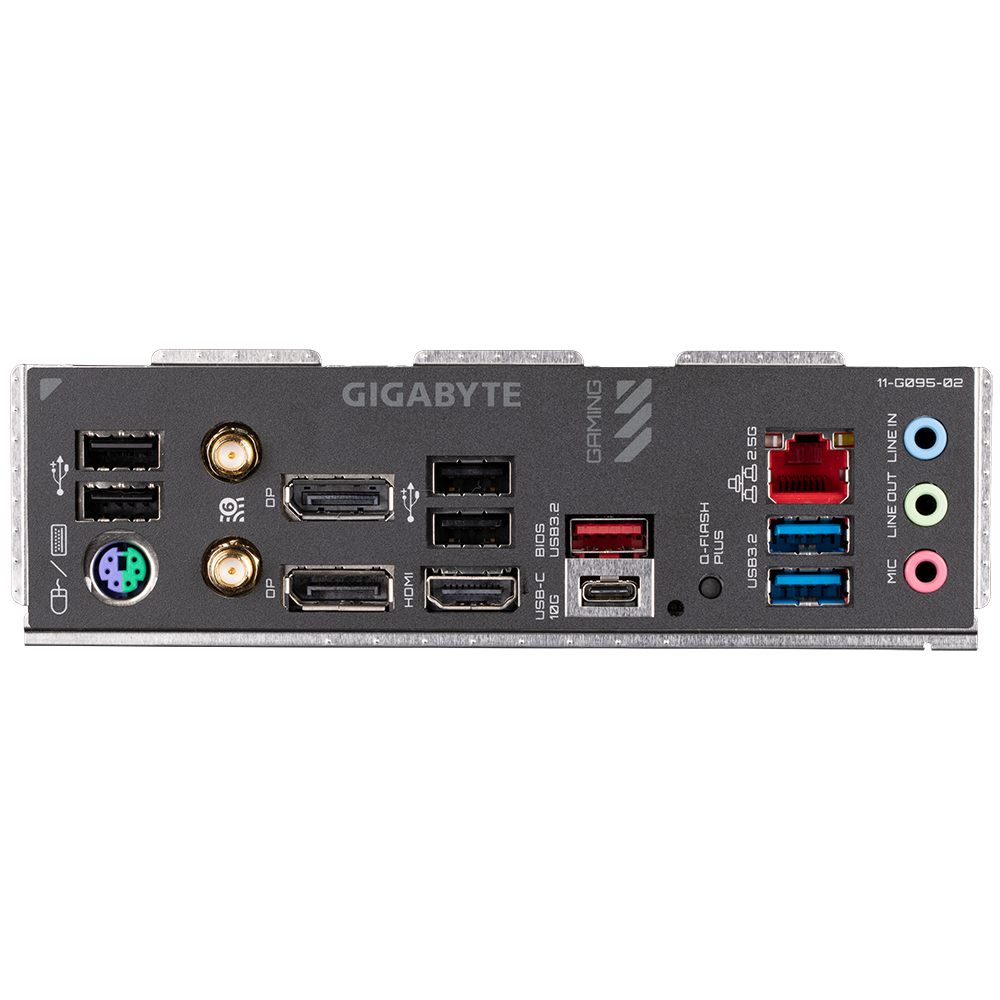

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
Ethernet LAN (RJ-45) ports1
PS/2 ports quantity1
VGA (D-Sub) ports quantity0
HDMI ports quantity1
HDMI version2.1
DVI-D ports quantity0
DisplayPorts quantity2
DisplayPort version1.4
Headphone outputs1
Line-inYes
Microphone inYes
WiFi-AP antenna jack2

Network

Ethernet LANYes
Ethernet interface type2.5 Gigabit Ethernet
LAN controllerRealtek RTL8125
Wi-FiYes
Top Wi-Fi standardWi-Fi 6E (802.11ax)
Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
WLAN controller modelRealtek RTL8852CE
BluetoothYes
Bluetooth version5.3

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyAMD
Motherboard chipsetAMD B650
Audio chipRealtek ALC897
Audio output channels7.1 channels
Product colourBrown
PC health monitoringFan, Temperature, Voltage
Power source typeATX
Windows operating systems supportedWindows 10 x64, Windows 11 x64

Expansion slots

PCI Express x1 (Gen 3.x) slots1
PCI Express x16 (Gen 4.x) slots1
Number of M.2 (M) slots2
1st M.2 largest key size25110
1st M.2 highest PCI Express generation4.0
2nd M.2 largest key size25110
2nd M.2 highest PCI Express generation4.0

BIOS

BIOS typeUEFI AMI
BIOS memory size256 Mbit
ACPI version5.0
Clear CMOS jumperYes
Desktop Management Interface (DMI) version2.7
System Management BIOS (SMBIOS) version2.7

Logistics data

Country of originChina
Products per shipping (inner) case1 pc(s)

Battery

Battery weight3 g
Lithium weight per battery0.07 g
Number of battery cells1
Battery technologyLithium-Manganese Dioxide (LiMnO2)
Battery typeCR2032

Packaging data

Package width270 mm
Package depth268 mm
Package height68 mm
Package weight1.9 kg

Weight & dimensions

Width244 mm
Depth244 mm
Height35 mm

Packaging content

Antenna includedYes
Batteries includedYes
Screws includedYes
Bundled softwareNorton® Internet Security (OEM version) LAN bandwidth management software

Technical details

Warranty period3 year(s)
