GIGABYTE B550M X AORUS ELITE
GIGABYTE

B550M X AORUS ELITE

Model B550M X AORUS ELITEPart no. B550M X A ELITEEAN 4719331883416

83 specifications
  • Battery220 mAh
  • Weight1.04 kg
  • ColourBlack
  • Processor manufacturerAMD
  • Supported memory typesDDR4-SDRAM
  • Supported storage drive typesHDD & SSD
See all specifications

Overview

Battery
220 mAh
Weight
1.04 kg
Colour
Black
Processor manufacturer
AMD
Supported memory types
DDR4-SDRAM
Supported storage drive types
HDD & SSD
Brand
GIGABYTE
Category
Motherboard
Model
B550M X AORUS ELITE
Part number
B550M X A ELITE
EAN / UPC
4719331883416
Also known as
GIGABYTE B550M X AORUS ELITE Motherboard

Specifications

83 specifications in 17 groups

Processor

Processor manufacturerAMD
Processor socketSocket AM4
Compatible processor seriesAMD Ryzen 5000 Series, AMD Ryzen 4000 Series, AMD Ryzen 3000 Series
Supported processor socketsSocket AM4

Memory

Supported memory typesDDR4-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityECC & Non-ECC
Supported memory clock speed (max)3200 MHz
Maximum internal memory128 GB
Unbuffered memoryYes
Maximum internal memory per slot32 GB

Storage controllers

Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2, PCI Express 4.0, PCI Express 3.0, SATA III
Number of HDDs supported4
Number of storage drives supported6
RAID supportYes
RAID levels0, 1, 10

Graphics

Parallel processing technology supportNot supported
DirectX version12.0

Internal I/O

USB 2.0 connectors1
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
USB 3.2 Gen 2 (3.1 Gen 2) connectors0
Number of SATA III connectors4
Front panel audio connectorYes
Front panel connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
TPM connectorYes

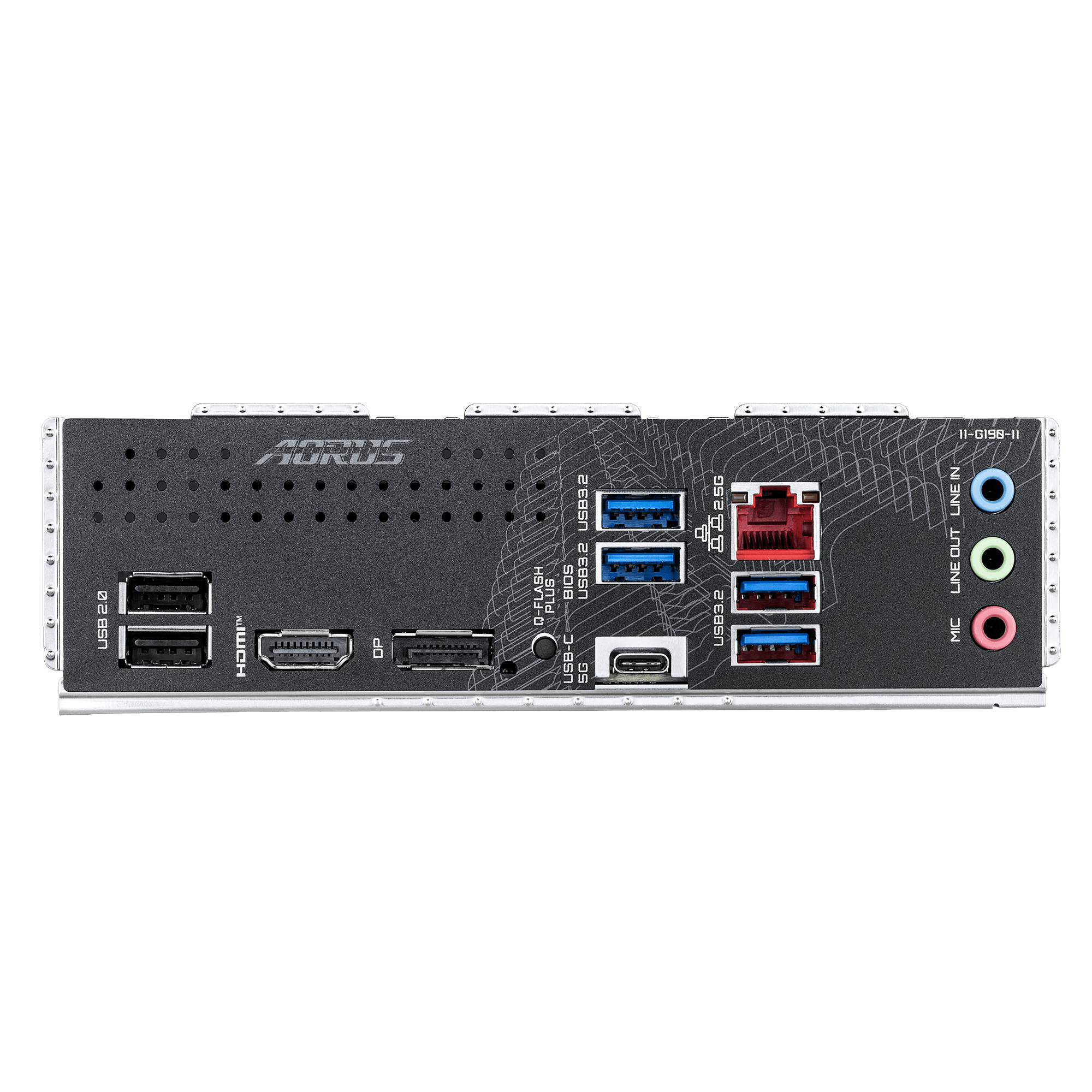

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0
Ethernet LAN (RJ-45) ports1
VGA (D-Sub) ports quantity0
HDMI ports quantity1
DVI-D ports quantity0
DisplayPorts quantity1
Headphone outputs1
Line-inYes
Microphone inYes

Network

Ethernet LANYes
Ethernet interface type2.5 Gigabit Ethernet
LAN controllerRealtek RTL8125
Wi-FiNo

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyAMD
Motherboard chipsetAMD B550
Audio chipRealtek ALC1220-VB
Audio output channels7.1 channels
Product colourBlack
Cooling typePassive
Power source typeATX

Expansion slots

PCI Express x4 slots1
PCI Express x16 (Gen 4.x) slots1
Number of M.2 (M) slots2
1st M.2 largest key size2280
1st M.2 highest PCI Express generation4.0
2nd M.2 largest key size2280
2nd M.2 highest PCI Express generation3.0

BIOS

BIOS typeUEFI AMI

Logistics data

Country of originChina
Products per shipping (inner) case1 pc(s)

Battery

Battery weight3 g
Lithium weight per battery0.07 g
Number of battery cells1
Battery capacity220 mAh
Battery technologyLithium-Manganese Dioxide (LiMnO2)
Battery typeCR2032

Packaging data

Package width270 mm
Package depth268 mm
Package height68 mm
Package weight2.26 kg

Weight & dimensions

Width244 mm
Depth244 mm
Height35 mm

Packaging content

Batteries includedYes
Screws includedYes

Other features

Weight1.04 kg

Technical details

Warranty period3 year(s)
