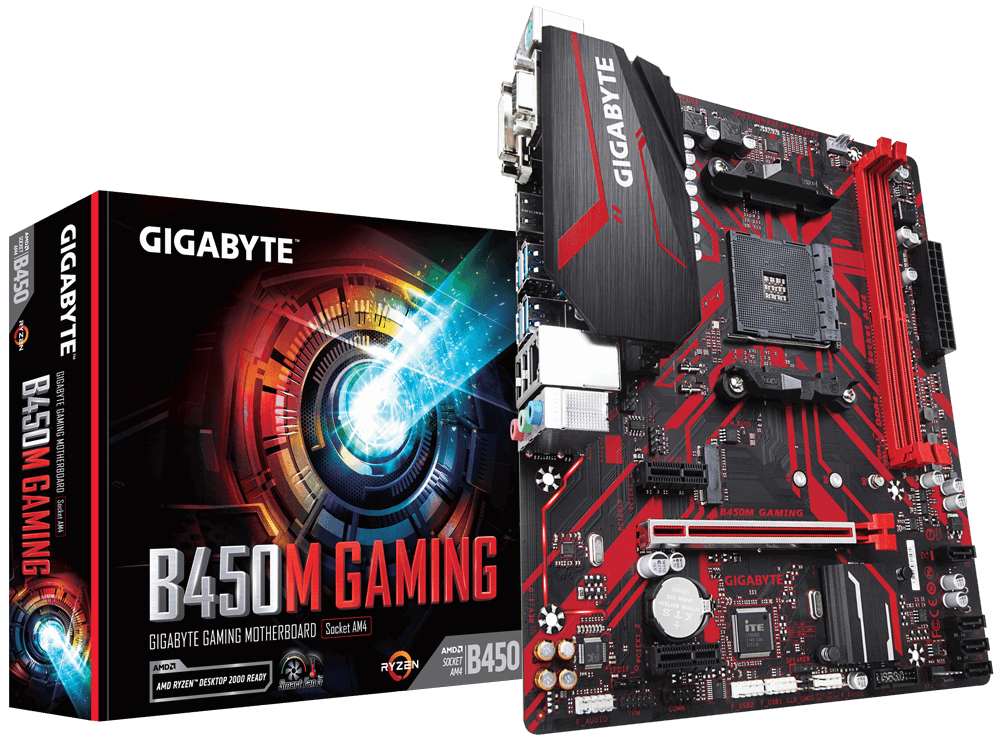

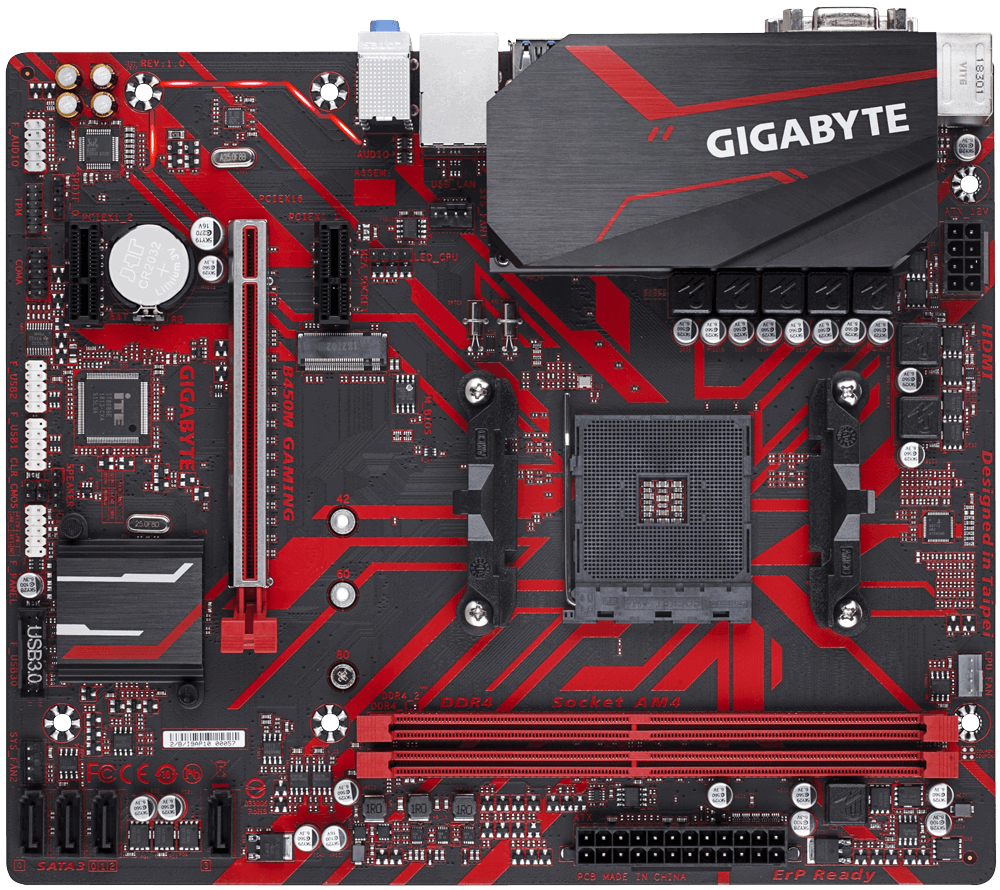

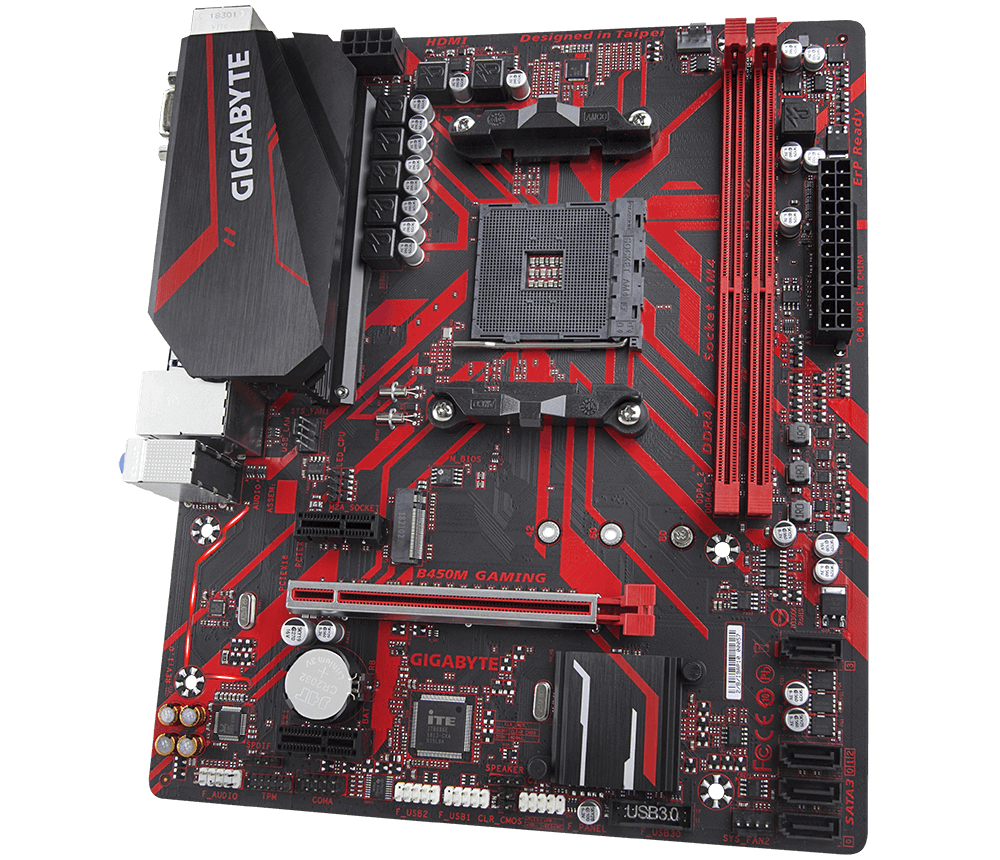

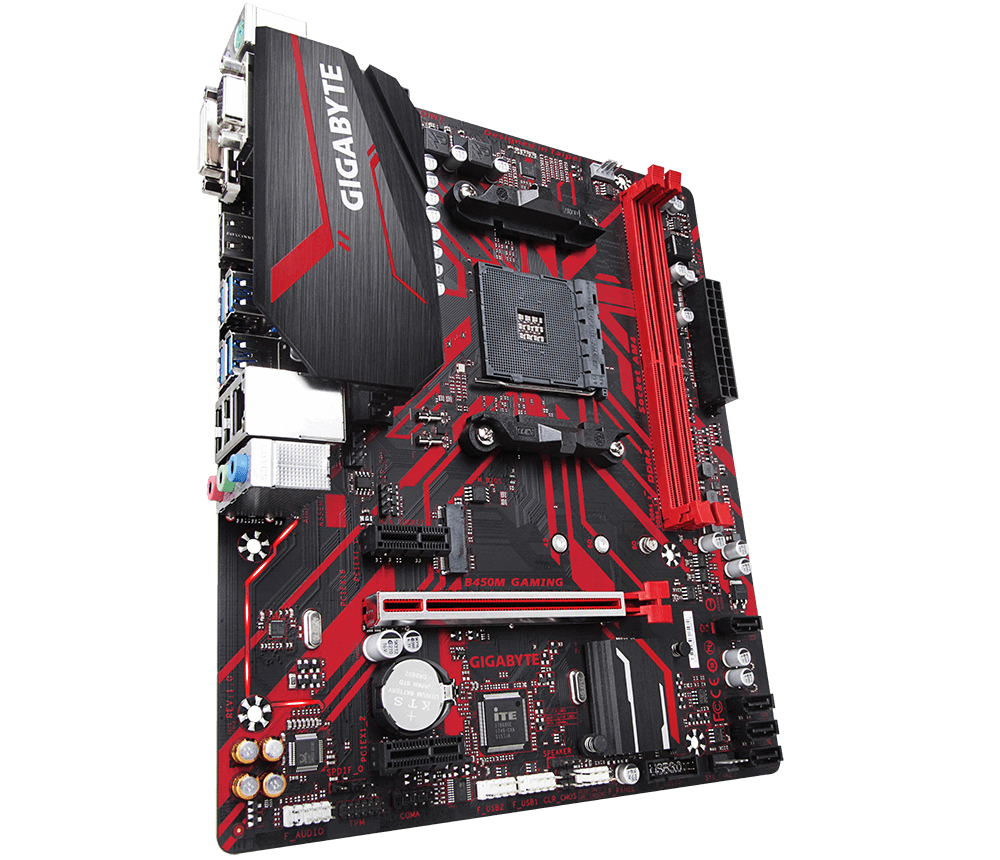

GIGABYTE B450M GAMING

GIGABYTE B450M GAMING

Model B450M GAMINGEAN 4719331804497

67 specifications
  • Processor manufacturerAMD
  • Supported memory typesDDR4-SDRAM
  • RAID levels0, 1, 10
  • On-board graphics cardYes
  • USB 2.0 connectors2
  • Component forMini PC
See all specifications

Overview

Processor manufacturer
AMD
Supported memory types
DDR4-SDRAM
RAID levels
0, 1, 10
On-board graphics card
Yes
USB 2.0 connectors
2
Component for
Mini PC
Brand
GIGABYTE
Category
Motherboard
Model
B450M GAMING
Part number
B450M GAMING
EAN / UPC
4719331804497, 5706998773074
Also known as
GIGABYTE B450M GAMING motherboard AMD B450 Socket AM4 micro ATX

Specifications

67 specifications in 12 groups

Processor

Processor manufacturerAMD
Processor socketSocket AM4
Compatible processor seriesAMD Athlon, AMD Ryzen 2000 Series, AMD Ryzen 3000 Series

Memory

Supported memory typesDDR4-SDRAM
Number of memory slots2
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityECC & Non-ECC
Supported memory clock speeds2133,2400,2667,2933 MHz
Maximum internal memory32 GB
Unbuffered memoryYes

Storage controllers

RAID levels0, 1, 10

Graphics

On-board graphics cardYes
Maximum resolution4096 x 2160 pixels
Discrete graphics supportYes

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 3.2 Gen 2 (3.1 Gen 2) connectors0
Number of SATA III connectors4
Number of SATA II connectors0
Number of Parallel ATA connectors0
S/PDIF out connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors2
Chassis intrusion connectorYes
EPS power connector (8-pin)Yes
Serial port headers1
TPM connectorYes
RGB LED pin headerYes

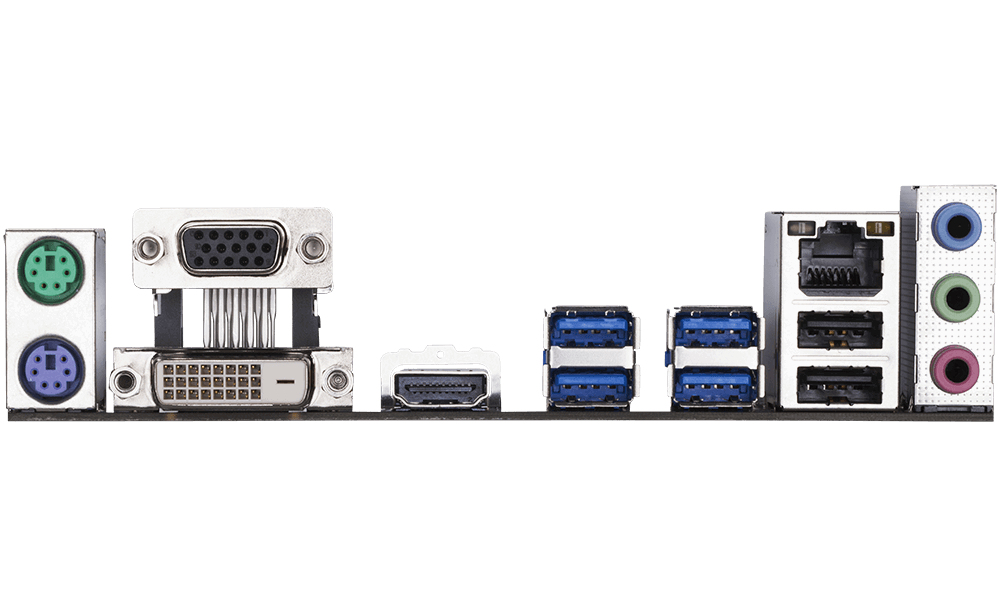

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity1
DVI-D ports quantity1
Headphone outputs3
S/PDIF out portYes

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet

Features

Component forMini PC
Motherboard form factormicro ATX
Motherboard chipset familyAMD
Motherboard chipsetAMD B450
Audio chipRealtek ALC887
Audio output channels7.1 channels
PC health monitoringFan, Temperature, Voltage
Windows operating systems supportedWindows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64

Expansion slots

PCI Express x1 (Gen 2.x) slots2
PCI Express x16 (Gen 3.x) slots1
Number of M.2 (M) slots1

BIOS

BIOS typeUEFI AMI
BIOS memory size128 Mbit
ACPI version5.0
Clear CMOS jumperYes
Desktop Management Interface (DMI) version2.7
Plug and PlayYes
System Management BIOS (SMBIOS) version2.7

Logistics data

Harmonized System (HS) code84733020

Weight & dimensions

Width244 mm
Depth205 mm
