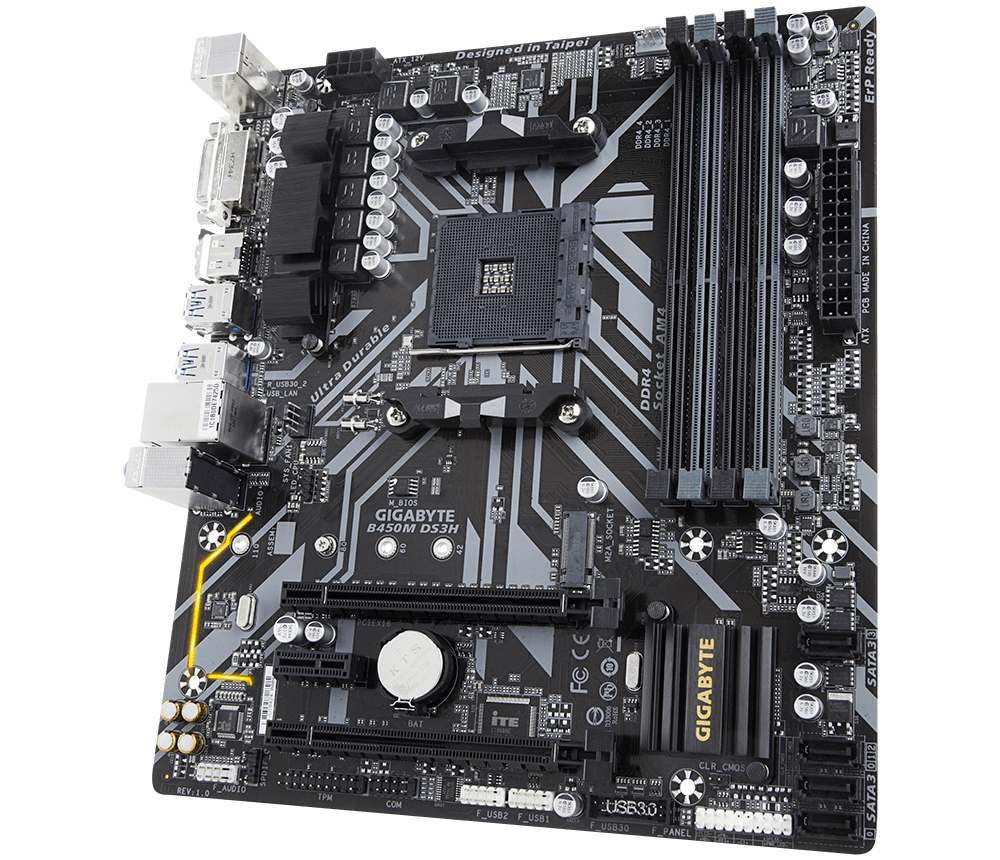

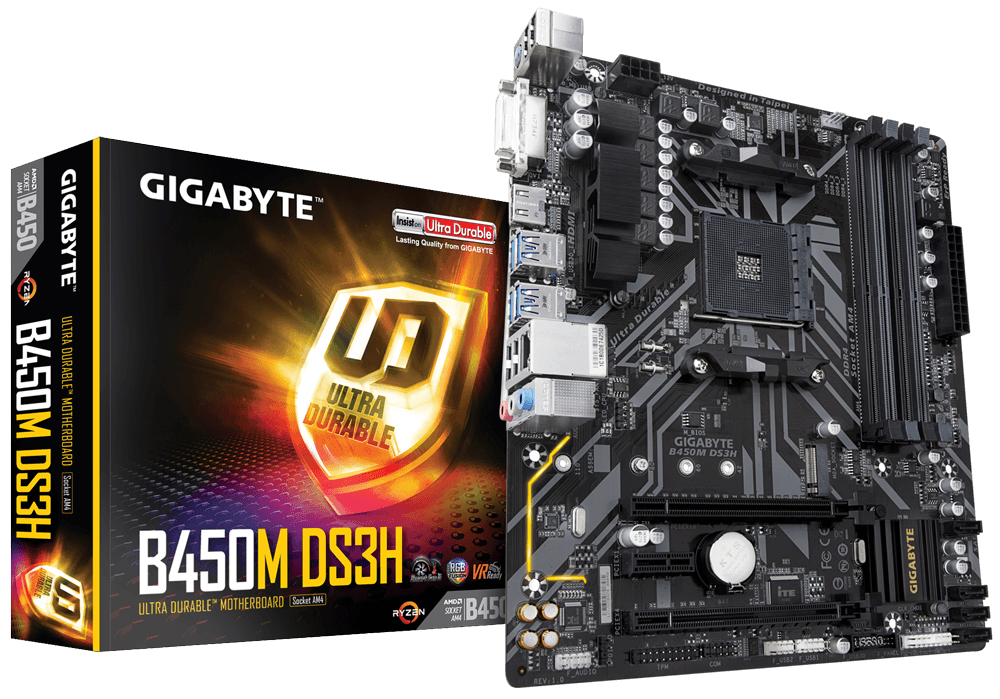

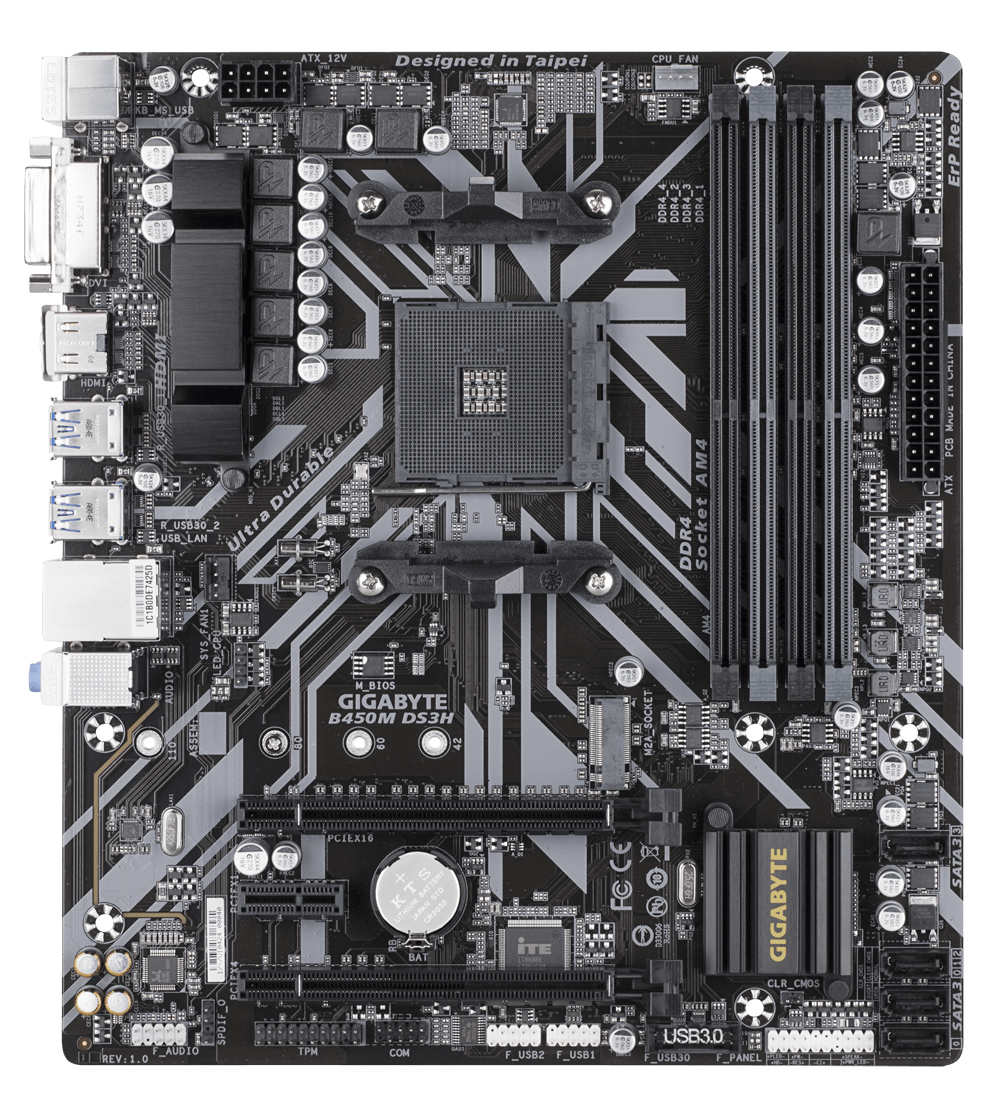

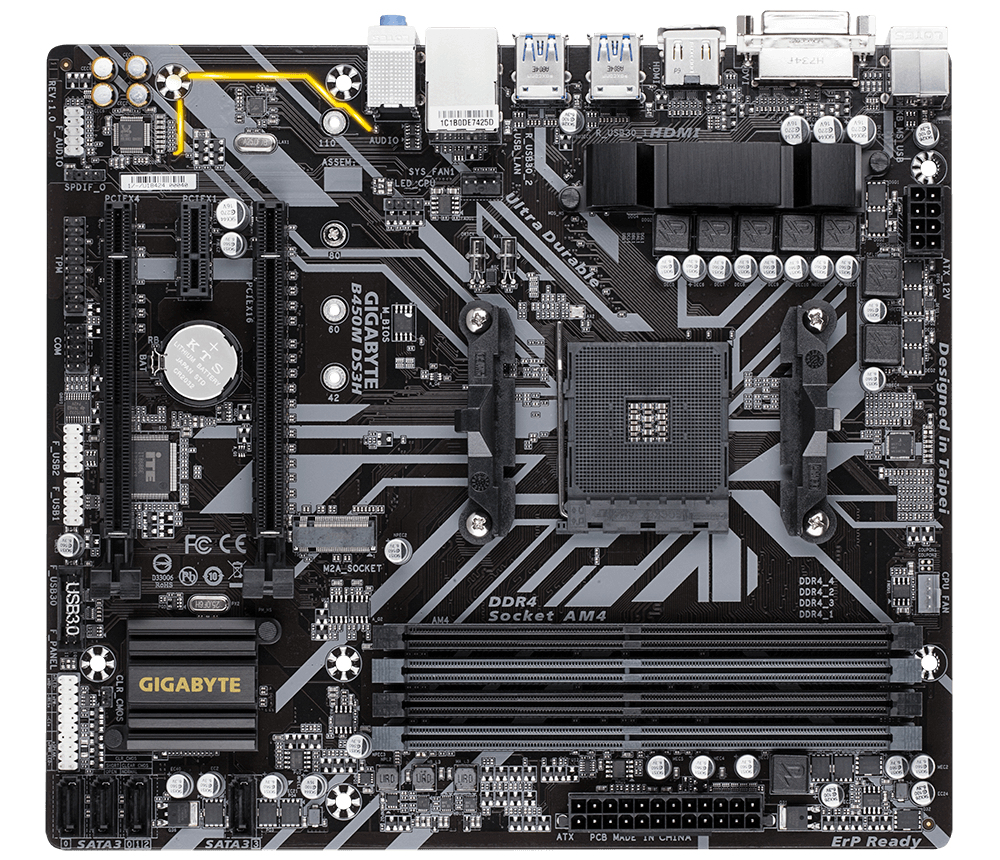

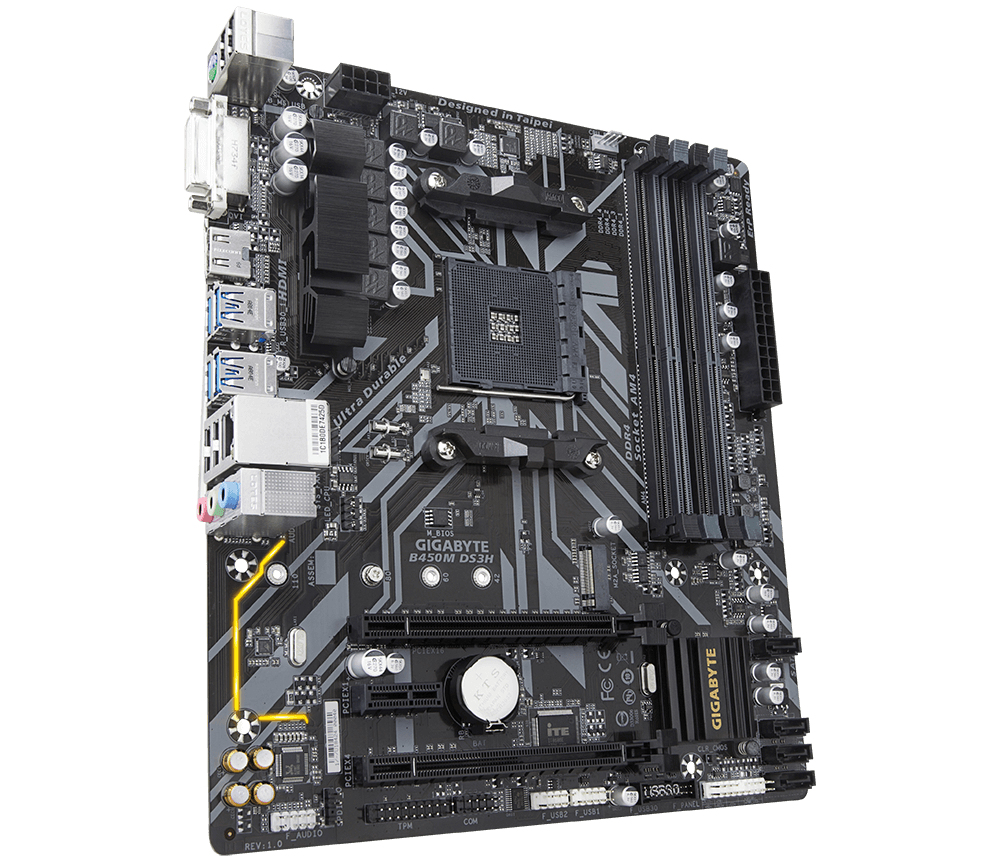

GIGABYTE B450M DS3H

GIGABYTE B450M DS3H

Model B450M DS3HEAN 4719331803827

59 specifications
  • Processor manufacturerAMD
  • Supported memory typesDDR4-SDRAM
  • Supported storage drive typesHDD & SSD
  • USB 2.0 connectors2
  • USB 2.0 ports quantity4
  • Ethernet LANYes
See all specifications

Overview

Processor manufacturer
AMD
Supported memory types
DDR4-SDRAM
Supported storage drive types
HDD & SSD
USB 2.0 connectors
2
USB 2.0 ports quantity
4
Ethernet LAN
Yes
Brand
GIGABYTE
Category
Motherboard
Model
B450M DS3H
Part number
B450M DS3H
EAN / UPC
4719331803827
Also known as
GIGABYTE B450M DS3H motherboard AMD B450 Socket AM4 micro ATX

Specifications

59 specifications in 13 groups

Processor

Processor manufacturerAMD
Processor socketSocket AM4
Compatible processor seriesAMD Athlon, AMD Ryzen 2000 Series, AMD Ryzen 3000 Series

Memory

Supported memory typesDDR4-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
Supported memory clock speeds2133,2400,2667,2933,3200 MHz
Maximum internal memory64 GB
Supported memory module capacities4GB, 8GB, 16GB
Unbuffered memoryYes

Storage controllers

Supported storage drive typesHDD & SSD

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors0
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
Number of SATA III connectors4
Number of SATA II connectors0
Front panel audio connectorYes
Front panel connectorYes
ATX Power connector (24-pin)Yes
Power fan connectorYes
CPU fan connectorYes
EPS power connector (8-pin)Yes
Serial port headers1
TPM connectorYes
RGB LED pin headerYes

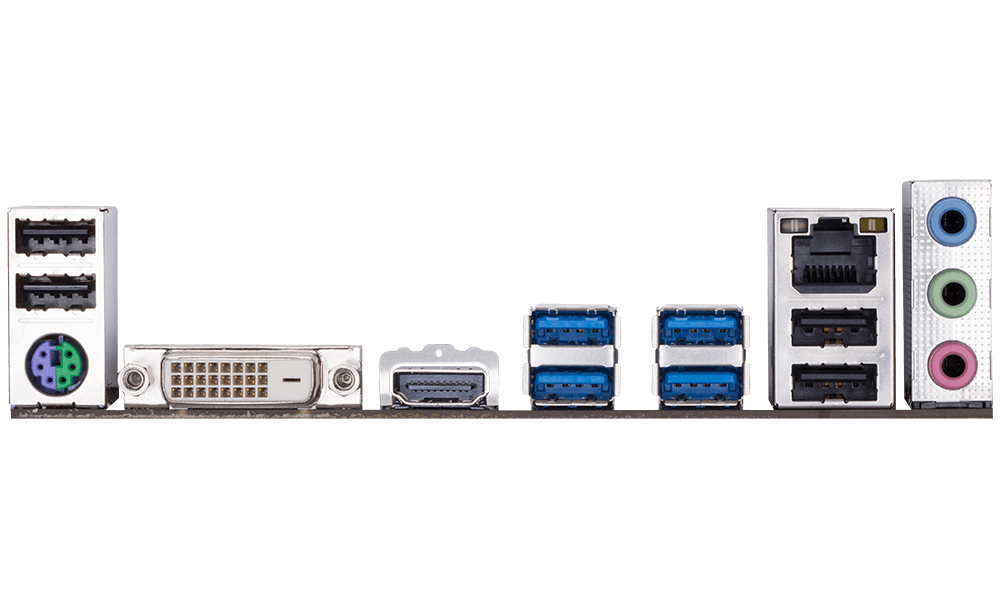

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity0
HDMI ports quantity1
DVI-D ports quantity1

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyAMD
Motherboard chipsetAMD B450
Audio output channels7.1 channels
Windows operating systems supportedWindows 10, Windows 7

Expansion slots

PCI Express x1 slots1
PCI Express x16 slots2

BIOS

BIOS typeUEFI AMI
BIOS memory size256 Mbit
ACPI version5.0
Desktop Management Interface (DMI) version2.7
System Management BIOS (SMBIOS) version2.7

Logistics data

Harmonized System (HS) code84733020

Weight & dimensions

Width244 mm
Depth215 mm

Packaging content

Bundled softwareNorton Internet Security (OEM version) cFosSpeed

Other features

HDD size2.5/3.5"
RegisteredNo
