B450M D3HP
Model B450M D3HPEAN 4719331884246
101 specifications
- Battery220 mAh
- Weight870 g
- ColourDark brown
- Processor manufacturerAMD
- Supported memory typesDDR4-SDRAM
- Supported storage drive typesHDD & SSD
Overview
- Battery
- 220 mAh
- Weight
- 870 g
- Colour
- Dark brown
- Processor manufacturer
- AMD
- Supported memory types
- DDR4-SDRAM
- Supported storage drive types
- HDD & SSD
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- B450M D3HP
- Part number
- B450M D3HP
- EAN / UPC
- 4719331884246
- Also known as
- GIGABYTE B450M D3HP Motherboard
Specifications
101 specifications in 16 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM4 |
| Compatible processor series | AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series |
| Supported processor sockets | Socket AM4 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speeds | 2133,2400,2667 MHz |
| Supported memory clock speed (max) | 2667 MHz |
| Maximum internal memory | 128 GB |
| Unbuffered memory | Yes |
| Maximum internal memory per slot | 32 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, NVMe, PCI Express 2.0, PCI Express 3.0, SATA III |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 6 |
| RAID support | Yes |
| RAID levels | 0, 1, 10 |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | Not supported |
| Maximum resolution | 4096 x 2304 pixels |
| DirectX version | 12.0 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of CPU fan connectors | 1 |
| Number of chassis fan connectors | 2 |
| EPS power connector (8-pin) | Yes |
| Number of EPS power connectors (8-pin) | 1 |
| 12V power connector | Yes |
| Serial port headers | 1 |
| TPM connector | Yes |
| RGB LED pin header | Yes |
| Number of RGB LED pin headers | 4 |

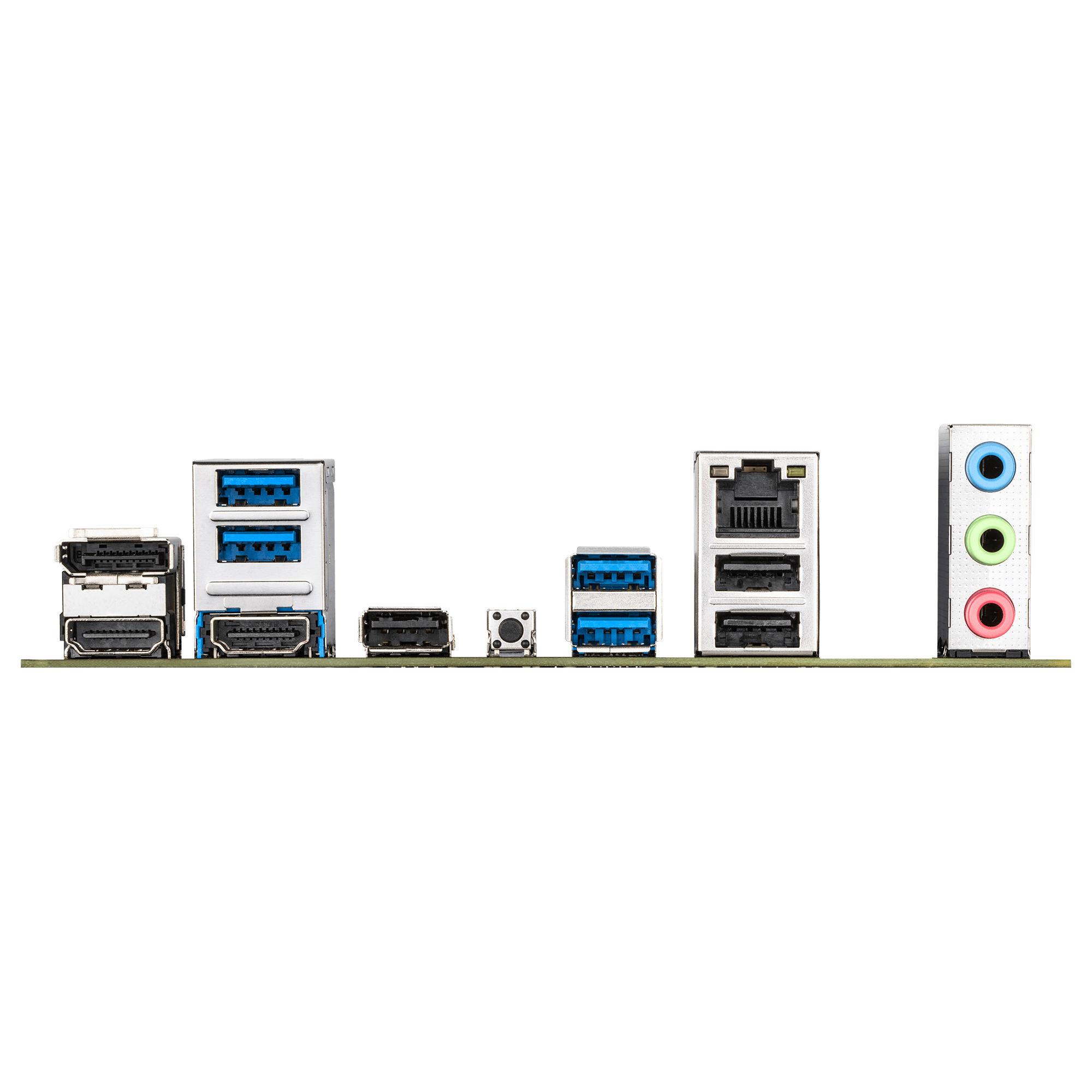

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 2 |
| HDMI version | 2.0b |
| DVI-D ports quantity | 0 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.2 |
| Headphone outputs | 1 |
| Line-in | Yes |
| Microphone in | Yes |
| WiFi-AP antenna jack | 2 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Realtek RTL8111H |
| Wi-Fi | No |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B450 |
| Audio output channels | 7.1 channels |
| Product colour | Dark brown |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Cooling type | Passive |
| Power source type | ATX |
| Windows operating systems supported | Windows 10, Windows 11 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 (Gen 2.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| Number of M.2 (M) slots | 2 |
| 1st M.2 largest key size | 2580 |
| 1st M.2 highest PCI Express generation | 3.0 |
| 2nd M.2 largest key size | 2280 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| ACPI version | 5.0 |
| Clear CMOS jumper | Yes |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
| Products per shipping (inner) case | 1 pc(s) |
Battery
| Specification | Value |
|---|---|
| Battery weight | 3 g |
| Lithium weight per battery | 0.07 g |
| Number of battery cells | 1 |
| Battery capacity | 220 mAh |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
Packaging data
| Specification | Value |
|---|---|
| Package width | 270 mm |
| Package depth | 268 mm |
| Package height | 68 mm |
| Package weight | 962 g |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 244 mm |
| Height | 35 mm |
Packaging content
| Specification | Value |
|---|---|
| Batteries included | Yes |
| Screws included | Yes |
| Bundled software | Norton® Internet Security (OEM version) |
Other features
| Specification | Value |
|---|---|
| Weight | 870 g |
