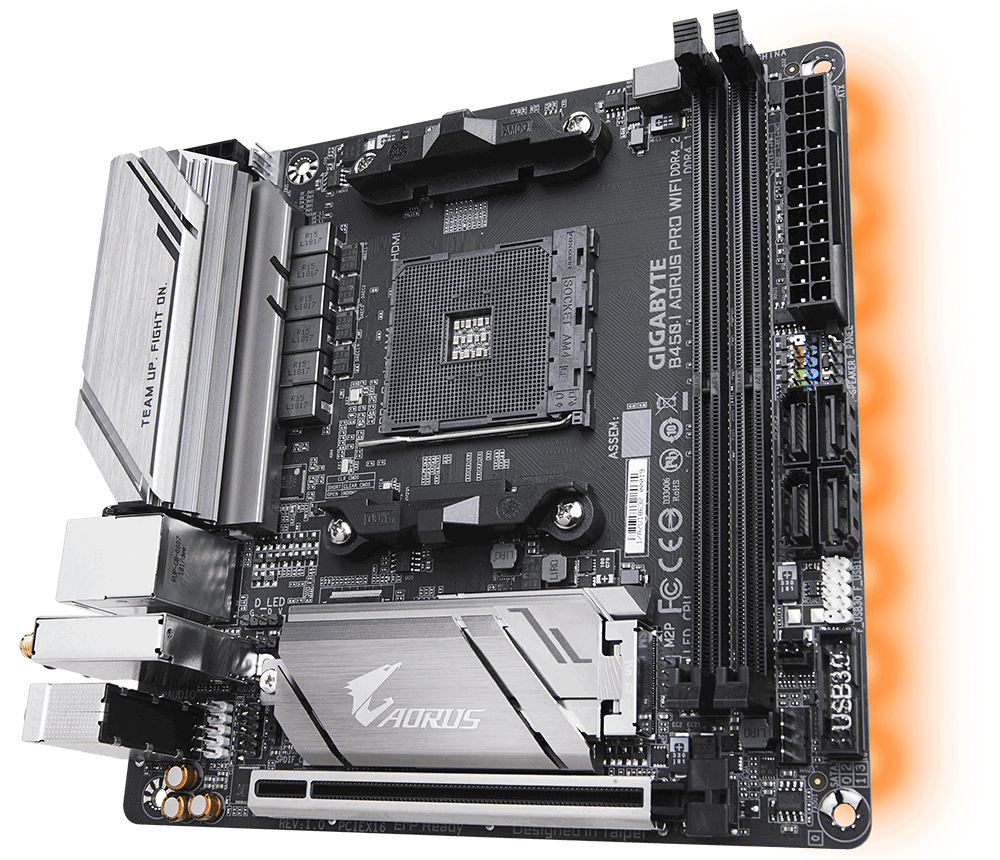

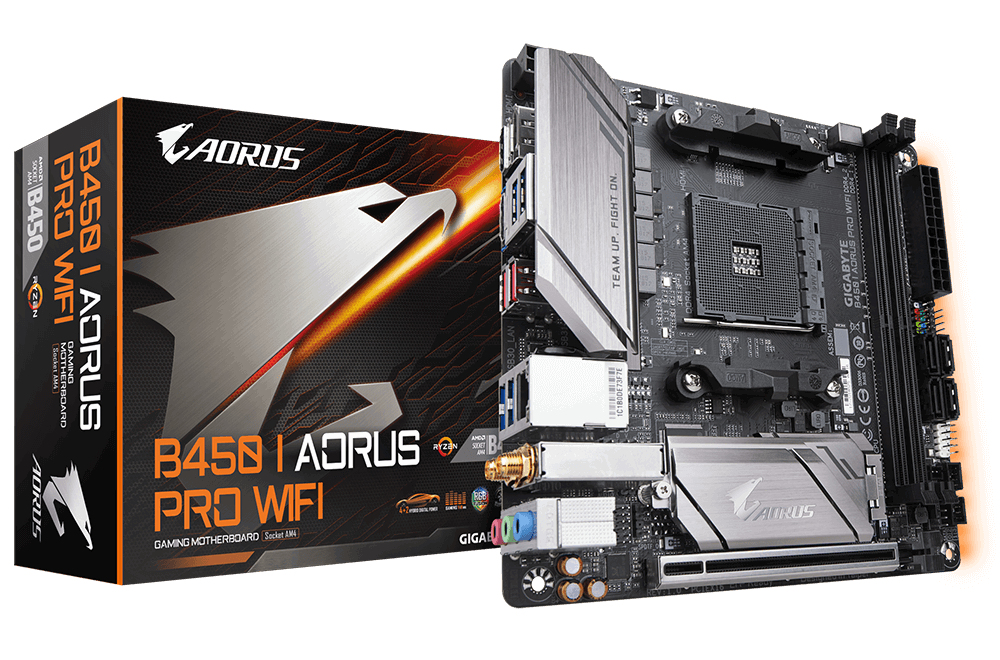

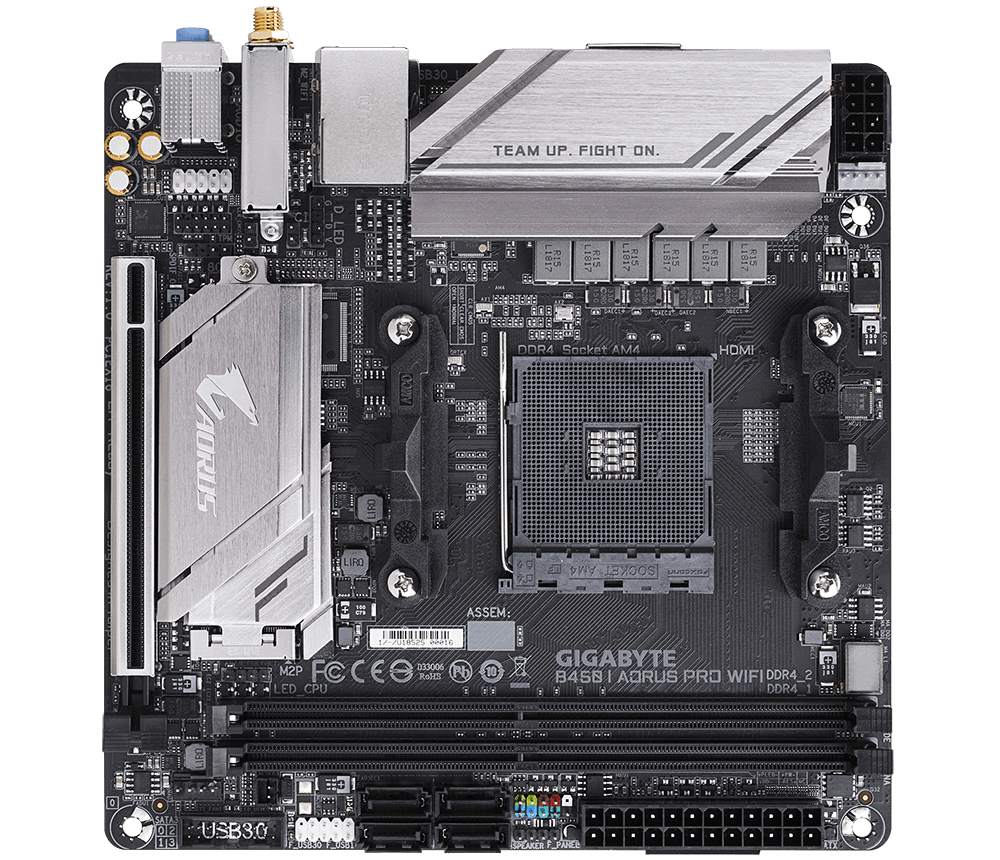

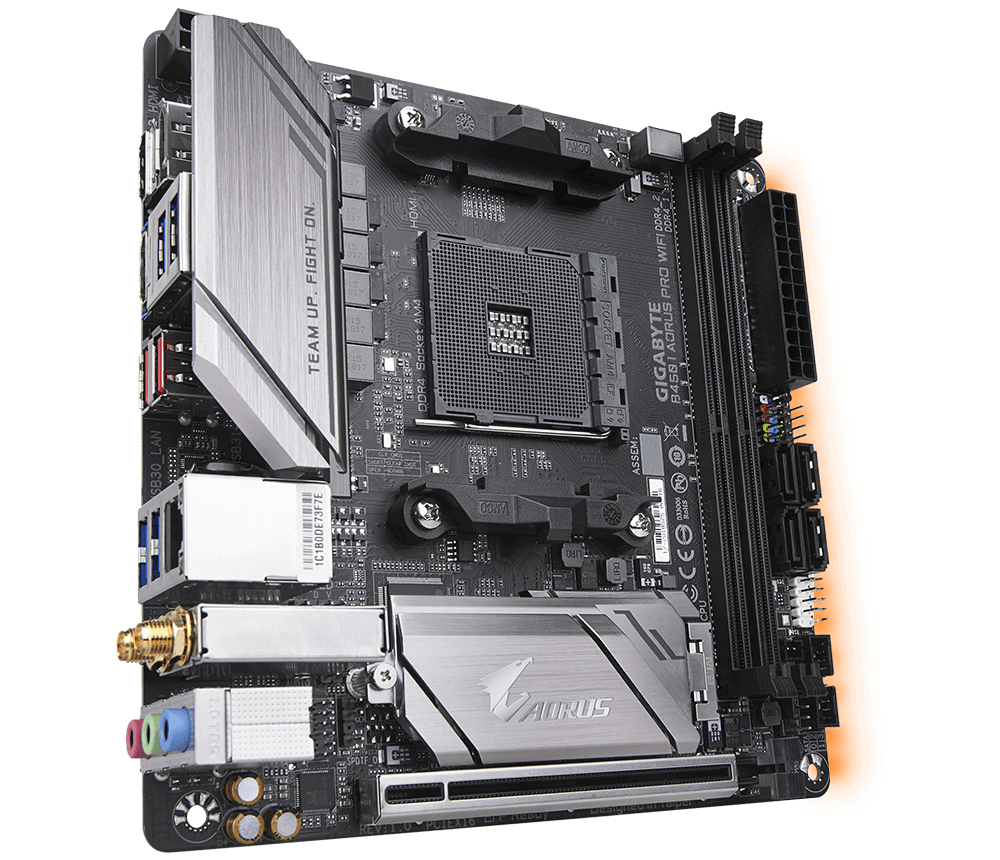

GIGABYTE B450 I AORUS PRO WIFI

GIGABYTE B450 I AORUS PRO WIFI

Model B450 I AORUS PRO WIFIEAN 889523014639

74 specifications
  • Processor manufacturerAMD
  • Supported memory typesDDR4-SDRAM
  • Supported storage drive typesSSD
  • Maximum resolution4096 x 2304 pixels
  • USB 2.0 connectors1
  • USB 2.0 ports quantity0
See all specifications

Overview

Processor manufacturer
AMD
Supported memory types
DDR4-SDRAM
Supported storage drive types
SSD
Maximum resolution
4096 x 2304 pixels
USB 2.0 connectors
1
USB 2.0 ports quantity
0
Brand
GIGABYTE
Category
Motherboard
Model
B450 I AORUS PRO WIFI
Part number
B450 I AORUS PRO WIFI
EAN / UPC
889523014639, 4719331803988
Also known as
GIGABYTE B450 I AORUS PRO WIFI motherboard AMD B450 Socket AM4 mini ATX

Specifications

74 specifications in 13 groups

Processor

Processor manufacturerAMD
Processor socketSocket AM4
Compatible processor seriesAMD Athlon, AMD Ryzen 2000 Series, AMD Ryzen 3000 Series

Memory

Supported memory typesDDR4-SDRAM
Number of memory slots2
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityECC & Non-ECC
Supported memory clock speeds2133,2400,2667,2933 MHz
Maximum internal memory32 GB
Unbuffered memoryYes

Storage controllers

Supported storage drive typesSSD
RAID levels0, 1, 10

Graphics

Maximum resolution4096 x 2304 pixels
HDCPYes
Number of displays supported3

Internal I/O

USB 2.0 connectors1
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 3.2 Gen 2 (3.1 Gen 2) connectors0
Number of SATA III connectors4
Number of SATA II connectors0
Number of Parallel ATA connectors0
S/PDIF out connectorYes
Front panel audio connectorYes
Front panel connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Chassis intrusion connectorYes
12V power connectorYes
TPM connectorYes
RGB LED pin headerYes

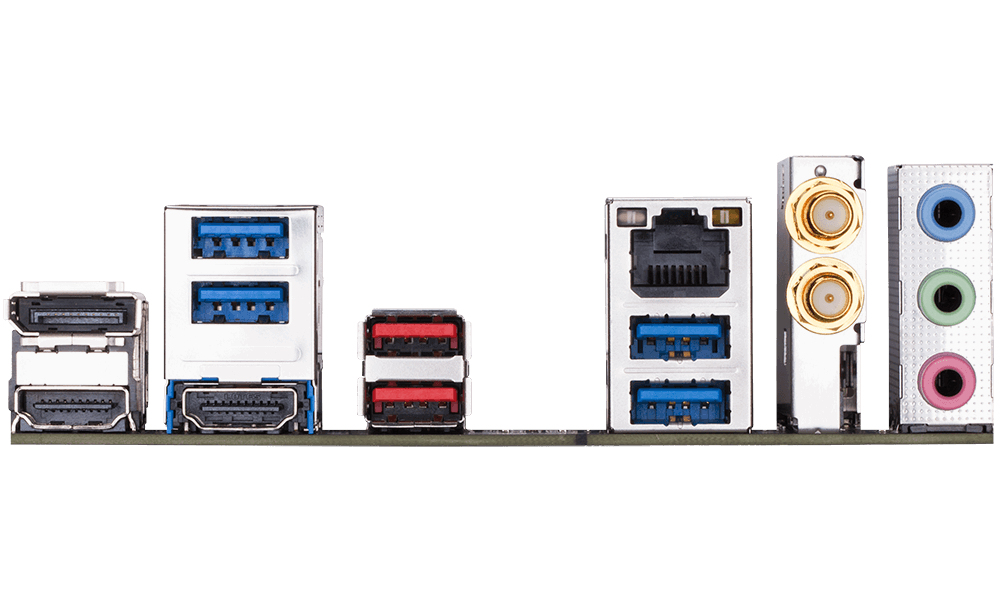

Rear panel I/O ports

USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity0
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity0
HDMI ports quantity2
HDMI version2.0
DVI-D ports quantity0
DisplayPorts quantity1
DisplayPort version1.2
WiFi-AP antenna jack2

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
Wi-FiYes
Wi-Fi standards802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
BluetoothYes
Bluetooth version5.0

Features

Component forPC
Motherboard form factormini ATX
Motherboard chipset familyAMD
Motherboard chipsetAMD B450
Audio chipRealtek ALC1220-VB
Audio output channels7.1 channels
Windows operating systems supportedWindows 10, Windows 7

Expansion slots

PCI Express x16 slots1
Number of M.2 (M) slots1

BIOS

BIOS typeUEFI AMI
BIOS memory size128 Mbit
ACPI version5.0
Clear CMOS jumperYes
Desktop Management Interface (DMI) version2.7
Plug and PlayYes
System Management BIOS (SMBIOS) version2.7

Processor special features

Intel Extreme Memory Profile (XMP)Yes
Intel® High Definition Audio (Intel® HD Audio)Yes

Logistics data

Harmonized System (HS) code84733020

Weight & dimensions

Width170 mm
Depth170 mm
