GIGABYTE B450 AORUS ELITE

GIGABYTE B450 AORUS ELITE

Model B450 AORUS ELITEEAN 889523014653

75 specifications
  • Weight910 g
  • Processor manufacturerAMD
  • Supported memory typesDDR4-SDRAM
  • Supported storage drive typesSSD
  • Parallel processing technology supportCrossFire
  • USB 2.0 connectors2
See all specifications

Overview

Weight
910 g
Processor manufacturer
AMD
Supported memory types
DDR4-SDRAM
Supported storage drive types
SSD
Parallel processing technology support
CrossFire
USB 2.0 connectors
2
Brand
GIGABYTE
Category
Motherboard
Model
B450 AORUS ELITE
Part number
B450 AORUS ELITE
EAN / UPC
889523014653, 4719331803995
Also known as
GIGABYTE B450 AORUS ELITE motherboard AMD B450 Socket AM4 ATX

Specifications

75 specifications in 14 groups

Processor

Processor manufacturerAMD
Processor socketSocket AM4
Compatible processor seriesAMD Athlon, AMD Ryzen 2000 Series, AMD Ryzen 3000 Series

Memory

Supported memory typesDDR4-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityECC & Non-ECC
Supported memory clock speeds2133,2400,2667,2933 MHz
Supported memory clock speed (max)2933 MHz
Maximum internal memory64 GB
Unbuffered memoryYes

Storage controllers

Supported storage drive typesSSD
Supported storage drive interfacesM.2, SATA
RAID levels0, 1, 10

Graphics

Parallel processing technology supportCrossFire
Maximum resolution4096 x 2160 pixels
HDCPYes

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 3.2 Gen 2 (3.1 Gen 2) connectors0
Number of SATA III connectors6
Number of SATA II connectors0
Number of Parallel ATA connectors0
S/PDIF out connectorYes
Front panel audio connectorYes
Front panel connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors3
12V power connectorYes
Serial port headers1
TPM connectorYes
RGB LED pin headerYes

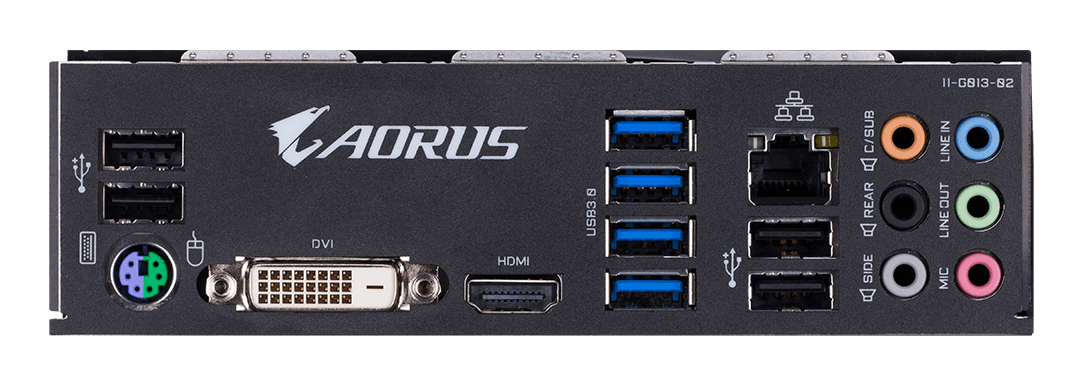

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity0
HDMI ports quantity1
DVI-D ports quantity1
Headphone outputs6

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
Wi-FiNo

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyAMD
Motherboard chipsetAMD B450
Audio chipRealtek ALC892
Audio output channels7.1 channels
Windows operating systems supportedWindows 10, Windows 7
CertificationCE, FCC

Expansion slots

PCI Express x1 slots2
PCI Express x16 slots2
Number of M.2 (M) slots2

BIOS

BIOS typeUEFI AMI
BIOS memory size128 Mbit
ACPI version5.0
Clear CMOS jumperYes
Desktop Management Interface (DMI) version2.7
Plug and PlayYes
System Management BIOS (SMBIOS) version2.7

Processor special features

Intel Extreme Memory Profile (XMP)Yes
Intel® High Definition Audio (Intel® HD Audio)Yes

Logistics data

Harmonized System (HS) code84733020

Weight & dimensions

Width305 mm
Depth235 mm
Height80 mm

Other features

Weight910 g
