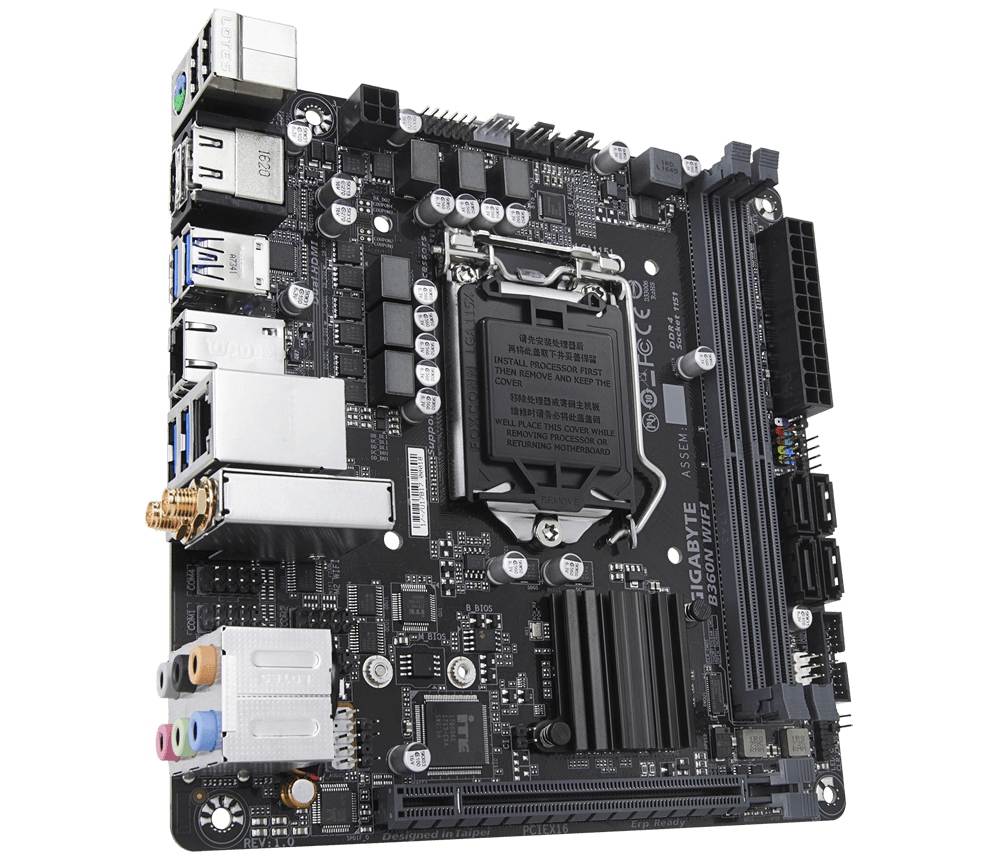

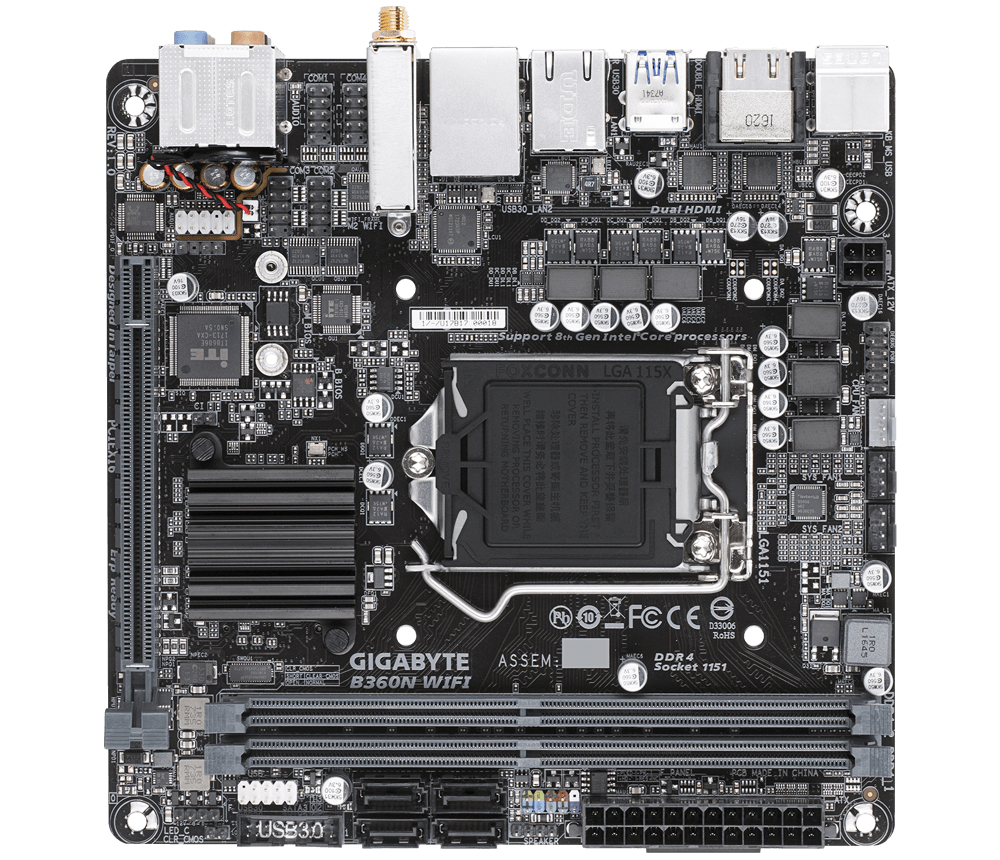

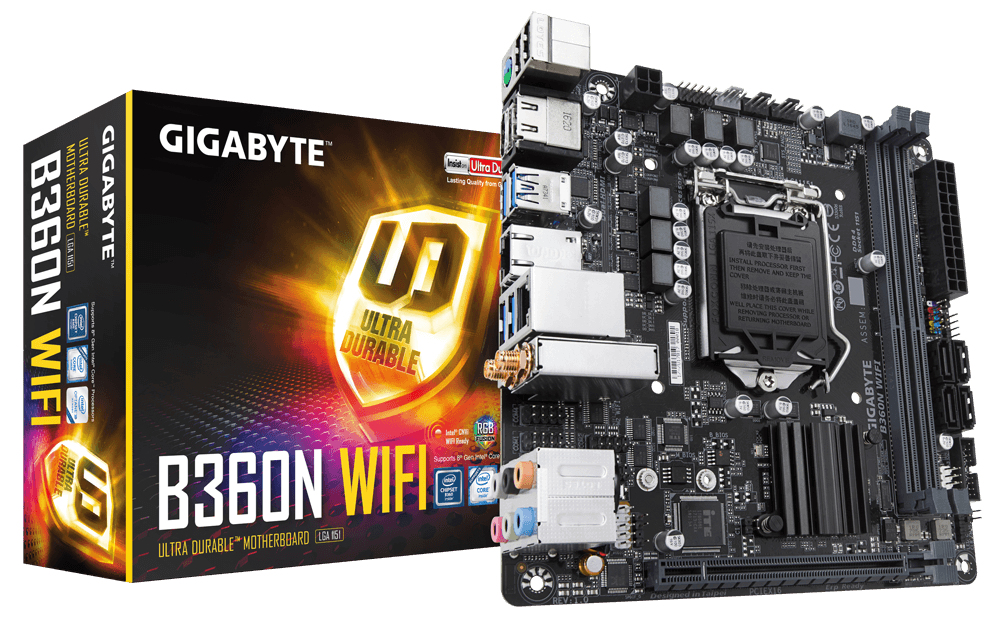

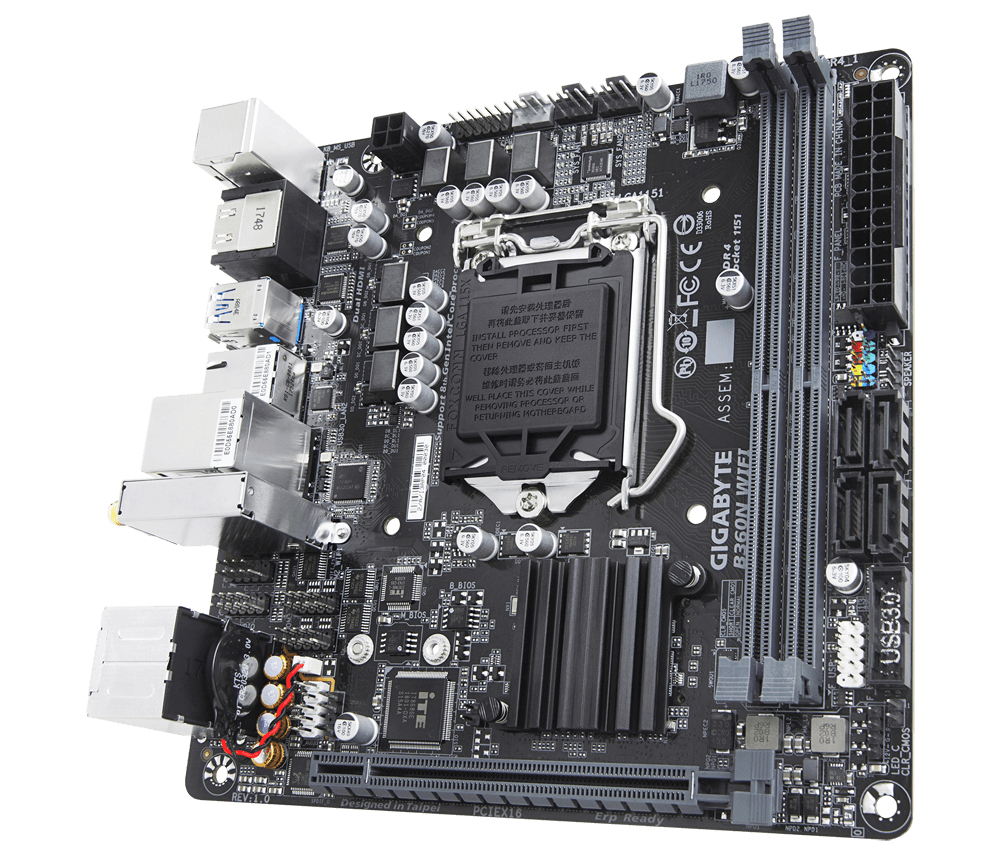

GIGABYTE B360N WIFI

GIGABYTE B360N WIFI

Model B360N WIFIEAN 889523013335

74 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR4-SDRAM
  • Maximum resolution4096 x 2160 pixels
  • USB 2.0 connectors1
  • USB 2.0 ports quantity2
  • Ethernet LANYes
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR4-SDRAM
Maximum resolution
4096 x 2160 pixels
USB 2.0 connectors
1
USB 2.0 ports quantity
2
Ethernet LAN
Yes
Brand
GIGABYTE
Category
Motherboard
Model
B360N WIFI
Part numbers
B360N WIFI, GA360NWFI-00-G
EAN / UPC
889523013335, 4719331803360
Also known as
GIGABYTE B360N WIFI motherboard Intel B360 Express LGA 1151 (Socket H4) mini ITX

Specifications

74 specifications in 12 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1151 (Socket H4)
Compatible processor seriesIntel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Pentium®
Maximum number of SMP processors1

Memory

Supported memory typesDDR4-SDRAM
Number of memory slots2
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityECC & Non-ECC
Supported memory clock speeds2133,2400,2666 MHz
Maximum internal memory32 GB
Unbuffered memoryYes

Graphics

Maximum resolution4096 x 2160 pixels
HDCPYes

Internal I/O

USB 2.0 connectors1
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 3.2 Gen 2 (3.1 Gen 2) connectors0
Number of SATA III connectors4
Number of SATA II connectors0
Number of Parallel ATA connectors0
S/PDIF out connectorYes
Audio connectorYes
Front panel audio connectorYes
Front panel connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors2
Chassis intrusion connectorYes
12V power connectorYes
Serial port headers4

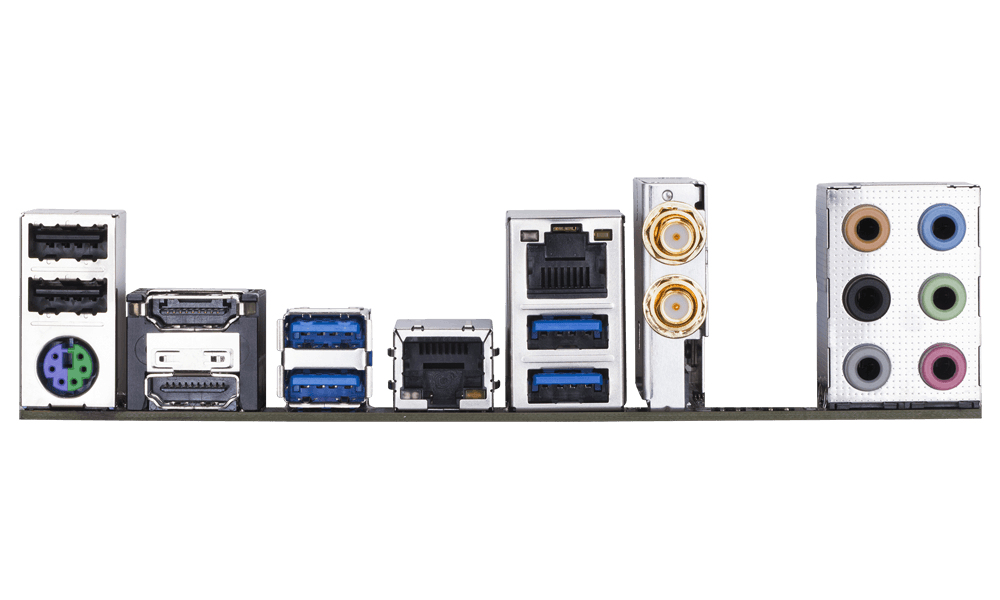

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0
Ethernet LAN (RJ-45) ports2
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity0
HDMI ports quantity2
HDMI version1.4
DVI-D ports quantity0
WiFi-AP antenna jack2

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
Wi-FiYes
Wi-Fi standards802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
BluetoothYes
Bluetooth version5.0

Features

Component forPC
Motherboard form factormini ITX
Motherboard chipset familyIntel
Motherboard chipsetIntel B360 Express
Audio chipRealtek ALC887
Audio output channels7.1 channels
PC health monitoringFan, Temperature, Voltage
Power source typeATX
Windows operating systems supportedWindows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64

Expansion slots

PCI Express x16 (Gen 3.x) slots1
Number of M.2 (M) slots1

BIOS

BIOS typeUEFI AMI
BIOS memory size128 Mbit
ACPI version5.0
Clear CMOS jumperYes
Desktop Management Interface (DMI) version2.7
Plug and PlayYes

Processor special features

Intel Extreme Memory Profile (XMP)Yes

Weight & dimensions

Width170 mm
Depth170 mm

Packaging content

Cables includedSATA
ManualYes
Drivers includedYes
Bundled softwareNorton Internet Security, cFosSpeed
