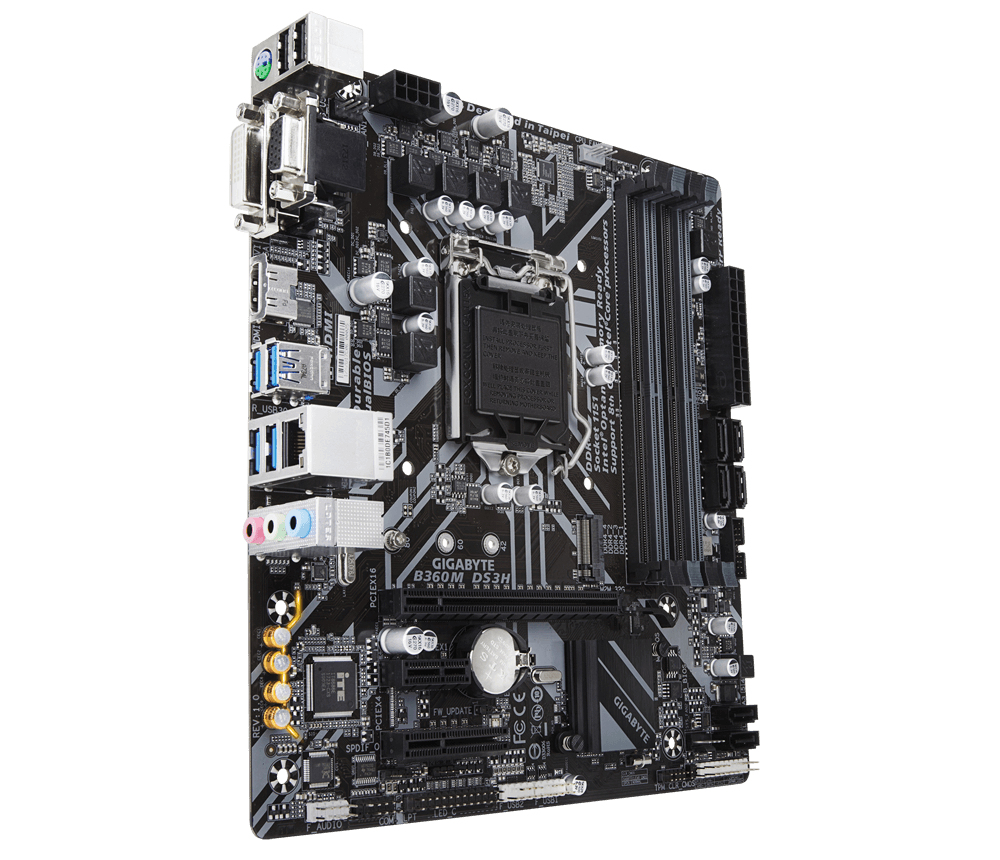

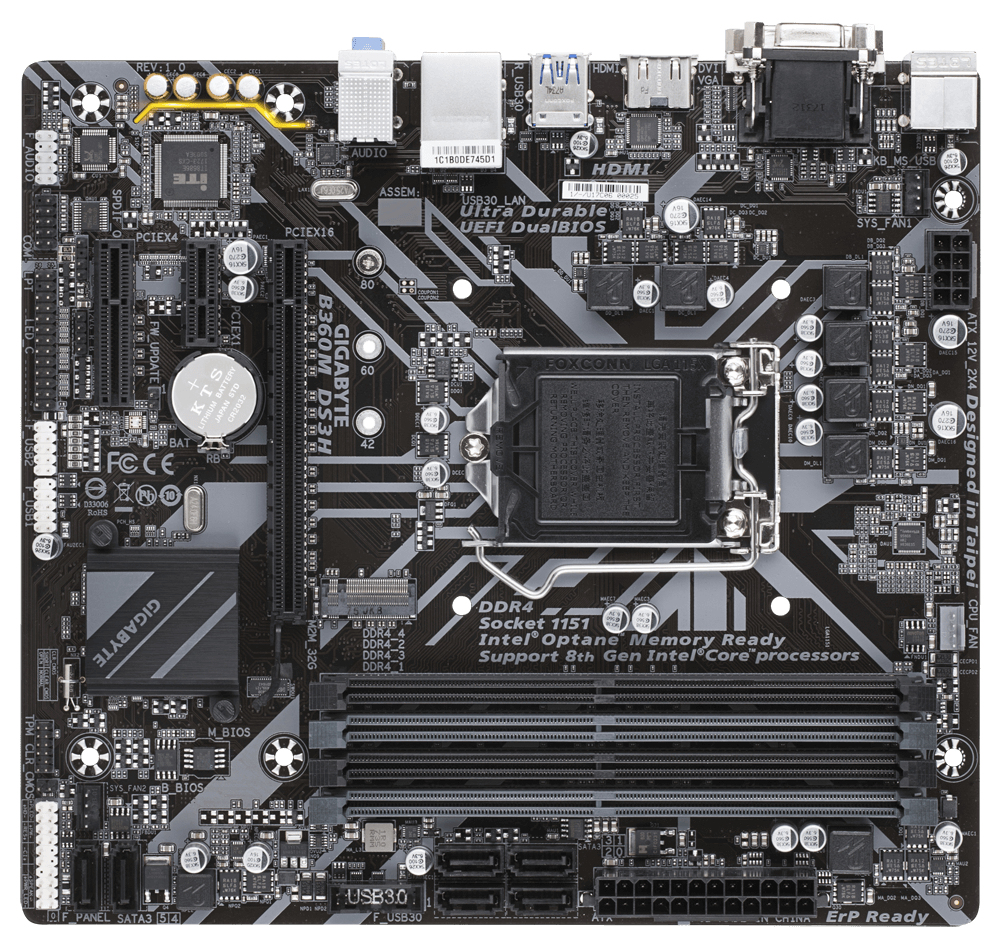

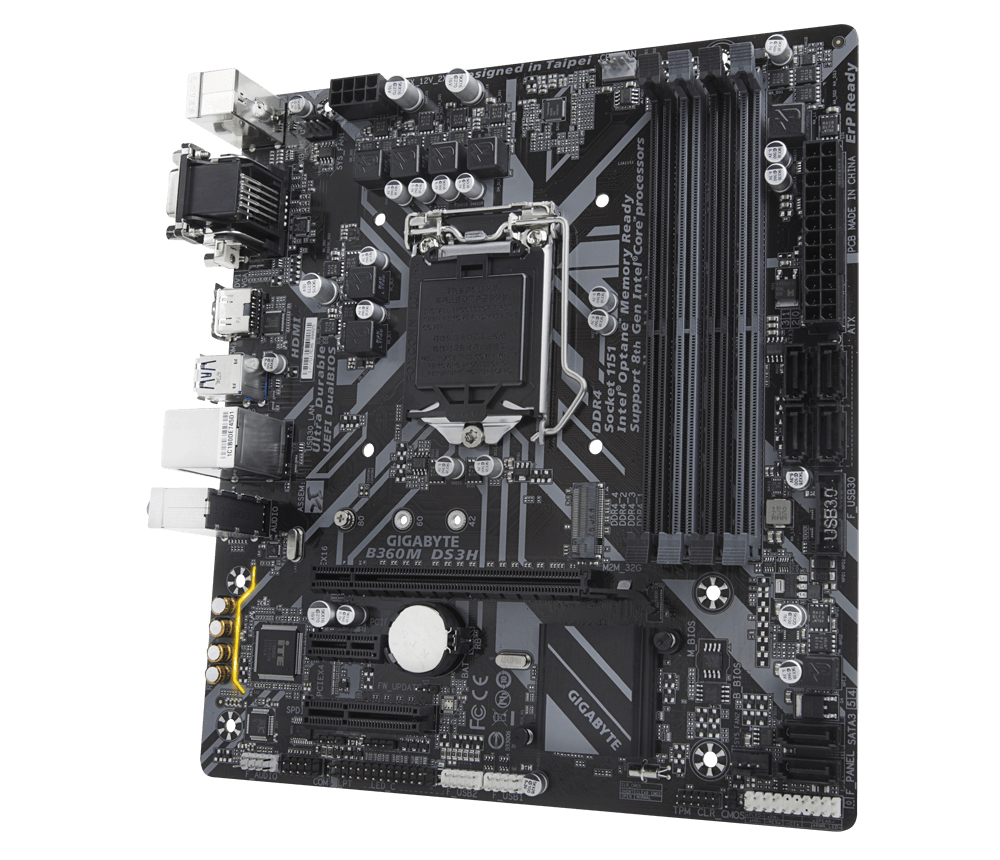

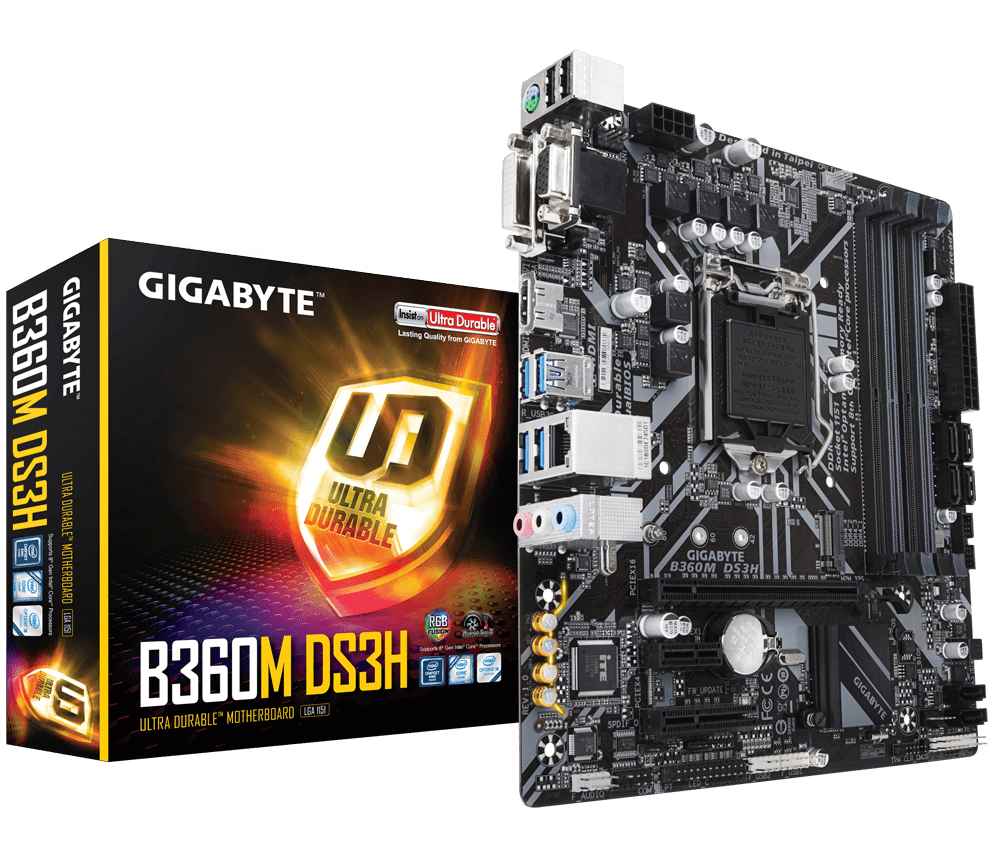

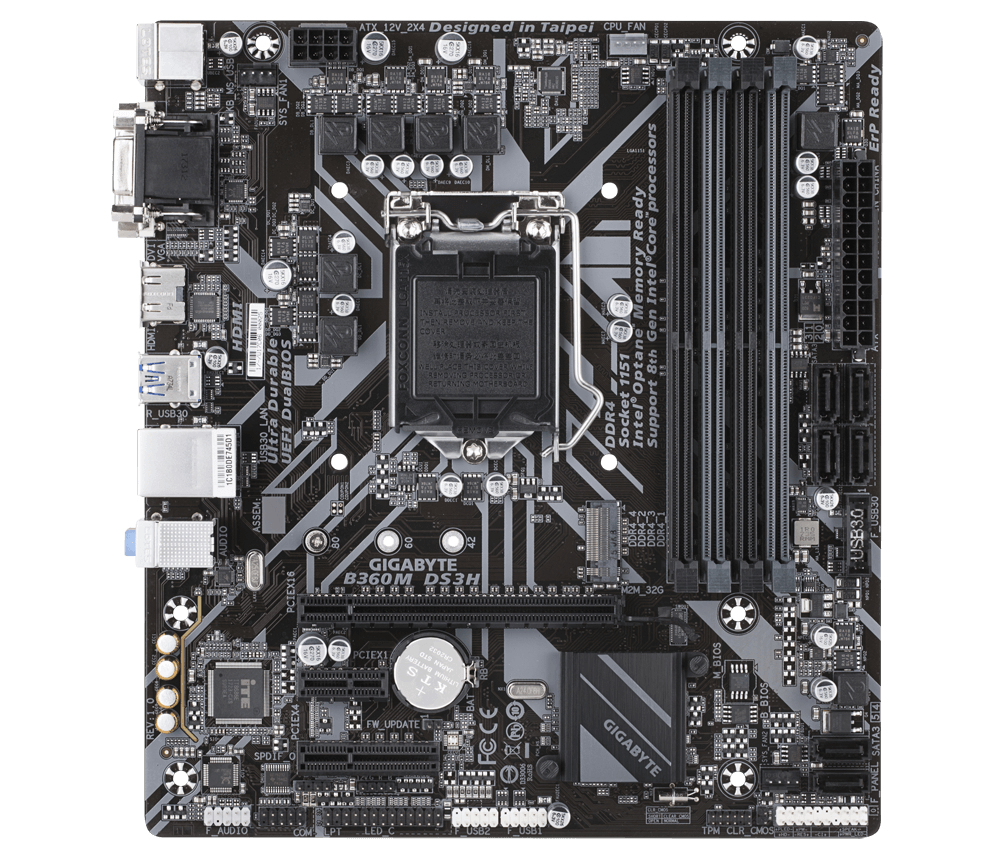

GIGABYTE B360M DS3H

GIGABYTE B360M DS3H

Model B360M DS3HEAN 889523012635

66 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR4-SDRAM
  • Maximum graphics card memory1024 MB
  • USB 2.0 connectors2
  • Ethernet LANYes
  • Component forPC
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR4-SDRAM
Maximum graphics card memory
1024 MB
USB 2.0 connectors
2
Ethernet LAN
Yes
Component for
PC
Brand
GIGABYTE
Category
Motherboard
Model
B360M DS3H
Part numbers
B360M DS3H, GAB36MS3H-00-G
EAN / UPC
889523012635, 4719331802806, 5706998283566
Also known as
GIGABYTE B360M DS3H motherboard Intel B360 Express LGA 1151 (Socket H4) micro ATX

Specifications

66 specifications in 12 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1151 (Socket H4)
Compatible processor seriesIntel® Celeron®
Maximum number of SMP processors1
Supported processor socketsLGA 1151 (Socket H4)

Memory

Supported memory typesDDR4-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds2666,2400,2133 MHz
Supported memory module capacities8GB, 16GB
Unbuffered memoryYes

Graphics

Maximum graphics card memory1024 MB
Graphics card familyIntel
Graphics cardHD Graphics
Maximum resolution4096 x 2160 pixels
HDCPYes
Discrete graphics supportYes

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 3.2 Gen 2 (3.1 Gen 2) connectors0
Number of SATA III connectors6
Number of SATA II connectors0
Number of SATA connectors6
Number of Parallel ATA connectors0
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors2
12V power connectorYes

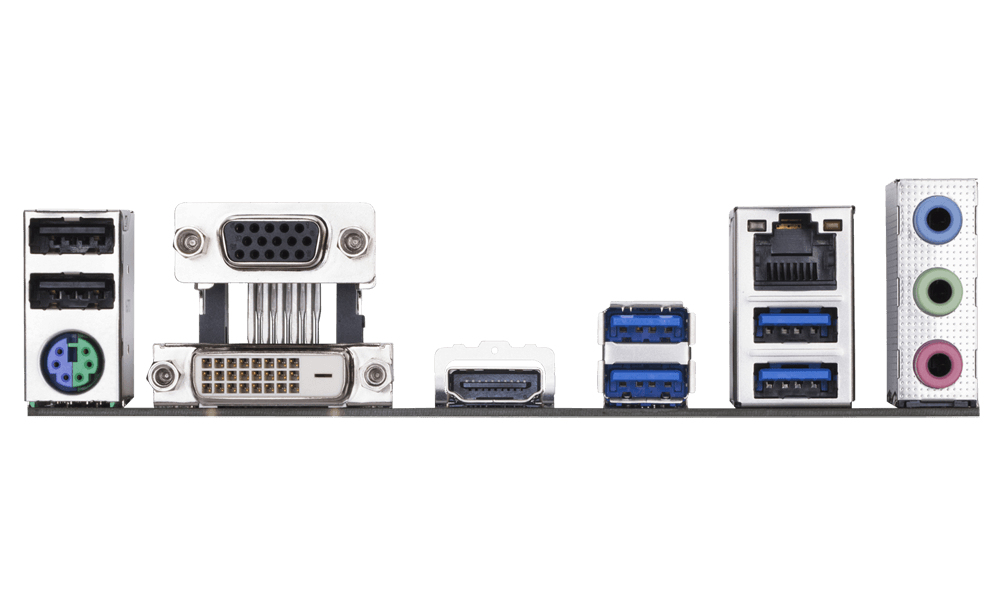

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity1
HDMI version1.4
DVI-D ports quantity1
Microphone inYes
USB connector typeUSB Type-A

Network

Ethernet LANYes
Ethernet interface typeFast Ethernet, Gigabit Ethernet

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyIntel
Motherboard chipsetIntel B360 Express
Audio output channels7.1 channels
PC health monitoringCPU, Fan, LED, Temperature, Voltage
Cooling typePassive
Power source typeATX
Windows operating systems supportedWindows 10

Expansion slots

PCI Express x1 slots1
PCI Express x4 slots1
PCI Express x16 slots1

BIOS

BIOS typeUEFI AMI

Processor special features

Intel Extreme Memory Profile (XMP)Yes
Intel® Optane™ Memory ReadyYes

Weight & dimensions

Width205 mm
Depth226 mm

Packaging content

ManualYes
