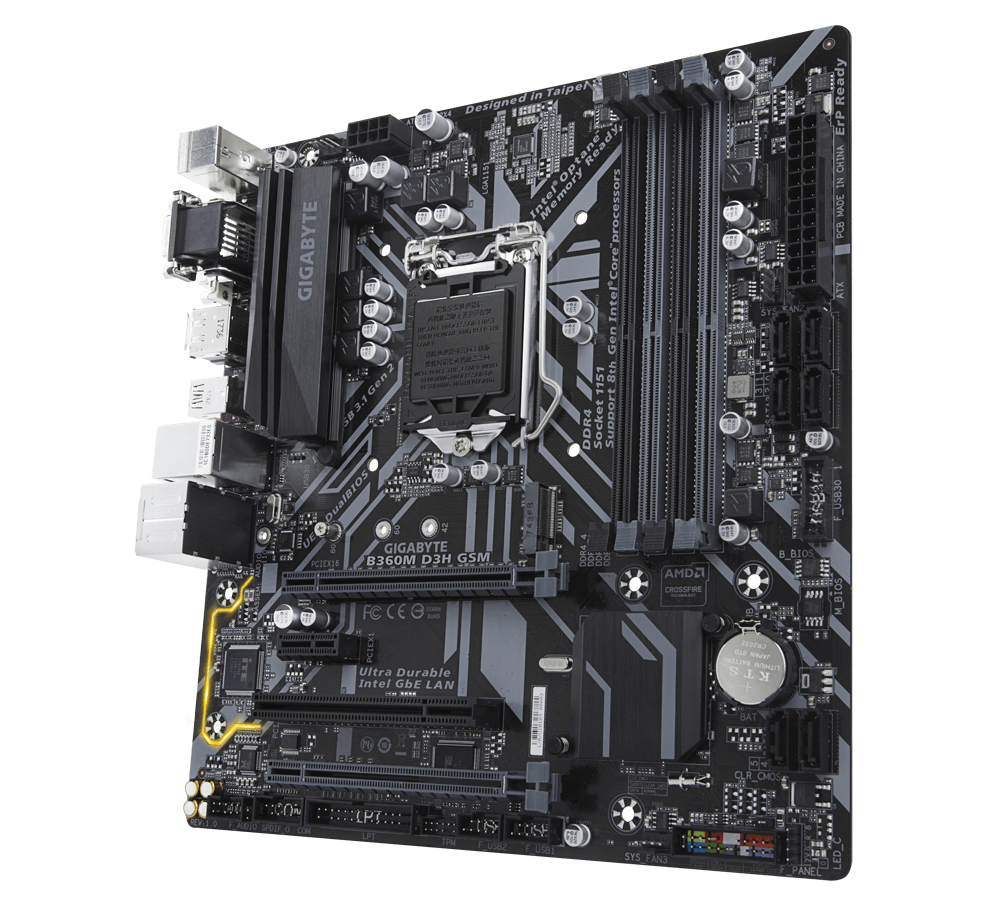

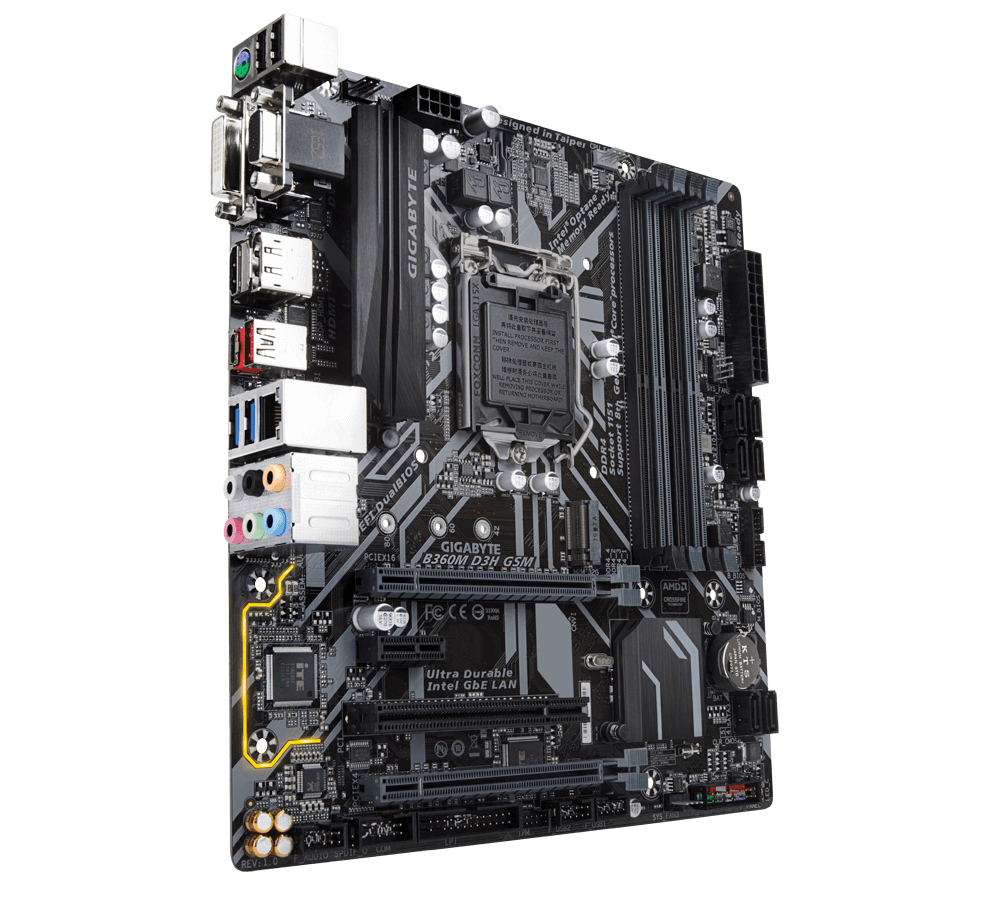

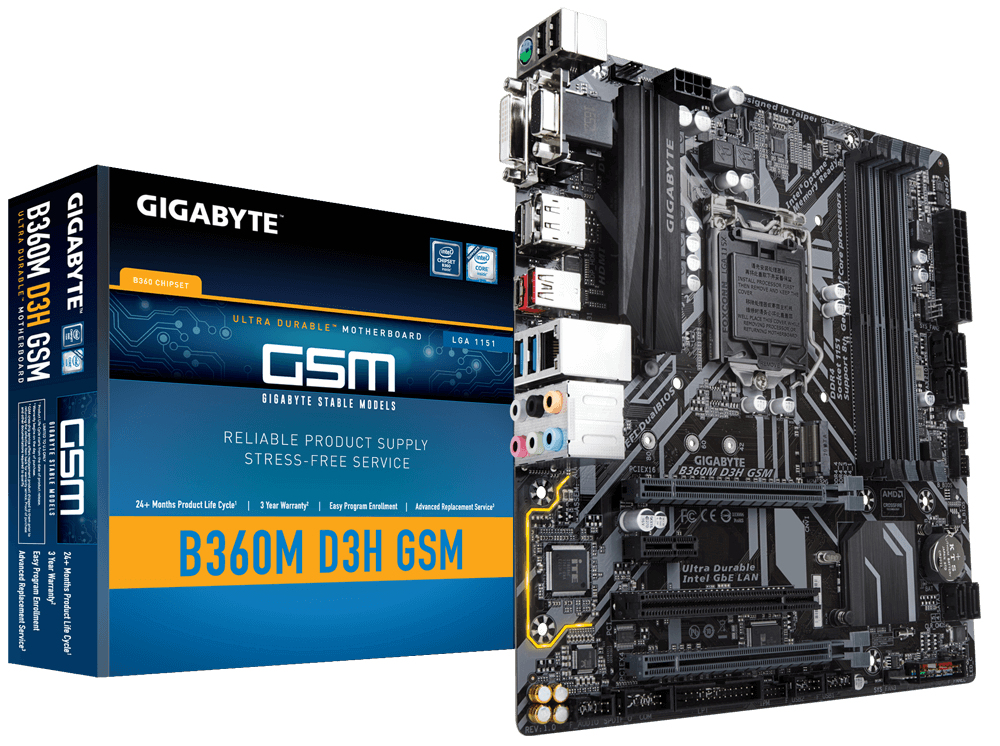

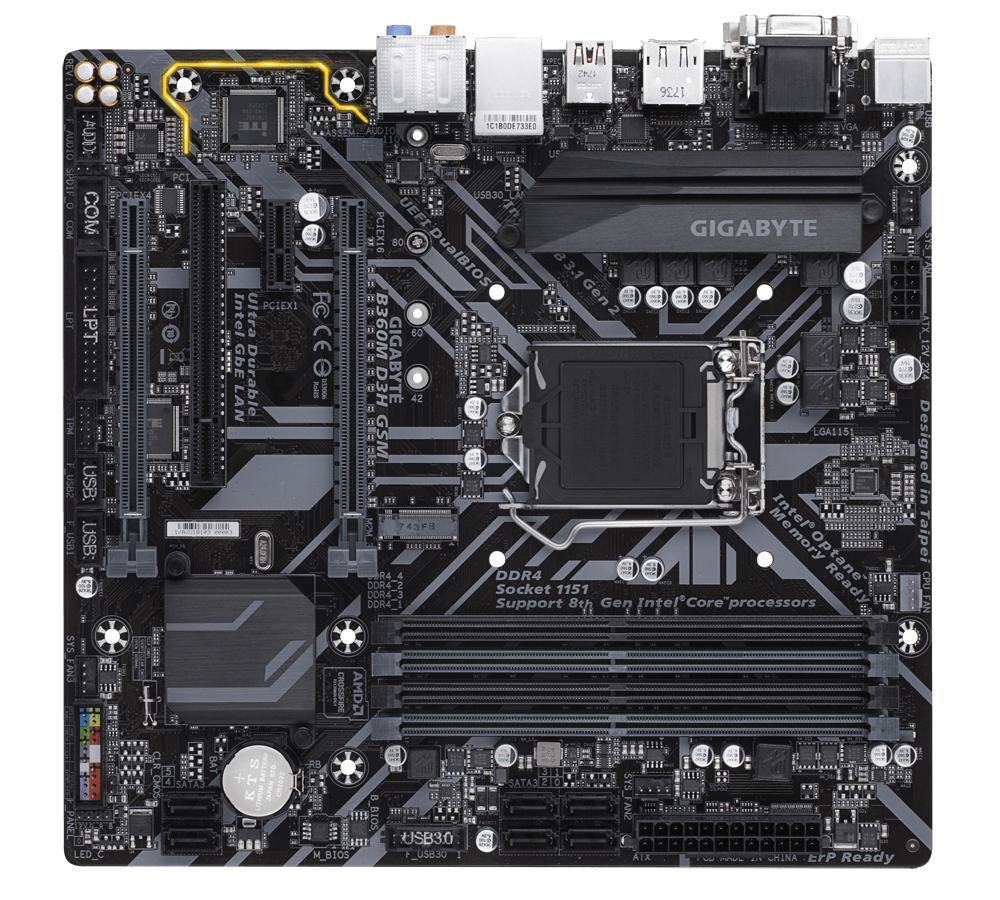

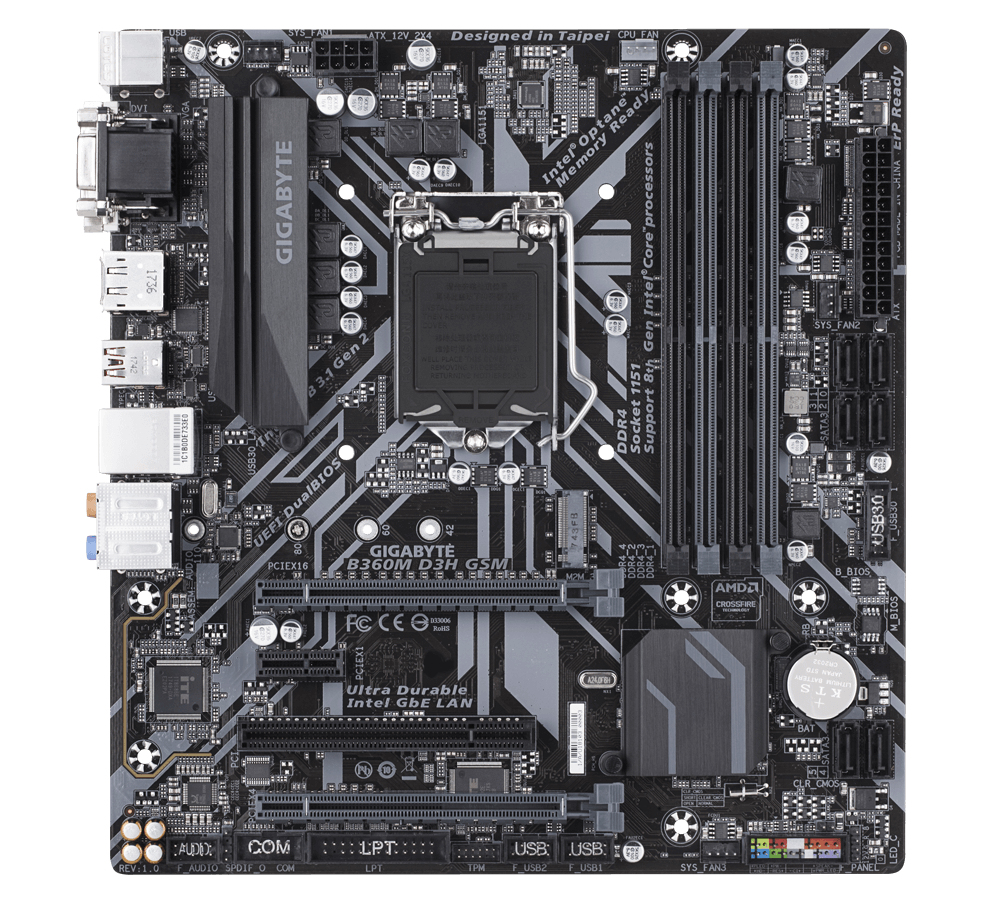

GIGABYTE B360M D3H GSM

GIGABYTE B360M D3H GSM

Model B360M D3H GSMEAN 889523013892

77 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR4-SDRAM
  • Maximum graphics card memory1024 MB
  • USB 2.0 connectors2
  • Ethernet LANYes
  • Component forPC
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR4-SDRAM
Maximum graphics card memory
1024 MB
USB 2.0 connectors
2
Ethernet LAN
Yes
Component for
PC
Brand
GIGABYTE
Category
Motherboard
Model
B360M D3H GSM
Part number
B360M D3H GSM
EAN / UPC
889523013892
Also known as
GIGABYTE B360M D3H GSM motherboard Intel B360 Express LGA 1151 (Socket H4) micro ATX

Specifications

77 specifications in 12 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1151 (Socket H4)
Compatible processor seriesIntel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Pentium®
Maximum number of SMP processors1

Memory

Supported memory typesDDR4-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityECC & Non-ECC
Supported memory clock speeds2133,2400,2600 MHz
Maximum internal memory64 GB
Unbuffered memoryYes

Graphics

Maximum graphics card memory1024 MB
Parallel processing technology support2-Way CrossFireX, Quad-GPU CrossFireX
Maximum resolution4096 x 2160 pixels
HDCPYes
Number of displays supported3

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 3.2 Gen 2 (3.1 Gen 2) connectors0
Number of SATA III connectors6
Number of SATA II connectors0
Number of Parallel ATA connectors1
S/PDIF out connectorYes
Front panel audio connectorYes
Front panel connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors3
12V power connectorYes
Parallel connectorYes
Serial port headers1
TPM connectorYes

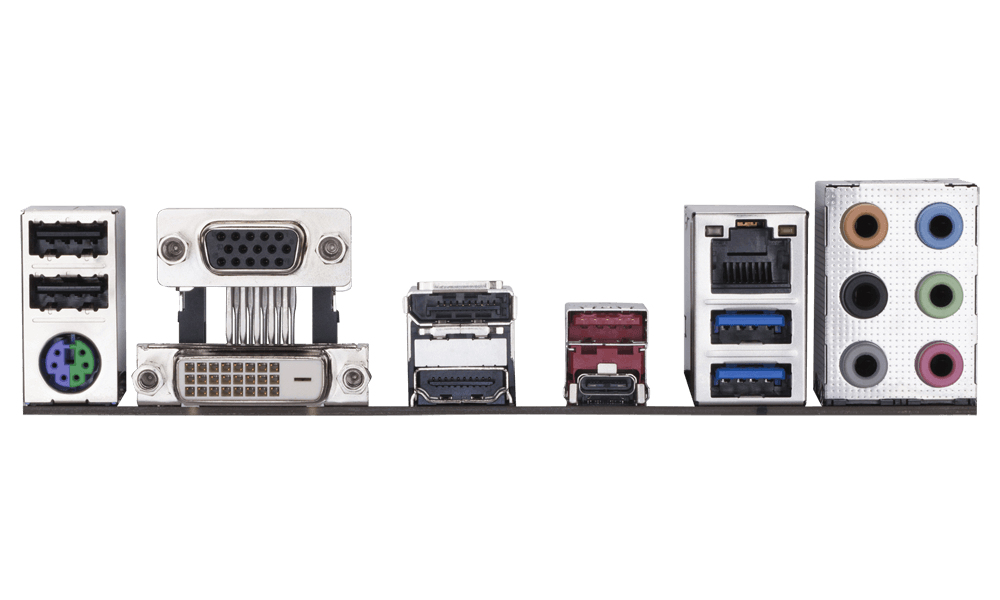

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity1
HDMI version1.4
DVI-D ports quantity1
DisplayPorts quantity1
DisplayPort version1.2

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyIntel
Motherboard chipsetIntel B360 Express
Audio chipRealtek ALC882
Audio output channels7.1 channels
PC health monitoringFan, Temperature, Voltage
Windows operating systems supportedWindows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64

Expansion slots

PCI Express x1 (Gen 3.x) slots1
PCI Express x16 (Gen 3.x) slots2
PCI slots1
Number of M.2 (M) slots1

BIOS

BIOS typeUEFI AMI
BIOS memory size128 Mbit
ACPI version5.0
Clear CMOS jumperYes
Desktop Management Interface (DMI) version2.7
Plug and PlayYes
System Management BIOS (SMBIOS) version2.7

Processor special features

Intel Extreme Memory Profile (XMP)Yes
Intel® Optane™ Memory ReadyYes

Weight & dimensions

Width244 mm
Depth230 mm

Packaging content

Cables includedSATA
ManualYes
Drivers includedYes
Bundled softwareNorton Internet Security, cFosSpeed
