GIGABYTE B360M D2V

GIGABYTE B360M D2V

Model B360M D2VEAN 889523012710

65 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR4-SDRAM
  • Maximum graphics card memory1024 MB
  • USB 2.0 connectors2
  • Ethernet LANYes
  • Component forPC
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR4-SDRAM
Maximum graphics card memory
1024 MB
USB 2.0 connectors
2
Ethernet LAN
Yes
Component for
PC
Brand
GIGABYTE
Category
Motherboard
Model
B360M D2V
Part number
B360M D2V
EAN / UPC
889523012710, 4719331802905, 5706998268495
Also known as
GIGABYTE B360M D2V motherboard Intel B360 Express LGA 1151 (Socket H4) micro ATX

Specifications

65 specifications in 13 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1151 (Socket H4)
Compatible processor seriesIntel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Pentium®
Maximum number of SMP processors1
Supported processor socketsLGA 1151 (Socket H4)

Memory

Supported memory typesDDR4-SDRAM
Number of memory slots2
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds2666,2400,2133 MHz
Maximum internal memory32 GB
Supported memory module capacities8GB, 16GB
Unbuffered memoryYes

Graphics

Maximum graphics card memory1024 MB
Graphics card familyIntel
Graphics cardHD Graphics
Maximum resolution1920 x 1200 pixels

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 3.2 Gen 2 (3.1 Gen 2) connectors0
Number of SATA III connectors6
Number of SATA II connectors0
Number of SATA connectors6
Number of Parallel ATA connectors0
Front panel connectorNo
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors1
12V power connectorYes

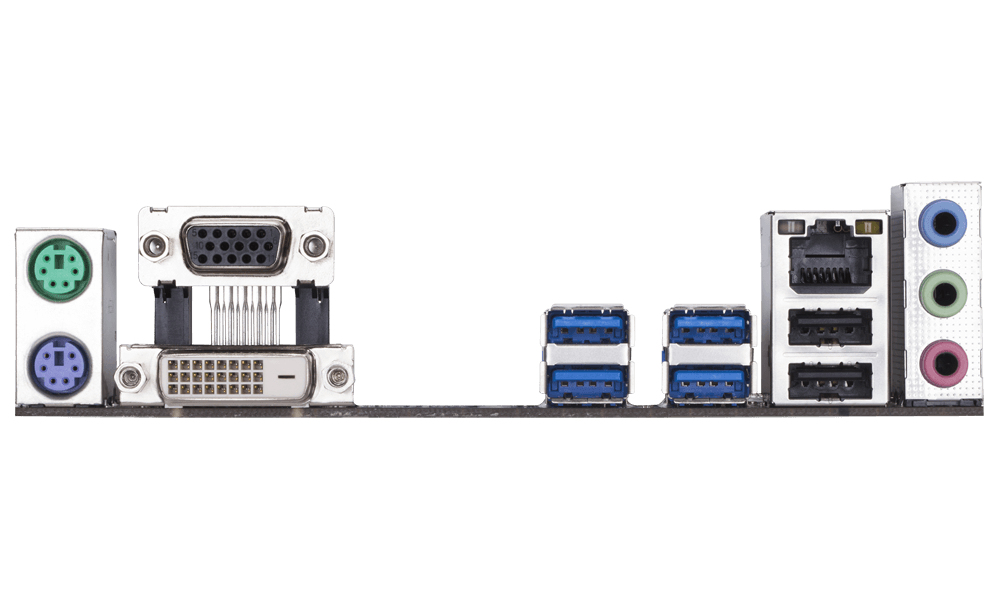

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity2
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity0
DVI-D ports quantity1
Microphone inYes
USB connector typeUSB Type-A

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyIntel
Motherboard chipsetIntel B360 Express
Audio output channels2.0 channels
PC health monitoringCPU, Fan, Temperature, Voltage
Cooling typePassive
Power source typeATX

Expansion slots

PCI Express x1 slots2
PCI Express x16 slots1

BIOS

BIOS typeUEFI AMI
ACPI version5.0

Processor special features

Intel Extreme Memory Profile (XMP)Yes
Intel® Optane™ Memory ReadyYes

Weight & dimensions

Width205 mm
Depth226 mm

Packaging content

ManualYes

Other features

Ethernet LAN connectors1
Serial port via internal headerYes
