GIGABYTE AMD 780G + SB700

GIGABYTE AMD 780G + SB700

Model AMD 780G + SB700Part no. GA-MA78GM-US2HEAN 818313007278

49 specifications
  • Processor manufacturerAMD
  • Number of memory slots4
  • RAID levelsJBOD
  • Graphics cardRadeon HD 3200
  • LAN controllerRealtek RTL8111C
  • Motherboard form factormicro ATX
See all specifications

Overview

Processor manufacturer
AMD
Number of memory slots
4
RAID levels
JBOD
Graphics card
Radeon HD 3200
LAN controller
Realtek RTL8111C
Motherboard form factor
micro ATX
Brand
GIGABYTE
Category
Motherboard
Model
AMD 780G + SB700
Part number
GA-MA78GM-US2H
EAN / UPC
818313007278, 4719331848217
Also known as
GIGABYTE AMD 780G + SB700 Socket AM2 micro ATX

Specifications

49 specifications in 12 groups

Processor

Processor manufacturerAMD
Processor socketSocket AM2

Memory

Number of memory slots4
Memory voltage1.8 V
Maximum internal memory16 GB
Controller typeITE IT8718

Storage controllers

RAID levelsJBOD

Graphics

Graphics cardRadeon HD 3200

Internal I/O

USB 2.0 connectors4
Number of SATA connectors5
S/PDIF out connectorYes
Front panel audio connectorYes
CD/AUX audio inYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Chassis intrusion connectorYes
Number of IEEE1394 connectors2

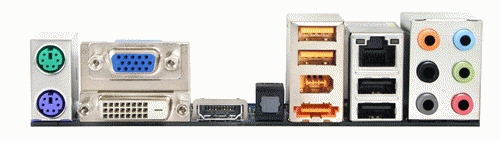

Rear panel I/O ports

USB 2.0 ports quantity4
Ethernet LAN (RJ-45) ports1
eSATA ports quantity1
PS/2 ports quantity2
Firewire (IEEE 1394) ports1
VGA (D-Sub) ports quantity1
HDMI ports quantity1
DVI-D ports quantity1
Headphone outputs6
Microphone inYes
S/PDIF out portYes
Parallel ports quantity1
Serial ports quantity1

Network

LAN controllerRealtek RTL8111C
Networking features10/100/1000 Mbit

Features

Motherboard form factormicro ATX
Motherboard chipsetAMD 780G
Audio chipRealtek ALC889A
Audio output channels7.1 channels
Power source typeATX
Compatible operating systemsWin Vista, XP

Expansion slots

PCI Express x16 slots1
PCI slots2

Weight & dimensions

Width244 mm
Depth244 mm

Packaging content

Drivers includedYes
Bundled softwareNorton Internet Security

Other features

S/PDIF in portYes
Dimensions (WxDxH)244 x 244 x 0 mm
Floppy disk drive connectorYes
Special features106dB SNR ALC889A HD HDCP Support DDR2 1200/1066/800/667 MHz Q-Flash Virtual Dual BIOS Q-Share EasyTune Easy Energy Saver Xpress Install Download Center
I/O ports1x IDE 1x 4-pin ATX 1x system fan 1x North Bridge fan 1x front panel header 1x power LED header
