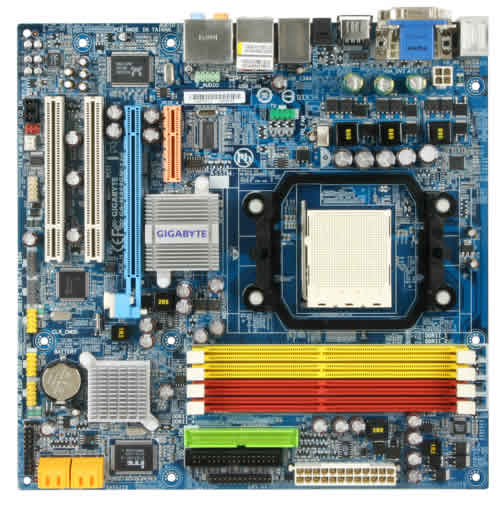

GIGABYTE AMD 690G chipset
Model AMD 690G chipsetPart no. GA-MA69GM-S2HEAN 4719331823238
43 specifications
- Processor manufacturerAMD
- Number of memory slots4
- Parallel processing technology supportNot supported
- USB 2.0 connectors6
- Motherboard form factormicro ATX
- BIOS typeAWARD
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 4
- Parallel processing technology support
- Not supported
- USB 2.0 connectors
- 6
- Motherboard form factor
- micro ATX
- BIOS type
- AWARD
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- AMD 690G chipset
- Part number
- GA-MA69GM-S2H
- EAN / UPC
- 4719331823238
- Also known as
- GIGABYTE AMD 690G chipset Socket AM2 micro ATX
Specifications
43 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM2 |
| Processor system buses supported | 2000 MHz |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| ECC сompatibility | Non-ECC |
| Maximum internal memory | 16 GB |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | Not supported |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 6 |
| Number of SATA connectors | 4 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector | Yes |
| Number of COM connectors | 1 |
| Number of IEEE1394 connectors | 2 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 1 |
| DVI-D ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| Digital audio optical out | 1 |
| COM ports quantity | 1 |
| Parallel ports quantity | 1 |
| Serial ports quantity | 1 |
| WiFi-AP antenna jack | No |
| Modem (RJ-11) ports | 0 |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Audio chip | Realtek ALC889A |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1 PCI Express x 16 slot 1 PCI Express x 4 slot 2 PCI slot |
BIOS
| Specification | Value |
|---|---|
| BIOS type | AWARD |
Other features
| Specification | Value |
|---|---|
| S/PDIF in port | Yes |
| Audio output | SPDIF |
| Floppy disk drive connector | Yes |
| GAME/MIDI connector | No |
