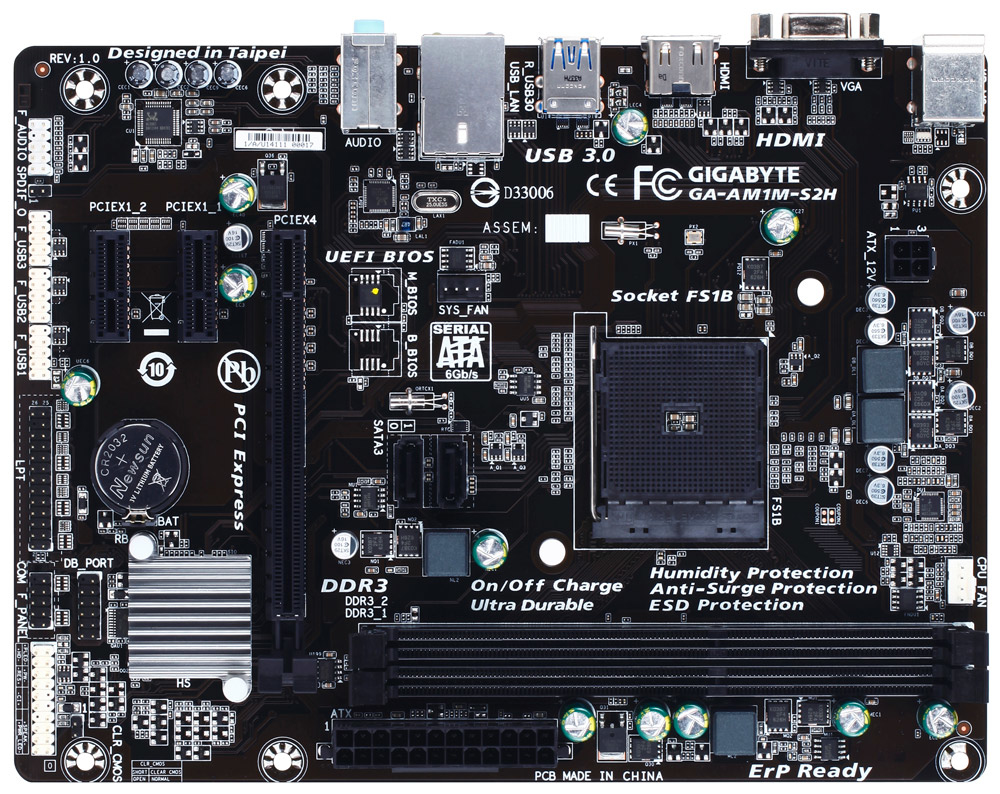

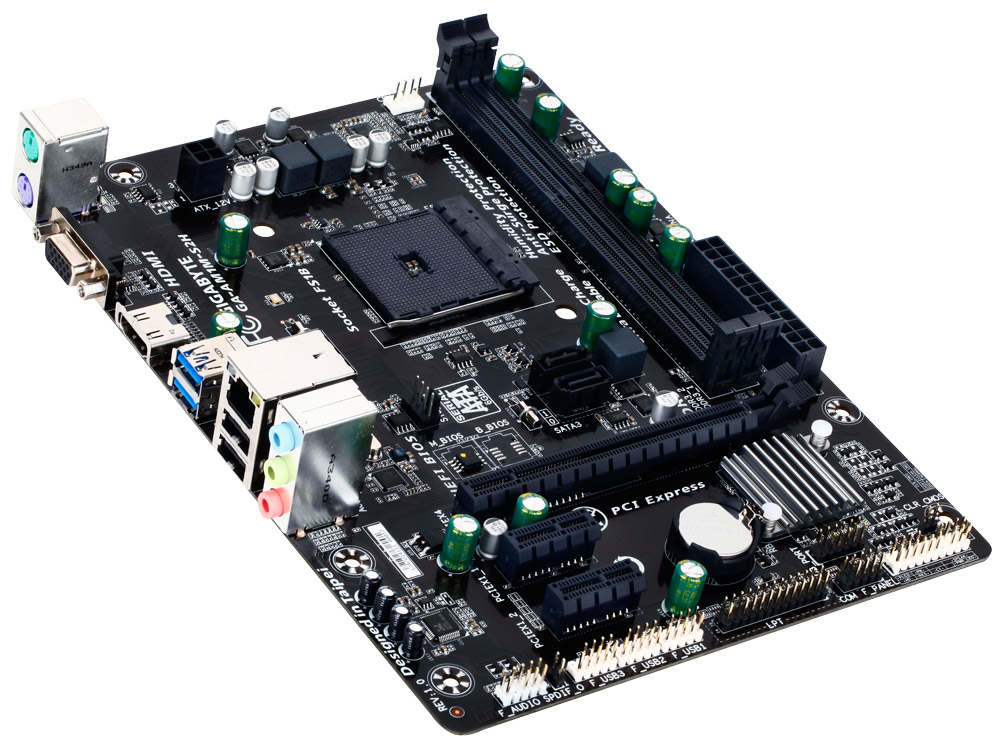

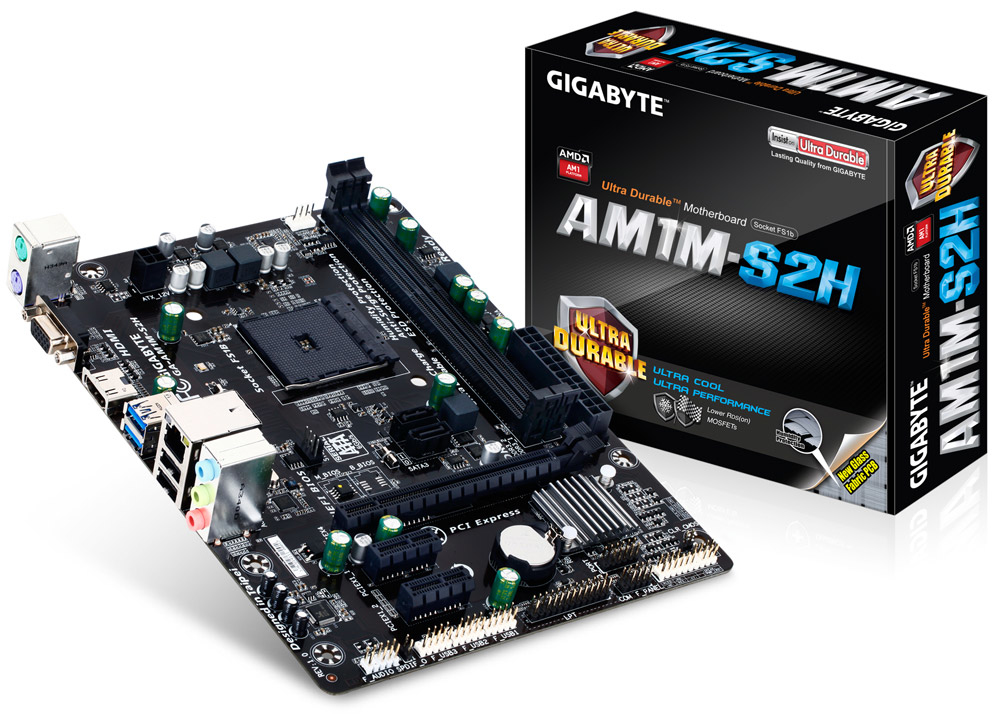

GIGABYTE AM1M-S2H motherboard Socket AM1 micro ATX
Model AM1M-S2HEAN 818313020123
45 specifications
- Processor manufacturerAMD
- Supported memory typesDDR3-SDRAM
- Supported storage drive interfacesSATA III
- On-board graphics cardNo
- USB 2.0 connectors3
- USB 2.0 ports quantity2
Overview
- Processor manufacturer
- AMD
- Supported memory types
- DDR3-SDRAM
- Supported storage drive interfaces
- SATA III
- On-board graphics card
- No
- USB 2.0 connectors
- 3
- USB 2.0 ports quantity
- 2
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- AM1M-S2H
- Part number
- AM1M-S2H
- EAN / UPC
- 818313020123, 8183130201232
- Also known as
- GIGABYTE AM1M-S2H motherboard Socket AM1 micro ATX
Specifications
45 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM1 |
| Compatible processor series | AMD Athlon, AMD Sempron |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR3-SDRAM |
| Memory slots type | DIMM |
| Memory voltage | 1.5 V |
| Supported memory clock speeds | 1333,1600 MHz |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA III |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | No |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| Number of SATA III connectors | 2 |
| Number of SATA II connectors | 0 |
| Number of SATA connectors | 2 |
| Number of Parallel ATA connectors | 0 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Parallel connector | Yes |

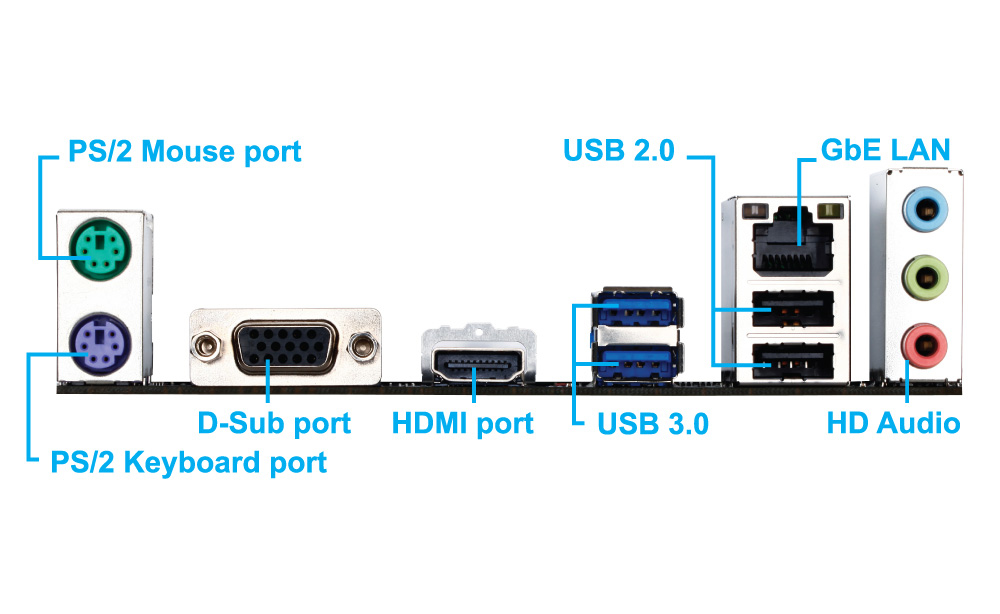

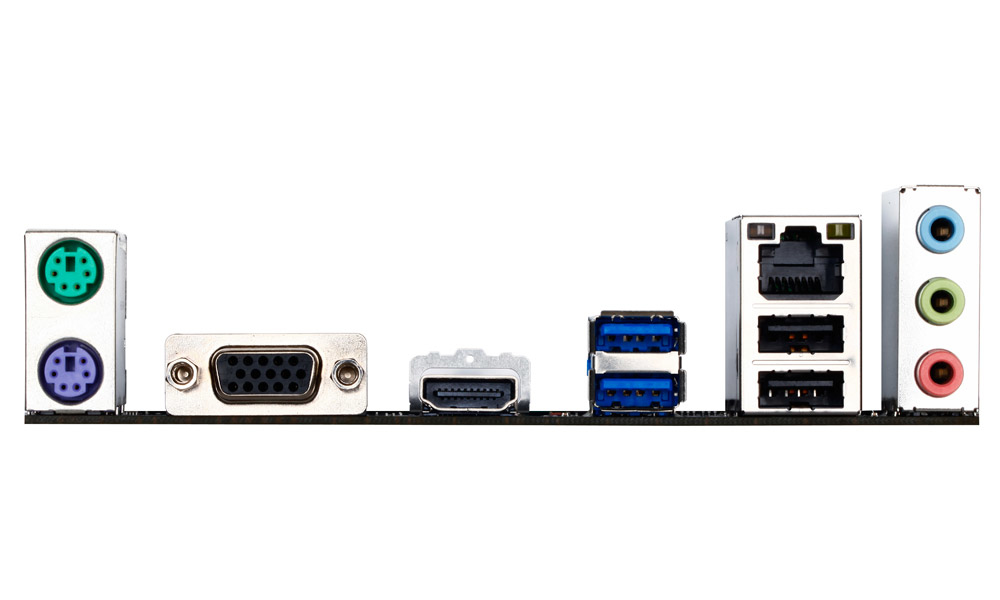

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 1 |
| Microphone in | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |

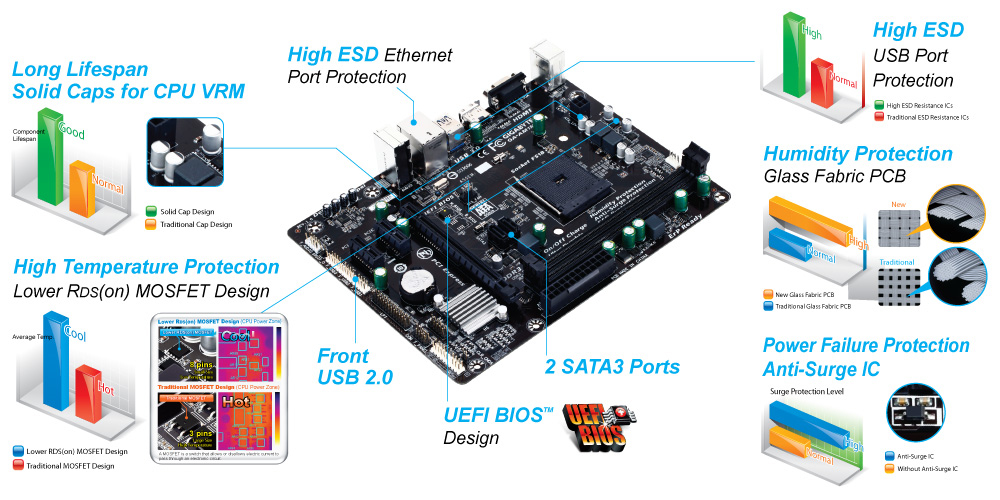

Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | AMD |
| Audio chip | Realtek ALC887 |
| Audio output channels | 7.1 channels |
| Cooling type | Passive |
| Power source type | ATX |
| Windows operating systems supported | Yes |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 2 |
| PCI Express x16 slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI AMI |
| ACPI version | 2.0a |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 226 mm |
| Depth | 170 mm |
What people say
Reviews & ratings
GIGABYTE AM1M-S2H motherboard Socket AM1 micro ATX
No reviews yet
Be the first to tell others how GIGABYTE AM1M-S2H motherboard Socket AM1 micro ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare GIGABYTE AM1M-S2H motherboard Socket AM1 micro ATX
All motherboard comparisons- GIGABYTE AM1M-S2H motherboard Socket AM1 micro ATX vsGIGABYTE GA-H61M-S (rev. 1.0)Compare specs
- GIGABYTE AM1M-S2H motherboard Socket AM1 micro ATX vsGIGABYTE GA-AM1M-S2H motherboard Socket AM1 micro ATXCompare specs
- GIGABYTE AM1M-S2H motherboard Socket AM1 micro ATX vsGIGABYTE GA-J1800N-D2P motherboard NA (integrated CPU) mini ITXCompare specs
- GIGABYTE AM1M-S2H motherboard Socket AM1 micro ATX vsGIGABYTE GA-H81M-H (rev. 1.0)Compare specs

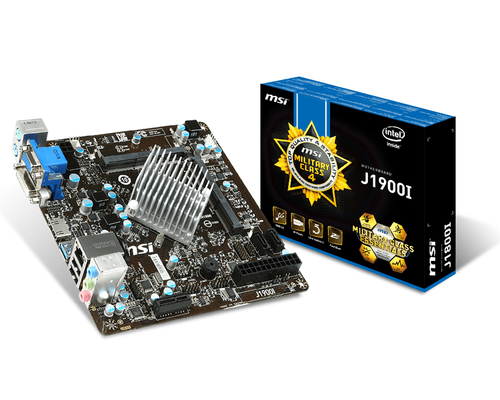

- GIGABYTE AM1M-S2H motherboard Socket AM1 micro ATX vsMSI J1900I NA (integrated CPU) mini ITXCompare specs
