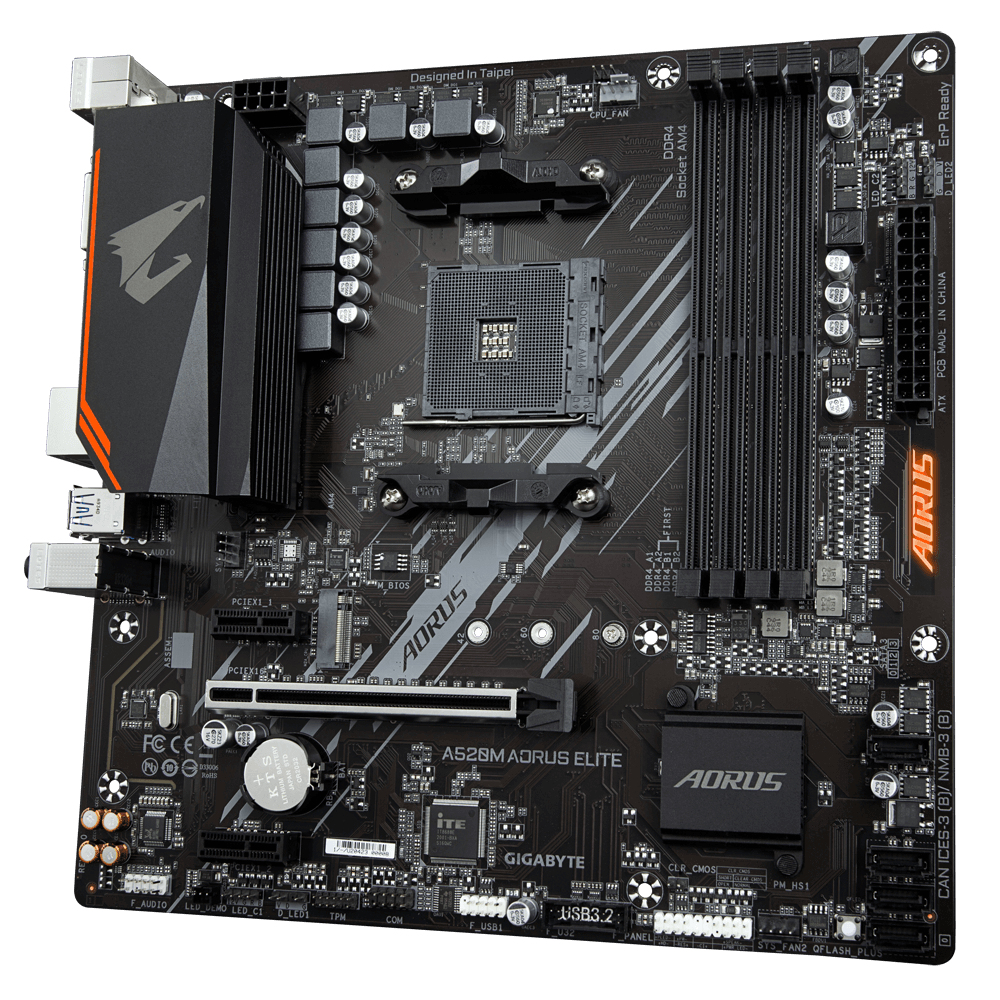

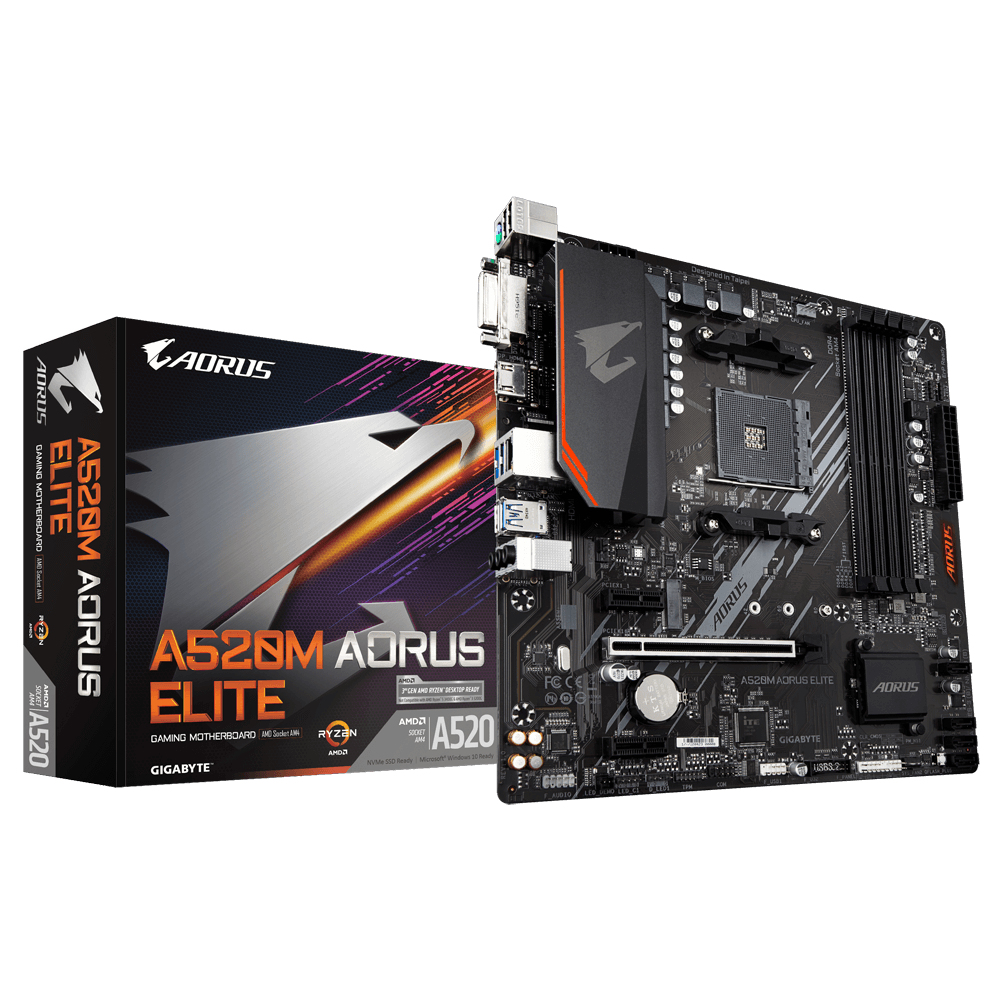

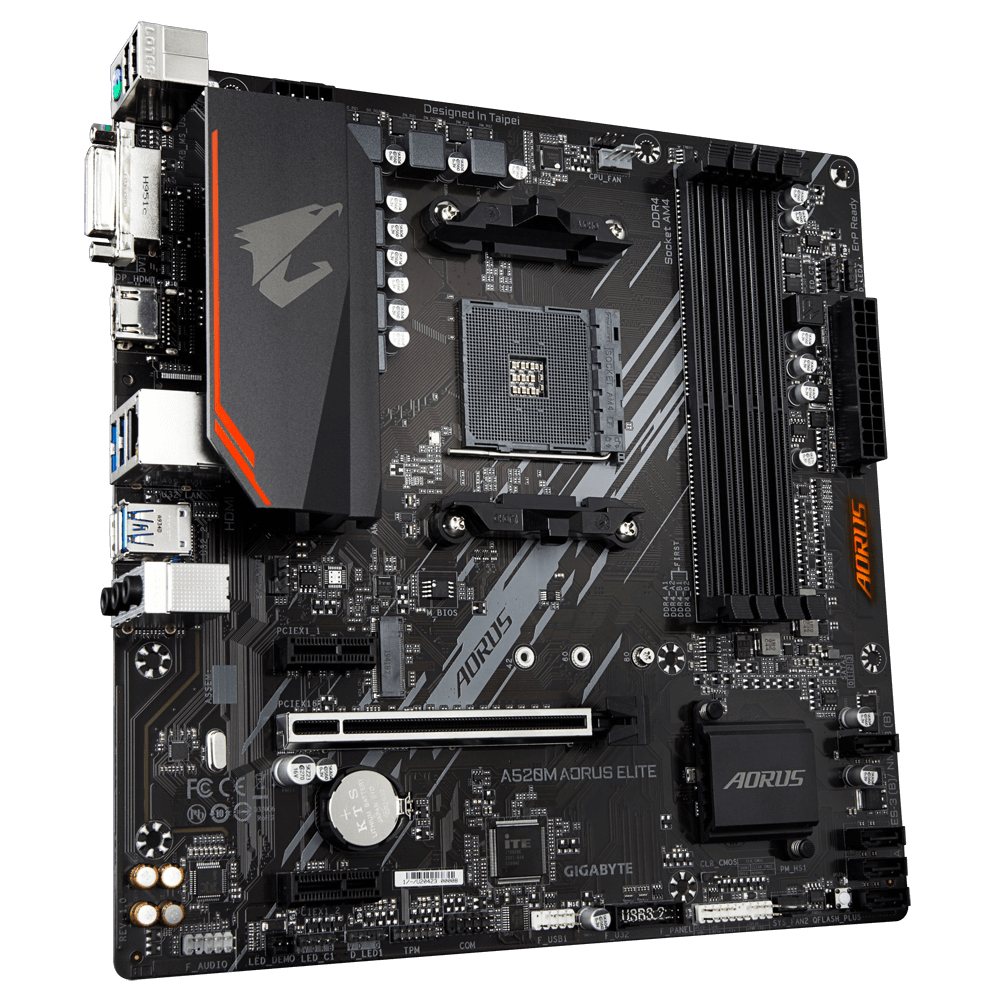

A520M AORUS ELITE
Model A520M AORUS ELITEEAN 889523023631
59 specifications
- Processor manufacturerAMD
- Supported memory typesDDR4-SDRAM
- Supported storage drive typesHDD & SSD
- USB 2.0 connectors1
- USB 2.0 ports quantity2
- Ethernet LANYes
Overview
- Processor manufacturer
- AMD
- Supported memory types
- DDR4-SDRAM
- Supported storage drive types
- HDD & SSD
- USB 2.0 connectors
- 1
- USB 2.0 ports quantity
- 2
- Ethernet LAN
- Yes
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- A520M AORUS ELITE
- Part number
- A520M AORUS ELITE
- EAN / UPC
- 889523023631
- Also known as
- GIGABYTE A520M AORUS ELITE motherboard AMD A520 Socket AM4 micro ATX
Specifications
59 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM4 |
| Compatible processor series | AMD Ryzen 3000 Series, AMD Ryzen 5000 Series |
| Maximum number of SMP processors | 1 |
| Supported processor sockets | Socket AM4 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speeds | 2133,2400,2667,2933,3200,3300,3333,3400,3466,3600,3733,3800,3866,4000,4266 MHz |
| Maximum internal memory | 128 GB |
| Unbuffered memory | Yes |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Number of SATA III connectors | 4 |
| Number of SATA II connectors | 0 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| EPS power connector (8-pin) | Yes |
| Serial port headers | 1 |

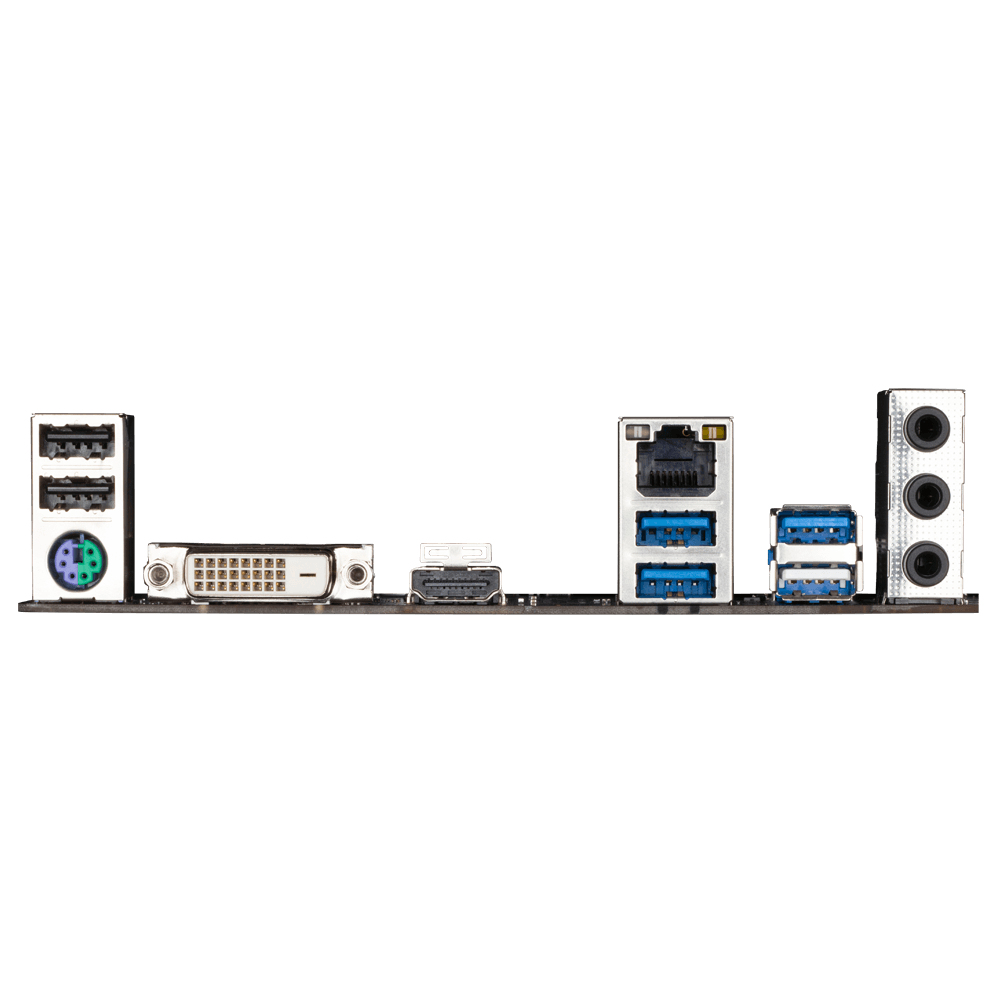

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 0 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Wi-Fi | No |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD A520 |
| Audio chip | Realtek ALC887 |
| Audio output channels | 5.1 channels |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | AMI |
| BIOS memory size | 128 Mbit |
| ACPI version | 5.0 |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 244 mm |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | Norton Internet Security Realtek 8118 Gaming LAN Bandwidth Control Utility |
