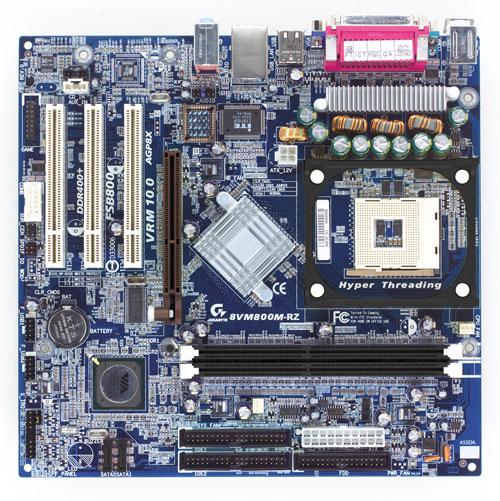

GIGABYTE 8VM800M-RZ VIA PM800 Socket 478 micro ATX
Model 8VM800M-RZPart no. GA-8VM800M-RZ
12 specifications
- Processor manufacturerIntel
- Maximum internal memory2 GB
- Networking featuresVIA 6103L PHY
- Motherboard form factormicro ATX
Overview
- Processor manufacturer
- Intel
- Maximum internal memory
- 2 GB
- Networking features
- VIA 6103L PHY
- Motherboard form factor
- micro ATX
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- 8VM800M-RZ
- Part number
- GA-8VM800M-RZ
- Also known as
- GIGABYTE 8VM800M-RZ VIA PM800 Socket 478 micro ATX
Specifications
12 specifications in 7 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | Socket 478 |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory | 2 GB |
Network
| Specification | Value |
|---|---|
| Networking features | VIA 6103L PHY |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Motherboard chipset | VIA PM800 |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1 x AGP 8X/4X slot 5 x PCI slots (PCI 2.2 compliant) |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | Norton Internet Security Norton Anti-Virus Norton Personal Firewall Norton Privacy Control Norton Parental Control Norton Spam Alert GIGABYTE Windows Utility Manager Adobe Acrobat Reader |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 230 x 244 |
| Audio output | C-Media 9761 codec chip |
| I/O ports | Internal I/O Connectors 2 x USB 2.0/1.1 connectors (4 ports by cable) S/P DIF input/output pin header 2 x Serial ATA port 2 x UDMA ATA 133/100/66 Bus Master IDE connector 1 x FDD connector 1 x CD/AUX in 1 x Game/Midi connector Rear Panel I/O 1 x VGA port 4 x USB 2.0 ports 1 x RJ45 LAN port 1 x LPT p |
