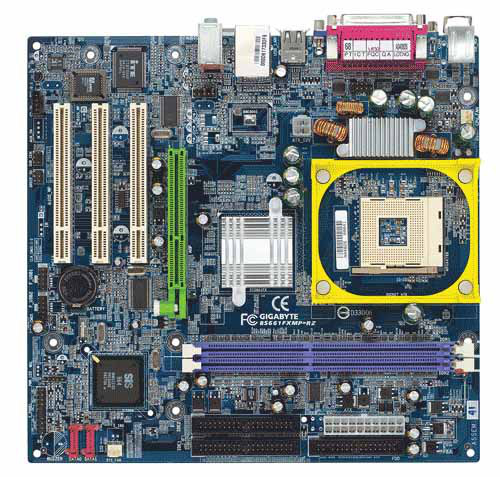

GIGABYTE 8S661FXMP-RZ motherboard Socket 478 micro ATX
Model 8S661FXMP-RZ
27 specifications
- Processor manufacturerIntel
- Number of memory slots2
- Networking featuresICS1883 LAN
- Motherboard form factormicro ATX
- Expansion slots1 x AGP 8X/4X 3 x PCI (PCI 2.2)
- Width234 mm
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 2
- Networking features
- ICS1883 LAN
- Motherboard form factor
- micro ATX
- Expansion slots
- 1 x AGP 8X/4X 3 x PCI (PCI 2.2)
- Width
- 234 mm
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- 8S661FXMP-RZ
- Part number
- 8S661FXMP-RZ
- Also known as
- GIGABYTE 8S661FXMP-RZ motherboard Socket 478 micro ATX
Specifications
27 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | Socket 478 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| Maximum internal memory | 2 GB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 2 |
| Number of Parallel ATA connectors | 2 |
| S/PDIF out connector | Yes |
| CD/AUX audio in | Yes |
| Number of COM connectors | 1 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Parallel ports quantity | 1 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking features | ICS1883 LAN |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1 x AGP 8X/4X 3 x PCI (PCI 2.2) |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 234 mm |
| Depth | 244 mm |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | Norton Internet Security - Norton Anti-Virus - Norton Personal Firewall - Norton Privacy Control - Norton Parental Control - Norton Spam Alert GIGABYTE Windows Utility Manager Adobe Acrobat Reader |
Other features
| Specification | Value |
|---|---|
| Audio output | Realtek 655 Codec |
| Floppy disk drive connector | Yes |
