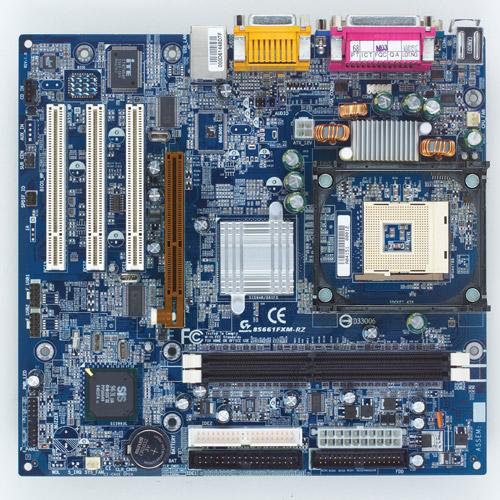

GIGABYTE 8S661FXM-RZ Socket 478 micro ATX
Model 8S661FXM-RZPart no. GA-8S661FXM-RZEAN 4719331810108
11 specifications
- Processor manufacturerIntel
- Maximum internal memory2 GB
- Networking featuresICS1883 LAN chip
- Motherboard form factormicro ATX
Overview
- Processor manufacturer
- Intel
- Maximum internal memory
- 2 GB
- Networking features
- ICS1883 LAN chip
- Motherboard form factor
- micro ATX
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- 8S661FXM-RZ
- Part number
- GA-8S661FXM-RZ
- EAN / UPC
- 4719331810108
- Also known as
- GIGABYTE 8S661FXM-RZ Socket 478 micro ATX
Specifications
11 specifications in 7 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | Socket 478 |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory | 2 GB |
Network
| Specification | Value |
|---|---|
| Networking features | ICS1883 LAN chip |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1 x AGP 8X/4X slot 3 x PCI slots (PCI 2.2 compliant) |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | Norton Internet Security Norton Anti-Virus Norton Personal Firewall Norton Privacy Control Norton Parental Control Norton Spam Alert GIGABYTE Windows Utility Manager Adobe Acrobat Reader |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 232 x 244 |
| Audio output | CMedia 9761A Codec chip |
| I/O ports | Internal I/O Connectors 2 x USB2.0 connectors (4 ports by cable) S/P DIF input/output connector (by optional cable) 2 x UDMA ATA 133/100/66 Bus Master IDE ports 1 x FDD port CD / AUX in connector 1 x COM port Rear Panel I/O 1 x VGA port 2 x USB 2.0 ports 1 x RJ45 LAN port 1 x LPT port 3 x Audio port |
