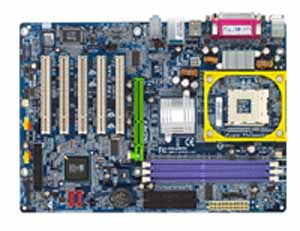

8S648FXP-RZ Socket 478 ATX
Model 8S648FXP-RZPart no. GA-8S648FX-PRZ
11 specifications
- Processor manufacturerIntel
- Maximum internal memory3 GB
- Networking featuresICS 1883
- Motherboard form factorATX
Overview
- Processor manufacturer
- Intel
- Maximum internal memory
- 3 GB
- Networking features
- ICS 1883
- Motherboard form factor
- ATX
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- 8S648FXP-RZ
- Part numbers
- GA-8S648FX-PRZ, 8S648FXP-RZ
- Also known as
- GIGABYTE 8S648FXP-RZ Socket 478 ATX
Specifications
11 specifications in 7 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | Socket 478 |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory | 3 GB |
Network
| Specification | Value |
|---|---|
| Networking features | ICS 1883 |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1 x AGP 8x/4x, 5 x PCI slots (PCI 2.2 compliant) |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | 1. Norton Internet Security 1. Norton Anti-Virus 2. Norton Personal Firewall 3. Norton Privacy Control 4. Norton Parental Control 5. Norton Spam Alert 2. GIGABYTE Windows Utility Manager 3. Adobe Acrobat Reader |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 295 x 209 |
| Audio output | AC97(Realtek ALC655) |
| I/O ports | Internal I/O Connectors 1. 2 x Serial ATA ports 2. 2 x USB 2.0/1.1 connectors (4 ports by cable) 3. S/P DIF output connector (by optional cable) 4. 2 x UDMA ATA 133/100/66 Bus Master IDE ports 5. 1 x FDD port 6. CD/AUX in Rear Panel I/O 1. 2 x USB 2.0/1.1 ports 2. 1 x LPT port 3. 1 x RJ45 LAN port 4 |
