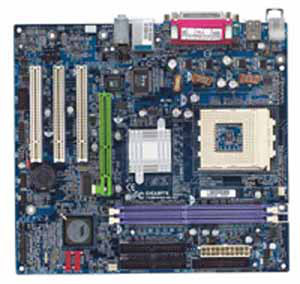

7VM400AM-RZ motherboard Socket A (462) micro ATX
Model 7VM400AM-RZ
11 specifications
- Processor manufacturerAMD
- Maximum internal memory2 GB
- Networking featuresVIA 6103(phy)
- Motherboard form factormicro ATX
Overview
- Processor manufacturer
- AMD
- Maximum internal memory
- 2 GB
- Networking features
- VIA 6103(phy)
- Motherboard form factor
- micro ATX
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- 7VM400AM-RZ
- Part number
- 7VM400AM-RZ
- Also known as
- GIGABYTE 7VM400AM-RZ motherboard Socket A (462) micro ATX
Specifications
11 specifications in 7 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket A (462) |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory | 2 GB |
Network
| Specification | Value |
|---|---|
| Networking features | VIA 6103(phy) |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1 x AGP (8X/4X-AGP 3.0 compliant),3 x PCI slots (PCI 2.2 compliant) |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | # Norton Internet Security 1. Norton Anti Virus 2. Norton Personal Firewall 3. Norton Privacy Control 4. Norton Parental Control 5. Norton Spam Alert # GIGABYTE Windows Utility Manager # Adobe Acrobat Reader |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 243 x 222 |
| Audio output | AC97 (VIA1617) |
| I/O ports | # 1 x FDD port # 2 x S-ATA connectors # 2 x UDMA ATA133/100/66 Bus Master IDE ports # 2 x USB 2.0 connectors (support 4 ports) # 1 x Game/ Midi connector # 1 x Com connector # PS/2 Keyboard / Mouse # 1 x VGA port # 1 x RJ45 port # 4 x USB 2.0 ports # 1 x COM port # Audio (1 x Line-in / 1 x Line-out |
