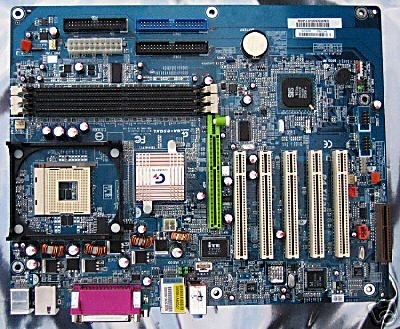

Fujitsu GA-8SGXL Motherboard
Model GA-8SGXL MotherboardPart no. FSP:140000485
24 specifications
- Processor manufacturerIntel
- Number of memory slots3
- S/PDIF out connectorYes
- USB 2.0 ports quantity2
- Motherboard form factorATX
- Width304 mm
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 3
- S/PDIF out connector
- Yes
- USB 2.0 ports quantity
- 2
- Motherboard form factor
- ATX
- Width
- 304 mm
- Brand
- Fujitsu
- Category
- Motherboard
- Model
- GA-8SGXL Motherboard
- Part numbers
- FSP:140000485, FSP:140000493
- Also known as
- Fujitsu GA-8SGXL Motherboard Socket 478 ATX
Specifications
24 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | Socket 478 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 3 |
| Controller type | IT8705F |
| Flash memory | 2 MB |
Internal I/O
| Specification | Value |
|---|---|
| S/PDIF out connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| Microphone in | Yes |
| COM ports quantity | 2 |
| Parallel ports quantity | 1 |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1 x AGP 4X/8X (1.5V) 5 x PCI 33MHz & PCI 2.2 1 x CNR |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 304 mm |
| Depth | 243 mm |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 304 x 243 |
| Floppy disk drive connector | Yes |
What people say
Reviews & ratings
Fujitsu GA-8SGXL Motherboard
No reviews yet
Be the first to tell others how Fujitsu GA-8SGXL Motherboard works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare Fujitsu GA-8SGXL Motherboard
All motherboard comparisons- Fujitsu GA-8SGXL Motherboard vsFujitsu Mainboard D1064-ACompare specs
- Fujitsu GA-8SGXL Motherboard vsFujitsu GA-7VAXFS MotherboardCompare specs

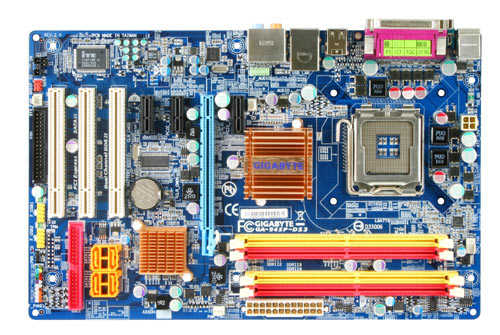

- Fujitsu GA-8SGXL Motherboard vsGIGABYTE GA-945P-DS3 (rev. 2.0)Compare specs

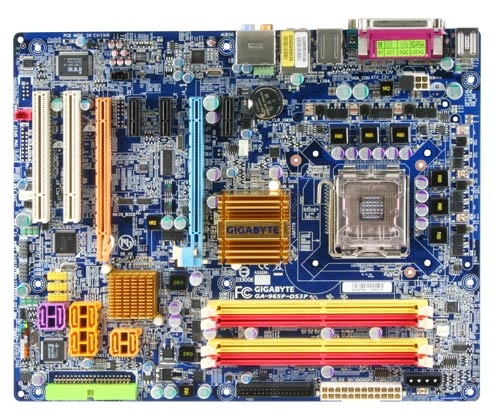

- Fujitsu GA-8SGXL Motherboard vsGIGABYTE GA-965P-DS3P (rev. 2.0)Compare specs
- Fujitsu GA-8SGXL Motherboard vsGIGABYTE GA-M61P-S3 motherboard Socket AM2 ATXCompare specs

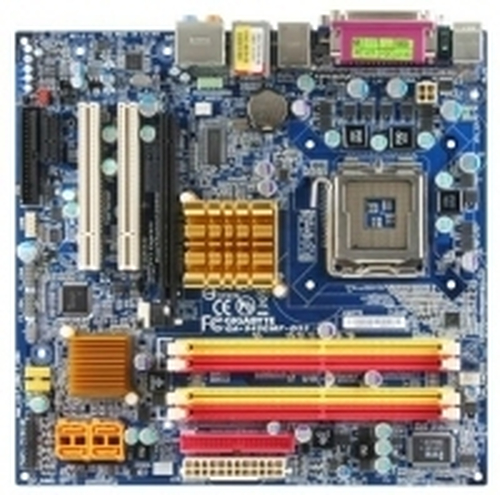

- Fujitsu GA-8SGXL Motherboard vsGIGABYTE GA-945GMF-DS2 LGA 775 (Socket T) micro ATXCompare specs
