Fujitsu GA-7VAXFS Motherboard
Model GA-7VAXFS MotherboardPart no. FSP:140000465
25 specifications
- Processor manufacturerAMD
- Number of memory slots3
- USB 2.0 connectors4
- USB 2.0 ports quantity2
- Networking featuresEthernet, Fast Ethernet
- Motherboard form factorATX
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 3
- USB 2.0 connectors
- 4
- USB 2.0 ports quantity
- 2
- Networking features
- Ethernet, Fast Ethernet
- Motherboard form factor
- ATX
- Brand
- Fujitsu
- Category
- Motherboard
- Model
- GA-7VAXFS Motherboard
- Part number
- FSP:140000465
- Also known as
- Fujitsu GA-7VAXFS Motherboard VIA KT400 Socket A (462) ATX
Specifications
25 specifications in 7 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket A (462) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 3 |
| Maximum internal memory | 3 GB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 4 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Parallel ports quantity | 1 |
| Serial ports quantity | 2 |
Network
| Specification | Value |
|---|---|
| Networking features | Ethernet, Fast Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Motherboard chipset | VIA KT400 |
| Audio chip | Realtek ALC650 |
| Power source type | ATX |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 243 x 305 |
| Floppy disk drive connector | Yes |
What people say
Reviews & ratings
Fujitsu GA-7VAXFS Motherboard
No reviews yet
Be the first to tell others how Fujitsu GA-7VAXFS Motherboard works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare Fujitsu GA-7VAXFS Motherboard
All motherboard comparisons- Fujitsu GA-7VAXFS Motherboard vsFujitsu Mainboard D1215Compare specs
- Fujitsu GA-7VAXFS Motherboard vsFujitsu AX63 ProCompare specs
- Fujitsu GA-7VAXFS Motherboard vsFujitsu Mainboard D1064-ACompare specs
- Fujitsu GA-7VAXFS Motherboard vsFujitsu GA-8SGXL MotherboardCompare specs

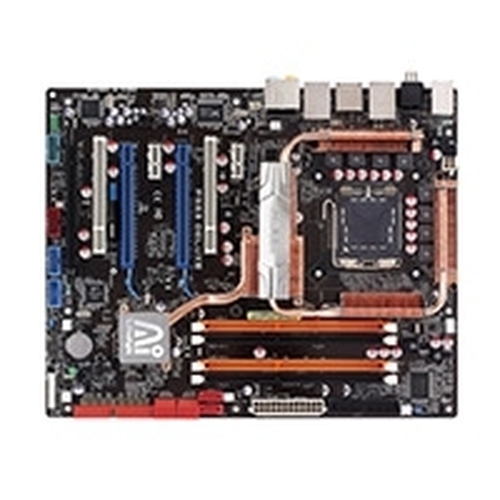

- Fujitsu GA-7VAXFS Motherboard vsASUS P5E3 Deluxe / DDR3Compare specs

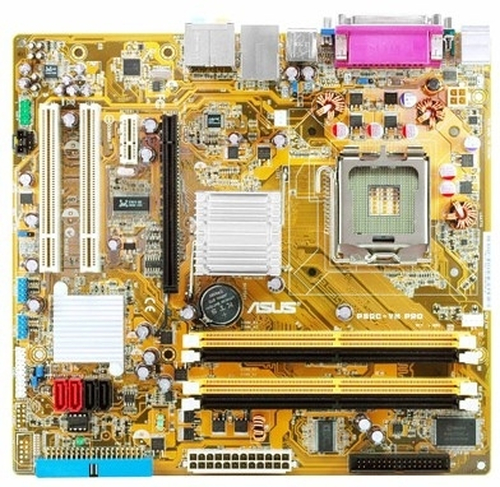

- Fujitsu GA-7VAXFS Motherboard vsASUS P5GC-VM PROCompare specs

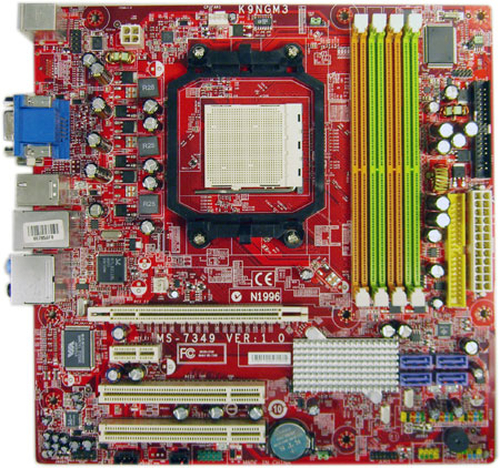

- Fujitsu GA-7VAXFS Motherboard vsMSI K9NGM3-FD Socket AM2 micro ATXCompare specs

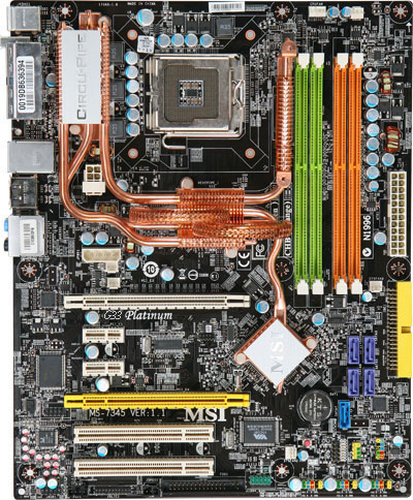

- Fujitsu GA-7VAXFS Motherboard vsMSI G33 PlatinumCompare specs
