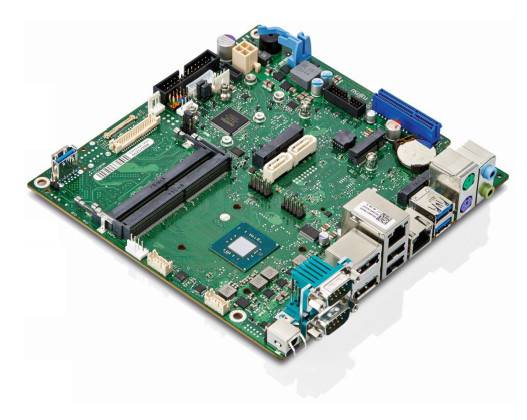

D3543-S3-J5005 BGA 1090 mini ITX
Model D3543-S3-J5005Part no. S26361-F5120-V153EAN 5715063678404
43 specifications
- ProcessorJ5005
- Processor manufacturerIntel
- Supported memory typesDDR4-SDRAM
- Supported storage drive typesHDD & SSD
- USB 2.0 connectors2
- Ethernet LANYes
Overview
- Processor
- J5005
- Processor manufacturer
- Intel
- Supported memory types
- DDR4-SDRAM
- Supported storage drive types
- HDD & SSD
- USB 2.0 connectors
- 2
- Ethernet LAN
- Yes
- Brand
- Fujitsu
- Category
- Motherboard
- Model
- D3543-S3-J5005
- Part number
- S26361-F5120-V153
- EAN / UPC
- 5715063678404
- Also known as
- Fujitsu D3543-S3-J5005 BGA 1090 mini ITX
Specifications
43 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | BGA 1090 |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® |
| Processor model | J5005 |
| Processor cores | 4 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | SO-DIMM |
| Supported memory clock speeds | 2133,2400 MHz |
| Maximum internal memory | 24 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
Graphics
| Specification | Value |
|---|---|
| Graphics card family | Intel |
| Graphics card | Intel® UHD Graphics 605 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Number of SATA III connectors | 2 |
| CPU fan connector | Yes |
| Parallel connector | Yes |
| Serial port headers | 1 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 2 |
| PS/2 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| DisplayPorts quantity | 2 |
| Serial ports quantity | 2 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Wake-on-LAN ready | Yes |
| Wi-Fi | No |
Features
| Specification | Value |
|---|---|
| Component for | Mini PC |
| Motherboard form factor | mini ITX |
| Motherboard chipset family | Intel |
BIOS
| Specification | Value |
|---|---|
| BIOS type | EFI AMI |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 170 mm |
| Depth | 170 mm |
