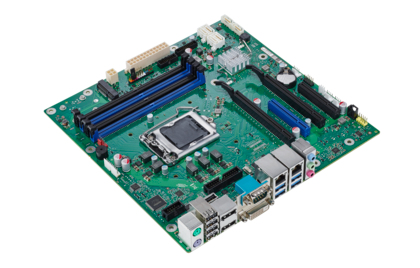

Fujitsu D3441-S motherboard Intel® Q170 LGA 1151 (Socket H4) micro ATX
Model D3441-S
68 specifications
- Processor manufacturerIntel
- Supported memory typesDDR4-SDRAM
- Supported storage drive interfacesSATA III
- Graphics cardHD Graphics
- USB 2.0 connectors2
- USB 2.0 ports quantity4
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR4-SDRAM
- Supported storage drive interfaces
- SATA III
- Graphics card
- HD Graphics
- USB 2.0 connectors
- 2
- USB 2.0 ports quantity
- 4
- Brand
- Fujitsu
- Category
- Motherboard
- Model
- D3441-S
- Part number
- D3441-S
- Also known as
- Fujitsu D3441-S motherboard Intel® Q170 LGA 1151 (Socket H4) micro ATX
Specifications
68 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1151 (Socket H4) |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® |
| Intel Core i3/i5/i7/i9 series | i3-6xxx, i5-6xxx, i7-6xxx |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Memory voltage | 1.2,2.5 V |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 2133 MHz |
| Maximum internal memory | 64 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA III |
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| Graphics card | HD Graphics |
| DirectX version | 12.0 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Number of SATA III connectors | 6 |
| Number of SATA II connectors | 0 |
| Number of Parallel ATA connectors | 0 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| 12V power connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 2 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 1 |
| DVI-I ports quantity | 0 |
| DisplayPorts quantity | 2 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Parallel ports quantity | 0 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Intel® I210-AT, Intel I219LM |
| Wake-on-LAN ready | Yes |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel® Q170 |
| Audio chip | Realtek ALC671 |
| Audio output channels | 5.1 channels |
| Power source type | ATX |
| Windows operating systems supported | Yes |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 2 |
| Mini PCI Express slots | 1 |
| Number of M.2 (M) slots | 0 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI AMI |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 243.8 mm |
| Depth | 243.8 mm |
Other features
| Specification | Value |
|---|---|
| mSATA ports quantity | 1 |
| S/PDIF in connector | No |
| Thermal Design Power (TDP) | 65 W |
What people say
Reviews & ratings
Fujitsu D3441-S motherboard Intel® Q170 LGA 1151 (Socket H4) micro ATX
No reviews yet
Be the first to tell others how Fujitsu D3441-S motherboard Intel® Q170 LGA 1151 (Socket H4) micro ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare Fujitsu D3441-S motherboard Intel® Q170 LGA 1151 (Socket H4) micro ATX
All motherboard comparisons- Fujitsu D3441-S motherboard Intel® Q170 LGA 1151 (Socket H4) micro ATX vsFujitsu D3348-B Intel® C612 LGA 2011-v3 ATXCompare specs
- Fujitsu D3441-S motherboard Intel® Q170 LGA 1151 (Socket H4) micro ATX vsFujitsu D3348-B2 motherboard Intel® C612 LGA 2011-v3 ATXCompare specs
- Fujitsu D3441-S motherboard Intel® Q170 LGA 1151 (Socket H4) micro ATX vsFujitsu D3041-A motherboard Intel® G41 LGA 775 (Socket T) micro ATXCompare specs
- Fujitsu D3441-S motherboard Intel® Q170 LGA 1151 (Socket H4) micro ATX vsFujitsu D3243-S motherboard Intel® Q87 LGA 1150 (Socket H3) mini ITXCompare specs

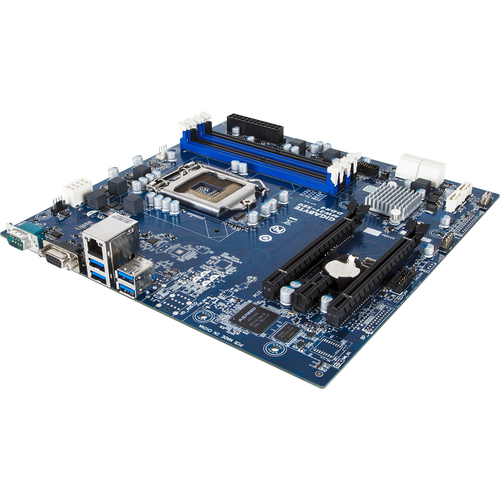

- Fujitsu D3441-S motherboard Intel® Q170 LGA 1151 (Socket H4) micro ATX vsGIGABYTE MW21-SE0 (rev. 1.0)Compare specs

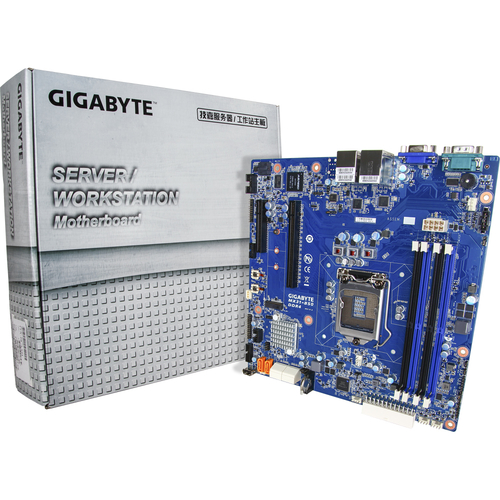

- Fujitsu D3441-S motherboard Intel® Q170 LGA 1151 (Socket H4) micro ATX vsGIGABYTE MX31-BS0 (rev. 1.1)Compare specs

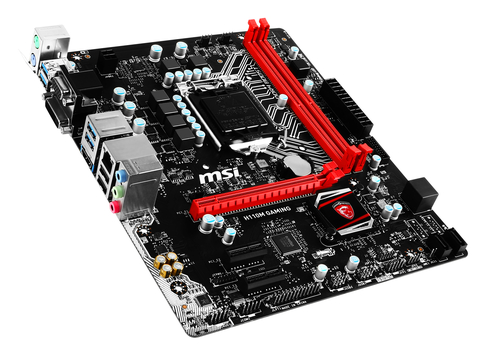

- Fujitsu D3441-S motherboard Intel® Q170 LGA 1151 (Socket H4) micro ATX vsMSI H110M GAMINGCompare specs

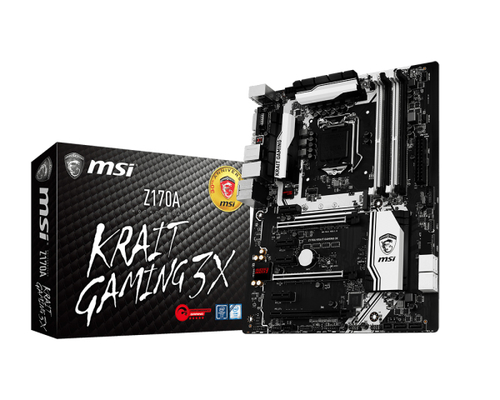

- Fujitsu D3441-S motherboard Intel® Q170 LGA 1151 (Socket H4) micro ATX vsMSI Z170A KRAIT GAMING 3XCompare specs
