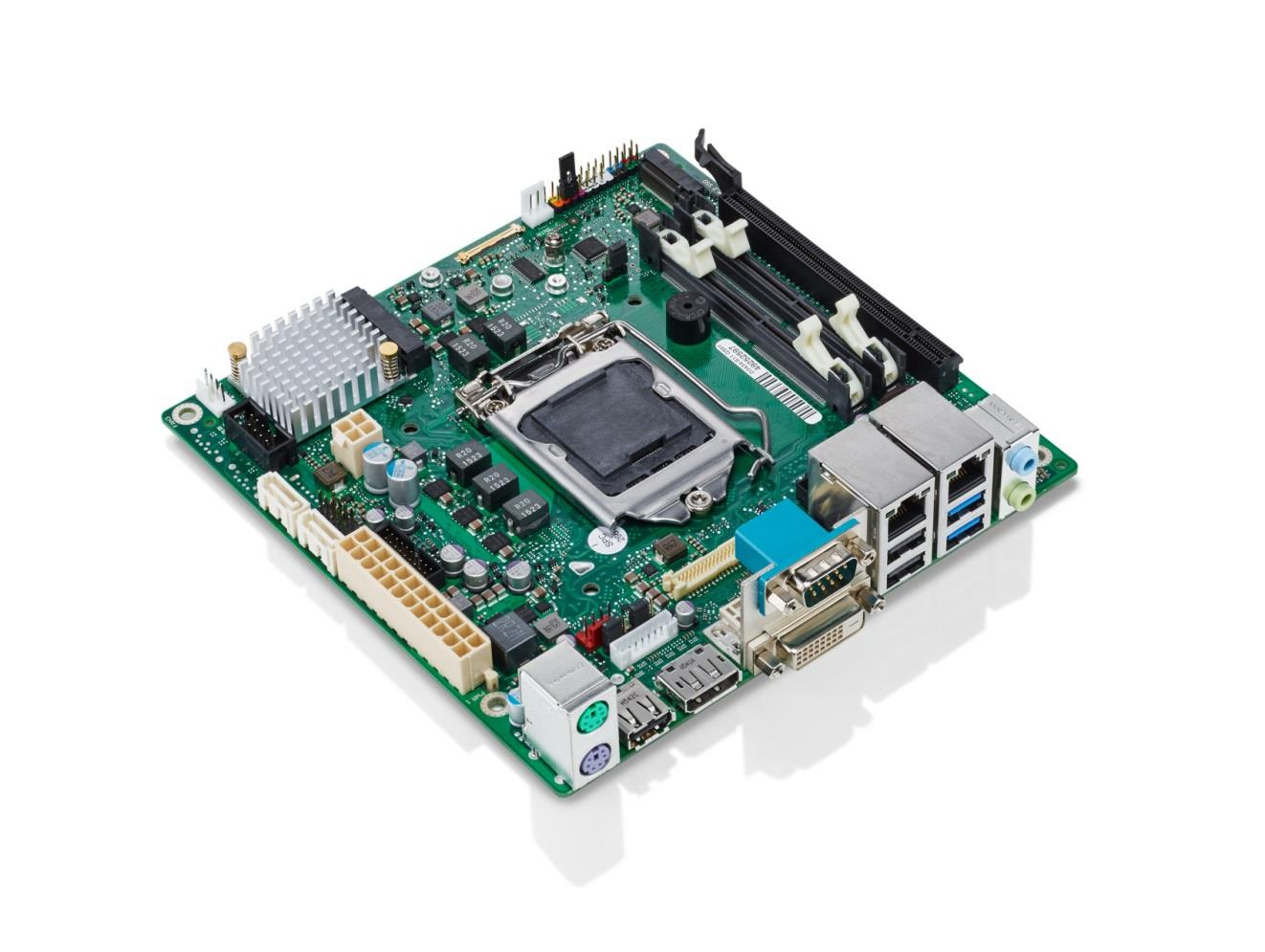

Fujitsu D3434-S22 motherboard Intel® H170 LGA 1151 (Socket H4) mini ITX
Model D3434-S22
62 specifications
- Processor manufacturerIntel
- Supported memory typesDDR4-SDRAM
- USB 2.0 connectors2
- USB 2.0 ports quantity3
- Ethernet LANYes
- Component forPC
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR4-SDRAM
- USB 2.0 connectors
- 2
- USB 2.0 ports quantity
- 3
- Ethernet LAN
- Yes
- Component for
- PC
- Brand
- Fujitsu
- Category
- Motherboard
- Model
- D3434-S22
- Part number
- D3434-S22
- Also known as
- Fujitsu D3434-S22 motherboard Intel® H170 LGA 1151 (Socket H4) mini ITX
Specifications
62 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1151 (Socket H4) |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® |
| Intel Core i3/i5/i7/i9 series | i3-6xxx, i5-6xxx, i7-6xxx |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | SO-DIMM |
| Memory channels | Dual-channel |
| Memory voltage | 1.2 V |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 2133 MHz |
| Maximum internal memory | 32 GB |
| Unbuffered memory | Yes |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Number of SATA III connectors | 2 |
| Number of SATA II connectors | 0 |
| Number of Parallel ATA connectors | 0 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Serial port headers | 1 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 2 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 0 |
| DVI-D ports quantity | 1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.2 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Parallel ports quantity | 0 |
| Serial ports quantity | 1 |
| Modem (RJ-11) ports | 0 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Intel® I210-AT, Intel I219LM |
| Wake-on-LAN ready | Yes |
| Wi-Fi | No |
| Bluetooth | No |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | mini ITX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel® H170 |
| Audio output channels | 5.1 channels |
| Power source type | ATX |
| Watch Dog function | Yes |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 (Gen 3.x) slots | 1 |
| Mini PCI Express slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI AMI |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 170 mm |
| Depth | 170 mm |
Other features
| Specification | Value |
|---|---|
| Number of M.2 (E) slots | 1 |
What people say
Reviews & ratings
Fujitsu D3434-S22 motherboard Intel® H170 LGA 1151 (Socket H4) mini ITX
No reviews yet
Be the first to tell others how Fujitsu D3434-S22 motherboard Intel® H170 LGA 1151 (Socket H4) mini ITX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare Fujitsu D3434-S22 motherboard Intel® H170 LGA 1151 (Socket H4) mini ITX

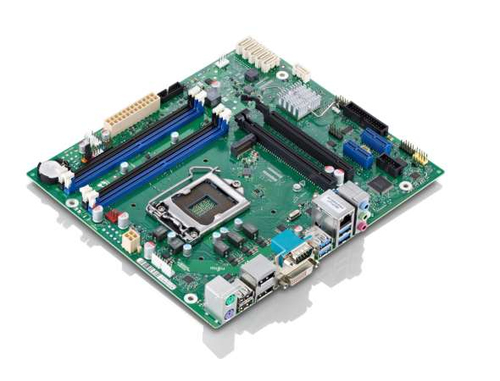

All motherboard comparisons- Fujitsu D3434-S22 motherboard Intel® H170 LGA 1151 (Socket H4) mini ITX vsFujitsu D3644-B Intel C246 LGA 1151 (Socket H4) micro ATXCompare specs

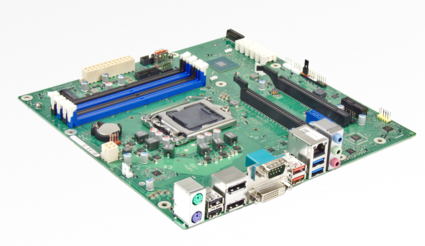

- Fujitsu D3434-S22 motherboard Intel® H170 LGA 1151 (Socket H4) mini ITX vsFujitsu D3642-B Intel Q370 LGA 1151 (Socket H4) micro ATXCompare specs

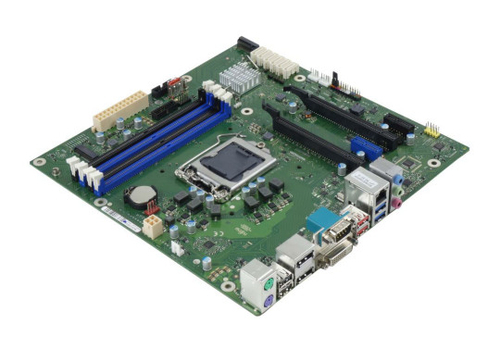

- Fujitsu D3434-S22 motherboard Intel® H170 LGA 1151 (Socket H4) mini ITX vsFujitsu D3417-B2 Intel C236 Express LGA 1151 (Socket H4) micro ATXCompare specs

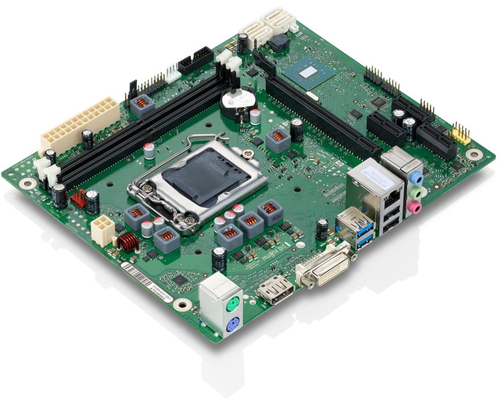

- Fujitsu D3434-S22 motherboard Intel® H170 LGA 1151 (Socket H4) mini ITX vsFujitsu D3400-B2 H110 Express LGA 1151 (Socket H4) micro ATXCompare specs
- Fujitsu D3434-S22 motherboard Intel® H170 LGA 1151 (Socket H4) mini ITX vsMSI X399 SLI PLUSCompare specs

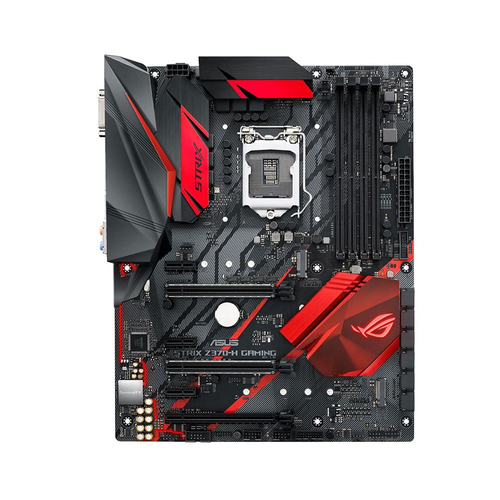

- Fujitsu D3434-S22 motherboard Intel® H170 LGA 1151 (Socket H4) mini ITX vsASUS ROG STRIX Z370-H GAMINGCompare specs

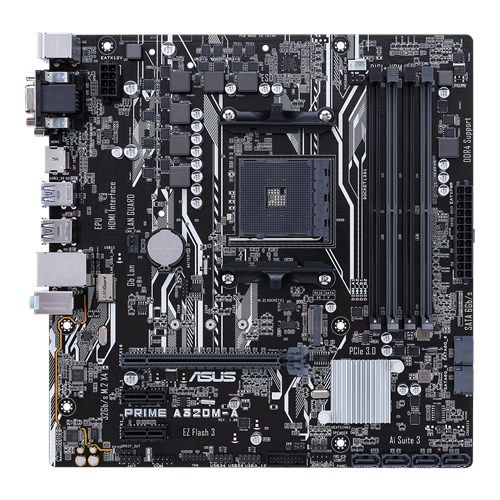

- Fujitsu D3434-S22 motherboard Intel® H170 LGA 1151 (Socket H4) mini ITX vsASUS A320M-A AMD A320 Socket AM4 micro ATXCompare specs

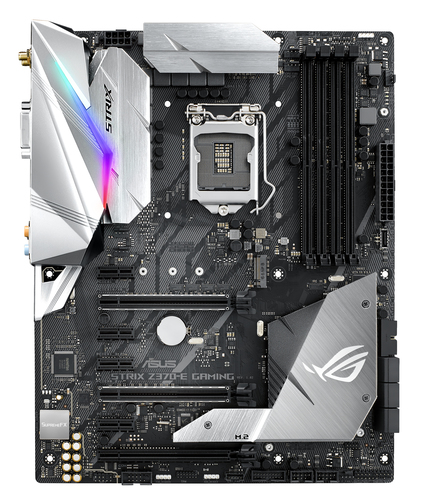

- Fujitsu D3434-S22 motherboard Intel® H170 LGA 1151 (Socket H4) mini ITX vsASUS ROG STRIX Z370-E GAMINGCompare specs
