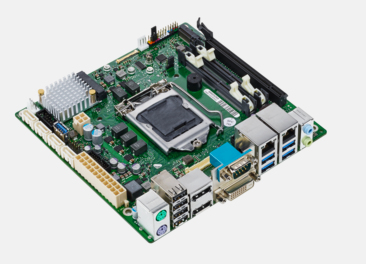

Fujitsu D3433-S motherboard Intel® Q170 LGA 1151 (Socket H4) mini ITX
Model D3433-S
52 specifications
- Processor manufacturerIntel
- Supported memory typesDDR4-SDRAM
- Supported storage drive typesHDD & SSD
- Number of SATA III connectors4
- Ethernet LANYes
- Component forPC
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR4-SDRAM
- Supported storage drive types
- HDD & SSD
- Number of SATA III connectors
- 4
- Ethernet LAN
- Yes
- Component for
- PC
- Brand
- Fujitsu
- Category
- Motherboard
- Model
- D3433-S
- Part number
- D3433-S
- Also known as
- Fujitsu D3433-S motherboard Intel® Q170 LGA 1151 (Socket H4) mini ITX
Specifications
52 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1151 (Socket H4) |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® |
| Supported processor sockets | LGA 1151 (Socket H4) |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | SO-DIMM |
| Memory channels | Dual-channel |
| Memory voltage | 1.2 V |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 2133 MHz |
| Maximum internal memory | 32 GB |
| Unbuffered memory | Yes |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| Graphics card family | Intel |
| Graphics card | HD Graphics |
Internal I/O
| Specification | Value |
|---|---|
| Number of SATA III connectors | 4 |
| Number of SATA connectors | 4 |
| Total number of SATA connectors | 4 |
| TPM connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 2 |
| PS/2 ports quantity | 2 |
| DVI-D ports quantity | 1 |
| DisplayPorts quantity | 2 |
| DisplayPort version | 1.2 |
| S/PDIF out port | Yes |
| USB connector type | USB Type-A |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| LAN controller | Intel® I210-AT, Intel I219LM |
| Wake-on-LAN ready | Yes |
| Wi-Fi | Yes |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | mini ITX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel® Q170 |
| Audio output channels | 5.1 channels |
| Power source type | ATX |
| Watch Dog function | Yes |
| Linux operating systems supported | Yes |
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 (Gen 3.x) slots | 1 |
| Mini PCI Express slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI AMI |
Processor special features
| Specification | Value |
|---|---|
| Trusted Platform Module (TPM) | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 170 mm |
| Depth | 170 mm |
Other features
| Specification | Value |
|---|---|
| mSATA ports quantity | 1 |
Technical details
| Specification | Value |
|---|---|
| USB ports quantity | 4 |
| USB version | 2.0/3.2 Gen 1 (3.1 Gen 1) |
What people say
Reviews & ratings
Fujitsu D3433-S motherboard Intel® Q170 LGA 1151 (Socket H4) mini ITX
No reviews yet
Be the first to tell others how Fujitsu D3433-S motherboard Intel® Q170 LGA 1151 (Socket H4) mini ITX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare Fujitsu D3433-S motherboard Intel® Q170 LGA 1151 (Socket H4) mini ITX
All motherboard comparisons- Fujitsu D3433-S motherboard Intel® Q170 LGA 1151 (Socket H4) mini ITX vsFujitsu D3400-B2 H110 Express LGA 1151 (Socket H4) micro ATXCompare specs
- Fujitsu D3433-S motherboard Intel® Q170 LGA 1151 (Socket H4) mini ITX vsFujitsu D3417-B2 Intel C236 Express LGA 1151 (Socket H4) micro ATXCompare specs

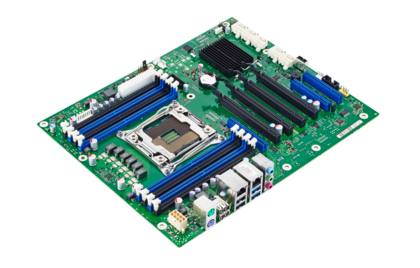

- Fujitsu D3433-S motherboard Intel® Q170 LGA 1151 (Socket H4) mini ITX vsFujitsu D3348-B2 motherboard Intel® C612 LGA 2011-v3 ATXCompare specs

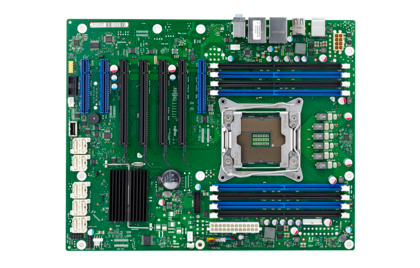

- Fujitsu D3433-S motherboard Intel® Q170 LGA 1151 (Socket H4) mini ITX vsFujitsu D3348-B Intel® C612 LGA 2011-v3 ATXCompare specs

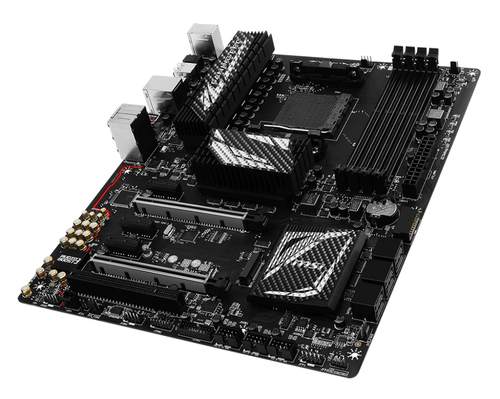

- Fujitsu D3433-S motherboard Intel® Q170 LGA 1151 (Socket H4) mini ITX vsMSI 970A Gaming Pro CarbonCompare specs

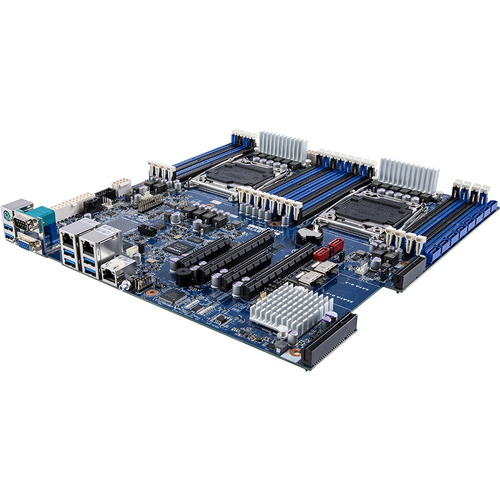

- Fujitsu D3433-S motherboard Intel® Q170 LGA 1151 (Socket H4) mini ITX vsGIGABYTE MD60-SC1 Intel® C612 LGA 2011-v3 Extended ATXCompare specs

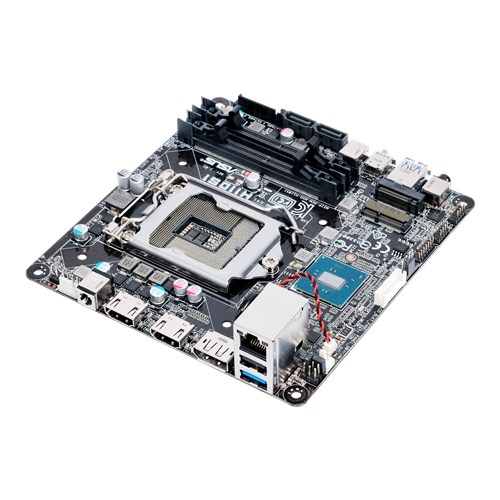

- Fujitsu D3433-S motherboard Intel® Q170 LGA 1151 (Socket H4) mini ITX vsASUS 90MB0R50-M0ECY0 motherboard Intel® H110 Mini-STXCompare specs

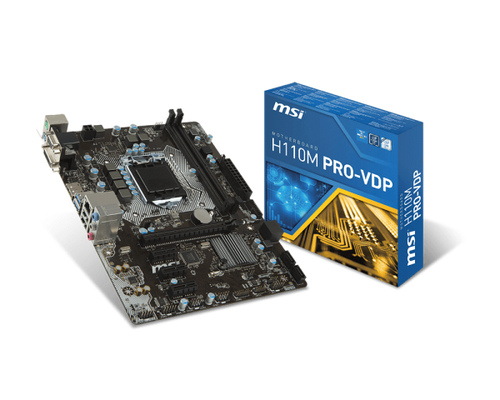

- Fujitsu D3433-S motherboard Intel® Q170 LGA 1151 (Socket H4) mini ITX vsMSI H110M PRO-VDPCompare specs
