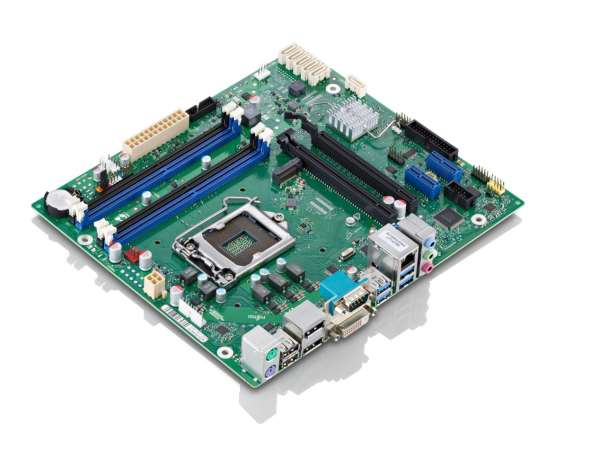

Fujitsu D3417-B2 Intel C236 Express LGA 1151 (Socket H4) micro ATX
Model D3417-B2Part no. S26361-F5110-V140EAN 4043619331987
69 specifications
- Processor manufacturerIntel
- Supported memory typesDDR4-SDRAM
- Supported storage drive typesHDD & SSD
- USB 2.0 connectors4
- USB 2.0 ports quantity2
- Ethernet LANYes
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR4-SDRAM
- Supported storage drive types
- HDD & SSD
- USB 2.0 connectors
- 4
- USB 2.0 ports quantity
- 2
- Ethernet LAN
- Yes
- Brand
- Fujitsu
- Category
- Motherboard
- Model
- D3417-B2
- Part number
- S26361-F5110-V140
- EAN / UPC
- 4043619331987
- Also known as
- Fujitsu D3417-B2 Intel C236 Express LGA 1151 (Socket H4) micro ATX
Specifications
69 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1151 (Socket H4) |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Pentium®, Intel® Xeon® E3 Family |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Memory voltage | 1.2,2.5 V |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speeds | 2133,2400 MHz |
| Maximum internal memory | 64 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive types | HDD & SSD |
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| Graphics card family | Intel |
| Graphics card | HD Graphics |
| DirectX version | 12.0 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Number of SATA III connectors | 6 |
| Number of SATA II connectors | 0 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | No |
| Front panel audio connector | Yes |
| Chassis intrusion connector | Yes |
| Parallel connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 1 |
| DVI-I ports quantity | 0 |
| DisplayPorts quantity | 2 |
| DisplayPort version | 1.2 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Intel I219LM |
| Wake-on-LAN ready | Yes |
| Wi-Fi | No |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel C236 Express |
| Audio chip | Realtek ALC671 |
| Audio output channels | 5.1 channels |
| Cooling type | Active |
| Power source type | ATX |
| Watch Dog function | Yes |
| Linux operating systems supported | Yes |
| Windows operating systems supported | Yes |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 2 |
| PCI slots | 0 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | AMI |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 50 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 243.8 mm |
| Depth | 213.4 mm |
Other features
| Specification | Value |
|---|---|
| S/PDIF in connector | No |
| Serial port via internal header | Yes |
| Thermal Design Power (TDP) | 80 W |
