Fujitsu D3348-B Intel® C612 LGA 2011-v3 ATX
Model D3348-BPart no. S26361-F5110-V103
62 specifications
- Processor manufacturerIntel
- Supported memory typesDDR4-SDRAM
- Supported storage drive interfacesM.2, SATA III
- USB 2.0 connectors4
- Ethernet LANYes
- Component forPC
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR4-SDRAM
- Supported storage drive interfaces
- M.2, SATA III
- USB 2.0 connectors
- 4
- Ethernet LAN
- Yes
- Component for
- PC
- Brand
- Fujitsu
- Category
- Motherboard
- Model
- D3348-B
- Part number
- S26361-F5110-V103
- Also known as
- Fujitsu D3348-B Intel® C612 LGA 2011-v3 ATX
Specifications
62 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 2011-v3 |
| Compatible processor series | Intel® Core™ i7 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 8 |
| Memory slots type | DIMM |
| Memory channels | Quad-channel |
| ECC сompatibility | ECC |
| Supported memory clock speeds | 2133,2400 MHz |
| Maximum internal memory | 128 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | M.2, SATA III |
| RAID levels | 0, 1, 5, 10 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 10 |
| Number of SATA II connectors | 0 |
| S/PDIF out connector | No |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Chassis intrusion connector | Yes |
| 12V power connector | No |
| Serial port headers | 1 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 2 |
| PS/2 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| S/PDIF out port | No |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Intel® I210-AT, Intel I217LM |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel® C612 |
| Audio chip | Realtek ALC671 |
| Audio output channels | 5.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 (Gen 3.x) slots | 2 |
| Number of M.2 (M) slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI |
Processor special features
| Specification | Value |
|---|---|
| Conflict-Free | Yes |
| Intel Quiet System Technology (QST) | No |
| Intel Rapid Storage Technology | No |
| Intel Rapid Storage Technology enterprise | Yes |
| Intel Remote PC Assist Technology (RPAT) | No |
| Intel Trusted Execution Technology | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® High Definition Audio (Intel® HD Audio) | Yes |
| Intel® Matrix Storage Technology (Intel® MST) | No |
| Intel® Virtualization Technology (Intel® VT) | VT-d |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 50 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 244 mm |
Other features
| Specification | Value |
|---|---|
| S/PDIF in connector | No |
| S/PDIF in port | No |
| Intel® vPro™ Platform Eligibility | Yes |
What people say
Reviews & ratings
Fujitsu D3348-B Intel® C612 LGA 2011-v3 ATX
No reviews yet
Be the first to tell others how Fujitsu D3348-B Intel® C612 LGA 2011-v3 ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare Fujitsu D3348-B Intel® C612 LGA 2011-v3 ATX
All motherboard comparisons- Fujitsu D3348-B Intel® C612 LGA 2011-v3 ATX vsFujitsu D3348-B2 motherboard Intel® C612 LGA 2011-v3 ATXCompare specs
- Fujitsu D3348-B Intel® C612 LGA 2011-v3 ATX vsFujitsu D3433-S motherboard Intel® Q170 LGA 1151 (Socket H4) mini ITXCompare specs
- Fujitsu D3348-B Intel® C612 LGA 2011-v3 ATX vsFujitsu D3441-S motherboard Intel® Q170 LGA 1151 (Socket H4) micro ATXCompare specs
- Fujitsu D3348-B Intel® C612 LGA 2011-v3 ATX vsFujitsu D3041-A motherboard Intel® G41 LGA 775 (Socket T) micro ATXCompare specs

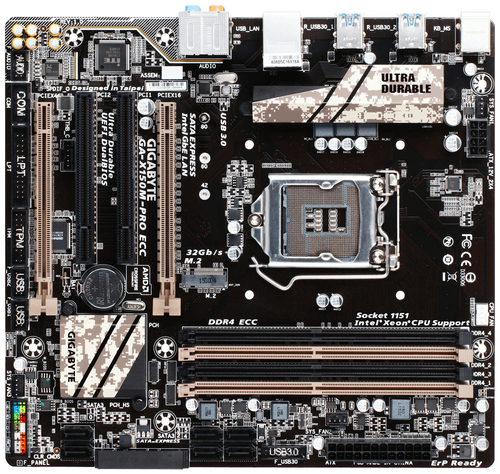

- Fujitsu D3348-B Intel® C612 LGA 2011-v3 ATX vsGIGABYTE GA-X150M-PRO ECC (rev. 1.0)Compare specs

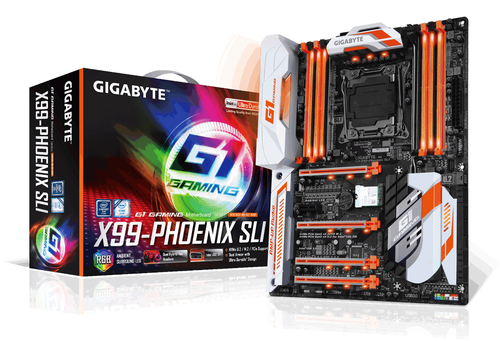

- Fujitsu D3348-B Intel® C612 LGA 2011-v3 ATX vsGIGABYTE GA-X99-Phoenix SLI (rev. 1.0)Compare specs

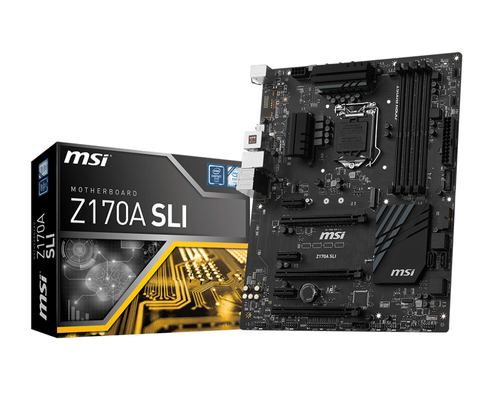

- Fujitsu D3348-B Intel® C612 LGA 2011-v3 ATX vsMSI Z170A SLICompare specs

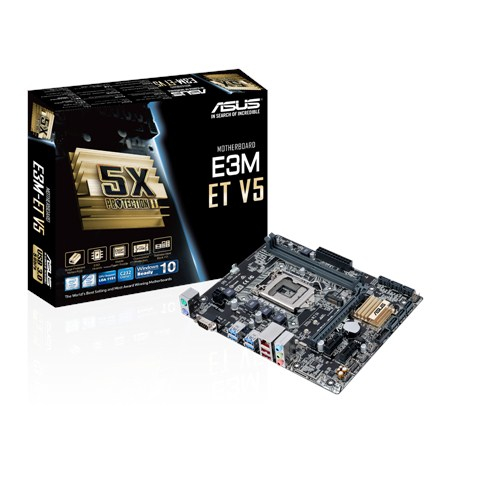

- Fujitsu D3348-B Intel® C612 LGA 2011-v3 ATX vsASUS E3M-ET V5Compare specs
