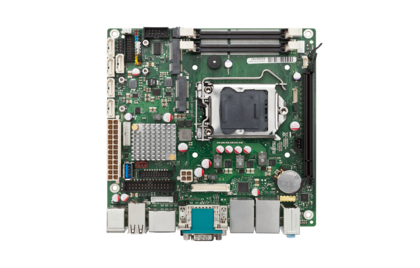

Fujitsu D3243-S motherboard Intel® Q87 LGA 1150 (Socket H3) mini ITX
Model D3243-SEAN 4043619331253
75 specifications
- Processor manufacturerIntel
- Supported memory typesDDR3-SDRAM
- Supported storage drive interfacesSATA III
- USB 2.0 connectors2
- USB 2.0 ports quantity6
- Ethernet LANYes
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR3-SDRAM
- Supported storage drive interfaces
- SATA III
- USB 2.0 connectors
- 2
- USB 2.0 ports quantity
- 6
- Ethernet LAN
- Yes
- Brand
- Fujitsu
- Category
- Motherboard
- Model
- D3243-S
- Part number
- D3243-S
- EAN / UPC
- 4043619331253
- Also known as
- Fujitsu D3243-S motherboard Intel® Q87 LGA 1150 (Socket H3) mini ITX
Specifications
75 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1150 (Socket H3) |
| Compatible processor series | Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR3-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | SO-DIMM |
| Memory channels | Dual-channel |
| Memory voltage | 1.35,1.5 V |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 1333,1600 MHz |
| Maximum internal memory | 16 GB |
| Unbuffered memory | Yes |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA III |
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| Graphics card family | Intel |
| Graphics card | HD Graphics 4600 |
| DirectX version | 11.1 |
| Number of displays supported | 3 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 5 |
| Number of SATA II connectors | 0 |
| Number of SATA connectors | 5 |
| Number of Parallel ATA connectors | 0 |
| S/PDIF out connector | No |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| Parallel connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 2 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 0 |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 1 |
| DisplayPorts quantity | 2 |
| DisplayPort version | 1.2 |
| COM ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Intel® I210-AT, Intel I217LM |
| Wake-on-LAN ready | Yes |
| Wi-Fi | No |
| Bluetooth | No |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | mini ITX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel® Q87 |
| Audio chip | Realtek ALC671 |
| Audio output channels | 5.1 channels |
| Power source type | ATX |
| Watch Dog function | Yes |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI AMI |
| Clear CMOS button | No |
Processor special features
| Specification | Value |
|---|---|
| Conflict-Free | Yes |
| Intel Rapid Storage Technology | Yes |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | Yes |
| Intel® Small Business Advantage (Intel® SBA) | Yes |
| Intel® Smart Response Technology | Yes |
| Intel® Virtualization Technology (Intel® VT) | VT-d |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 170 mm |
| Depth | 170 mm |
Other features
| Specification | Value |
|---|---|
| S/PDIF in connector | Yes |
| Intel® vPro™ Platform Eligibility | Yes |
What people say
Reviews & ratings
Fujitsu D3243-S motherboard Intel® Q87 LGA 1150 (Socket H3) mini ITX
No reviews yet
Be the first to tell others how Fujitsu D3243-S motherboard Intel® Q87 LGA 1150 (Socket H3) mini ITX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare Fujitsu D3243-S motherboard Intel® Q87 LGA 1150 (Socket H3) mini ITX

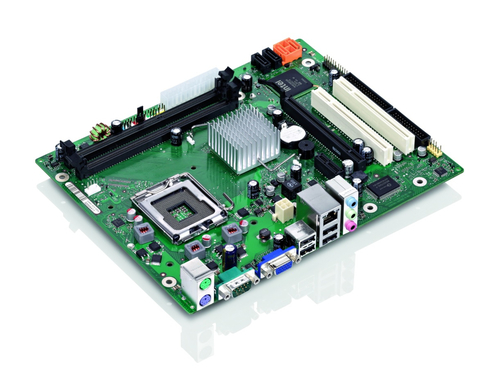

All motherboard comparisons- Fujitsu D3243-S motherboard Intel® Q87 LGA 1150 (Socket H3) mini ITX vsFujitsu D3041-A motherboard Intel® G41 LGA 775 (Socket T) micro ATXCompare specs

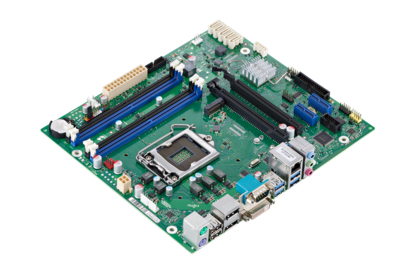

- Fujitsu D3243-S motherboard Intel® Q87 LGA 1150 (Socket H3) mini ITX vsFujitsu D3441-S motherboard Intel® Q170 LGA 1151 (Socket H4) micro ATXCompare specs

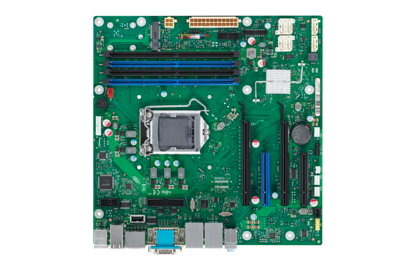

- Fujitsu D3243-S motherboard Intel® Q87 LGA 1150 (Socket H3) mini ITX vsFujitsu D3401-B motherboard Intel® Q170 LGA 1151 (Socket H4) micro ATXCompare specs
- Fujitsu D3243-S motherboard Intel® Q87 LGA 1150 (Socket H3) mini ITX vsFujitsu D3417-B motherboard Intel® C236 LGA 1151 (Socket H4) micro ATXCompare specs

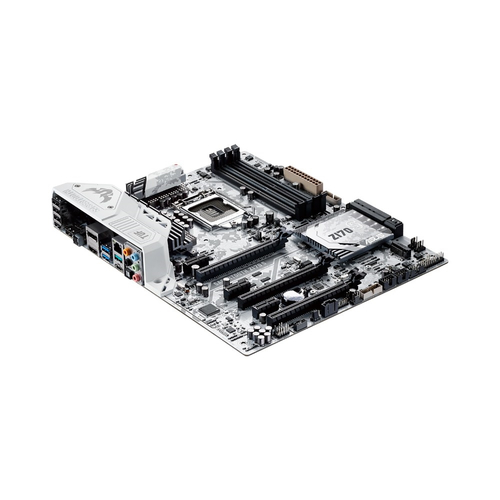

- Fujitsu D3243-S motherboard Intel® Q87 LGA 1150 (Socket H3) mini ITX vsASUS SABERTOOTH Z170 SCompare specs

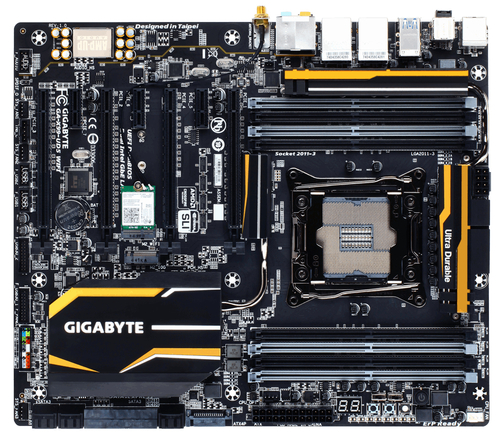

- Fujitsu D3243-S motherboard Intel® Q87 LGA 1150 (Socket H3) mini ITX vsGIGABYTE GA-X99-UD5WIFI motherboard Intel® X99 LGA 2011-v3 Extended ATXCompare specs

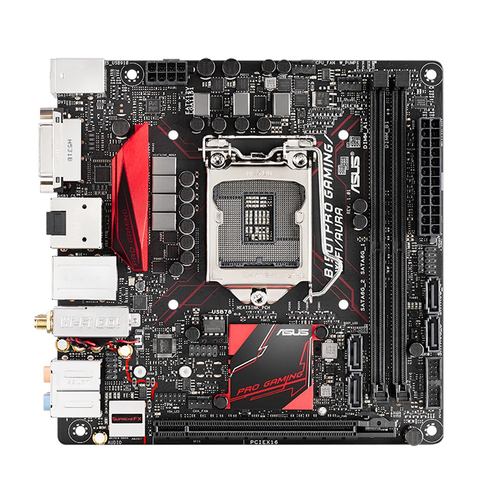

- Fujitsu D3243-S motherboard Intel® Q87 LGA 1150 (Socket H3) mini ITX vsASUS B150I PRO GAMING/WIFI/AURACompare specs

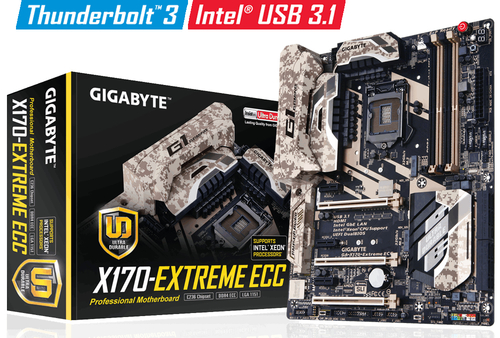

- Fujitsu D3243-S motherboard Intel® Q87 LGA 1150 (Socket H3) mini ITX vsGIGABYTE GA-X170-EXTREME ECC (rev. 1.0)Compare specs
