Fujitsu D3236-S motherboard Intel® Q87 LGA 1150 (Socket H3) ATX
Model D3236-S
68 specifications
- Processor manufacturerIntel
- Supported memory typesDDR3-SDRAM
- RAID levels0, 1, 5, 10
- Graphics cardHD Graphics
- USB 2.0 connectors3
- USB 2.0 ports quantity6
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR3-SDRAM
- RAID levels
- 0, 1, 5, 10
- Graphics card
- HD Graphics
- USB 2.0 connectors
- 3
- USB 2.0 ports quantity
- 6
- Brand
- Fujitsu
- Category
- Motherboard
- Model
- D3236-S
- Part number
- D3236-S
- Also known as
- Fujitsu D3236-S motherboard Intel® Q87 LGA 1150 (Socket H3) ATX
Specifications
68 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1150 (Socket H3) |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® |
| Intel Core i3/i5/i7/i9 series | i3-4xxx, i5-4xxx, i7-4xxx |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR3-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Memory voltage | 1.5 V |
| Supported memory clock speeds | 1333,1600 MHz |
| Maximum internal memory | 32 GB |
| Unbuffered memory | Yes |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | Micro SATA, PCI Express 3.0, SATA III |
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| Graphics card | HD Graphics |
| DirectX version | 11.1 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Number of SATA III connectors | 6 |
| Number of SATA II connectors | 0 |
| Number of Parallel ATA connectors | 0 |
| S/PDIF out connector | No |
| Front panel audio connector | Yes |
| CPU fan connector | Yes |
| 12V power connector | Yes |
| Parallel connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 2 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 1 |
| DisplayPorts quantity | 2 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S/PDIF out port | No |
| Parallel ports quantity | 0 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Intel® I210-AT, Intel I217LM |
| Wake-on-LAN ready | Yes |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel® Q87 |
| Audio chip | Realtek ALC671 |
| Audio output channels | 5.1 channels |
| Power source type | ATX |
| Windows operating systems supported | Yes |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 (Gen 2.x) slots | 1 |
| PCI Express x16 (Gen 2.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI slots | 4 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI AMI |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | 0 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 243.8 mm |
| Depth | 304.8 mm |
Other features
| Specification | Value |
|---|---|
| mSATA ports quantity | 1 |
| S/PDIF in connector | Yes |
| S/PDIF in port | No |
What people say
Reviews & ratings
Fujitsu D3236-S motherboard Intel® Q87 LGA 1150 (Socket H3) ATX
No reviews yet
Be the first to tell others how Fujitsu D3236-S motherboard Intel® Q87 LGA 1150 (Socket H3) ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare Fujitsu D3236-S motherboard Intel® Q87 LGA 1150 (Socket H3) ATX
All motherboard comparisons- Fujitsu D3236-S motherboard Intel® Q87 LGA 1150 (Socket H3) ATX vsFujitsu D3236-S GS3Compare specs

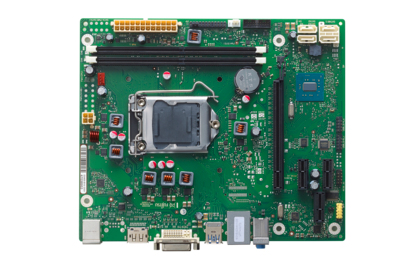

- Fujitsu D3236-S motherboard Intel® Q87 LGA 1150 (Socket H3) ATX vsFujitsu D3400-B motherboard Intel® H110 LGA 1151 (Socket H4) micro ATXCompare specs
- Fujitsu D3236-S motherboard Intel® Q87 LGA 1150 (Socket H3) ATX vsFujitsu D2841-A motherboard LGA 775 (Socket T) micro ATXCompare specs
- Fujitsu D3236-S motherboard Intel® Q87 LGA 1150 (Socket H3) ATX vsFujitsu GA-8I848PM-FS MotherboardCompare specs

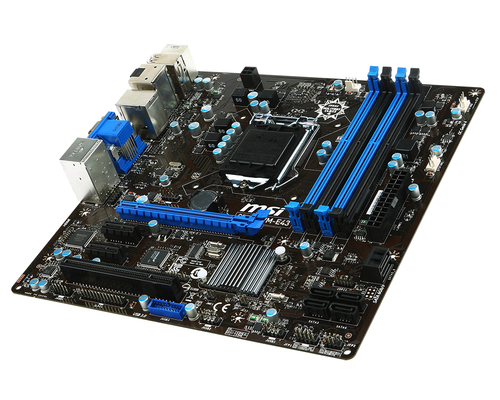

- Fujitsu D3236-S motherboard Intel® Q87 LGA 1150 (Socket H3) ATX vsMSI CSM-Q87M-E43 Intel® Q87 LGA 1150 (Socket H3) micro ATXCompare specs

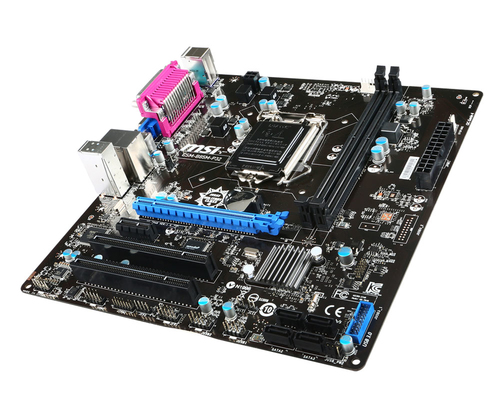

- Fujitsu D3236-S motherboard Intel® Q87 LGA 1150 (Socket H3) ATX vsMSI CSM-B85M-P32 Intel® B85 LGA 1150 (Socket H3) micro ATXCompare specs

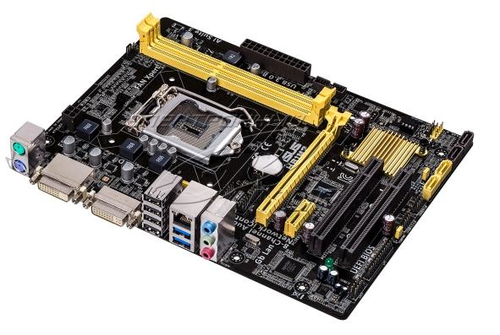

- Fujitsu D3236-S motherboard Intel® Q87 LGA 1150 (Socket H3) ATX vsASUS H81M2 Intel® H81 LGA 1150 (Socket H3) micro ATXCompare specs

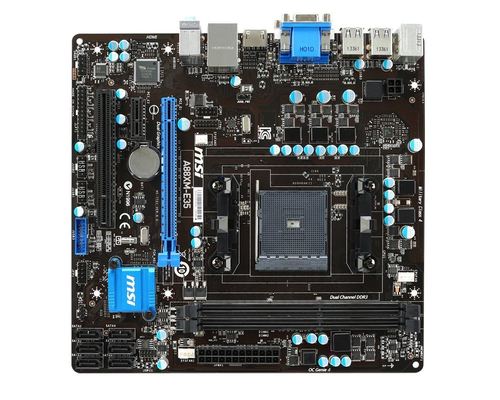

- Fujitsu D3236-S motherboard Intel® Q87 LGA 1150 (Socket H3) ATX vsMSI A88XM-E35 AMD A88X Socket FM2+ micro ATXCompare specs
