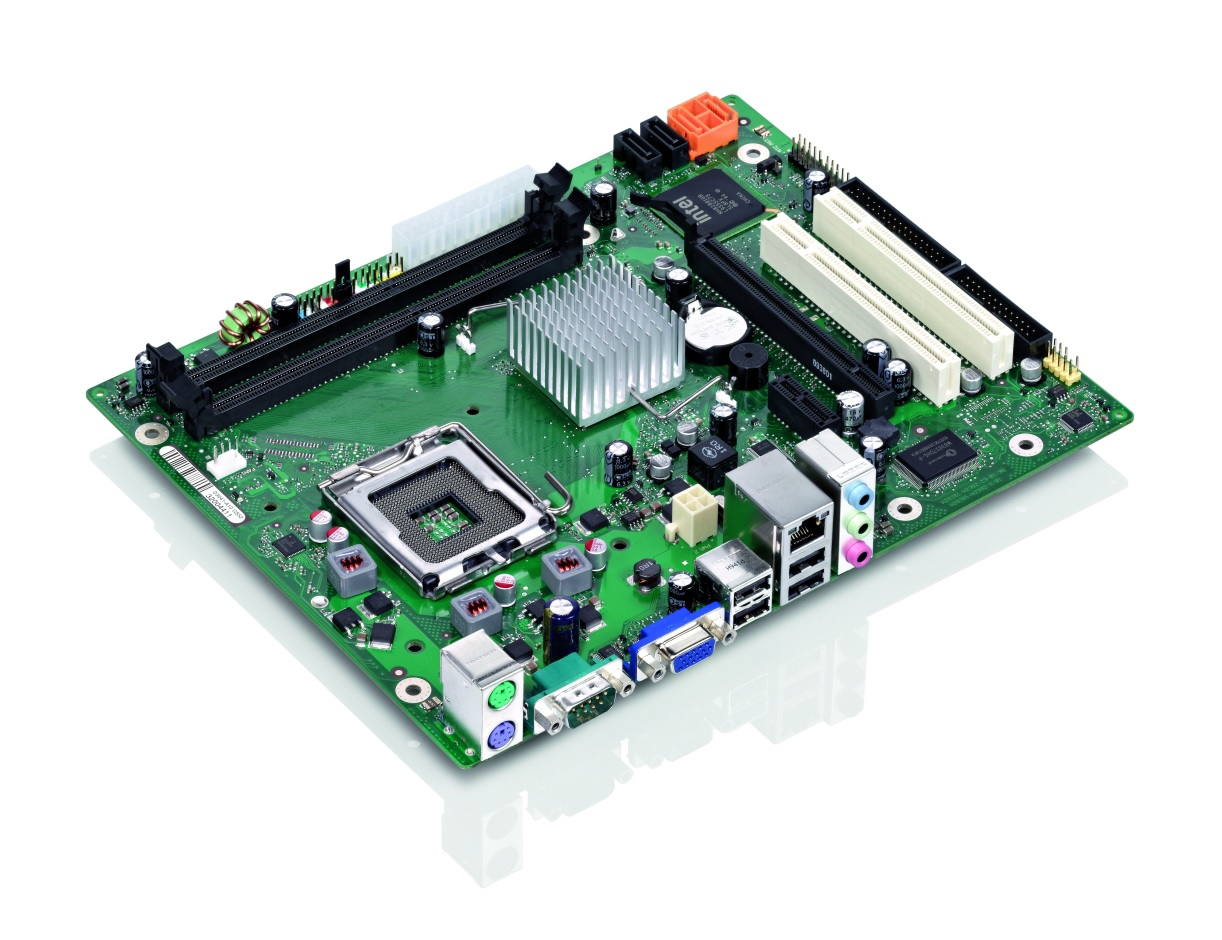

Fujitsu D3041-A motherboard Intel® G41 LGA 775 (Socket T) micro ATX
Model D3041-A
53 specifications
- Processor manufacturerIntel
- Supported memory typesDDR3-SDRAM
- Supported storage drive interfacesSATA II
- Maximum graphics card memory256 MB
- USB 2.0 connectors2
- USB 2.0 ports quantity4
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR3-SDRAM
- Supported storage drive interfaces
- SATA II
- Maximum graphics card memory
- 256 MB
- USB 2.0 connectors
- 2
- USB 2.0 ports quantity
- 4
- Brand
- Fujitsu
- Category
- Motherboard
- Model
- D3041-A
- Part number
- D3041-A
- Also known as
- Fujitsu D3041-A motherboard Intel® G41 LGA 775 (Socket T) micro ATX
Specifications
53 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
| Compatible processor series | Intel® Celeron® Dual-Core, Intel® Pentium® Dual-Core |
| Intel Core 2 Quad series | Q8000, Q9000 |
| Intel Core 2 Duo series | E7000, E8000 |
| Intel Pentium series | E2000, E5000, E6000 |
| Intel Celeron series | 400, E1000, E3000 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR3-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory voltage | 1.5 V |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 1066,1333 MHz |
| Unbuffered memory | Yes |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA II |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 256 MB |
| Graphics card family | Intel |
| Graphics card | GMA 4500 |
| DirectX version | 10 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Number of SATA III connectors | 0 |
| Number of SATA II connectors | 4 |
| Number of Parallel ATA connectors | 0 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| COM ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel® G41 |
| Motherboard southbridge | Intel ICH7 |
| Audio output channels | 5.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 1 |
| PCI slots | 2 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | Phoenix |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 193 mm |
What people say
Reviews & ratings
Fujitsu D3041-A motherboard Intel® G41 LGA 775 (Socket T) micro ATX
No reviews yet
Be the first to tell others how Fujitsu D3041-A motherboard Intel® G41 LGA 775 (Socket T) micro ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare Fujitsu D3041-A motherboard Intel® G41 LGA 775 (Socket T) micro ATX
All motherboard comparisons- Fujitsu D3041-A motherboard Intel® G41 LGA 775 (Socket T) micro ATX vsFujitsu D3441-S motherboard Intel® Q170 LGA 1151 (Socket H4) micro ATXCompare specs
- Fujitsu D3041-A motherboard Intel® G41 LGA 775 (Socket T) micro ATX vsFujitsu D3348-B Intel® C612 LGA 2011-v3 ATXCompare specs
- Fujitsu D3041-A motherboard Intel® G41 LGA 775 (Socket T) micro ATX vsFujitsu D3243-S motherboard Intel® Q87 LGA 1150 (Socket H3) mini ITXCompare specs
- Fujitsu D3041-A motherboard Intel® G41 LGA 775 (Socket T) micro ATX vsFujitsu D3401-B motherboard Intel® Q170 LGA 1151 (Socket H4) micro ATXCompare specs
- Fujitsu D3041-A motherboard Intel® G41 LGA 775 (Socket T) micro ATX vsMSI H110 PC MATECompare specs

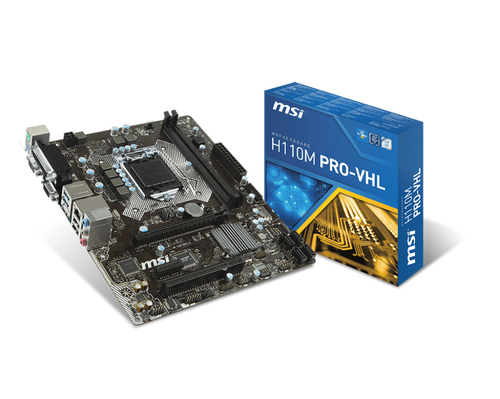

- Fujitsu D3041-A motherboard Intel® G41 LGA 775 (Socket T) micro ATX vsMSI H110M PRO-VHLCompare specs
