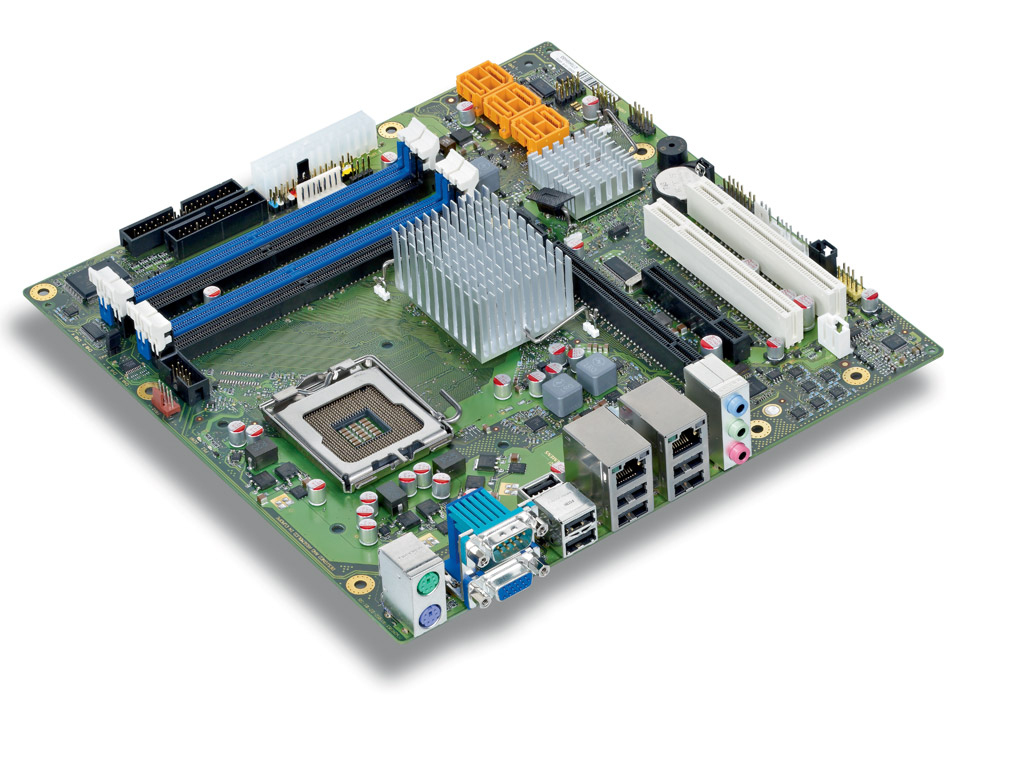

Fujitsu D2831-S motherboard LGA 775 (Socket T) micro ATX
Model D2831-S
33 specifications
- Processor manufacturerIntel
- Number of memory slots4
- On-board graphics cardYes
- USB 2.0 connectors2
- USB 2.0 ports quantity6
- Networking features10/100/1000 Mbps
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 4
- On-board graphics card
- Yes
- USB 2.0 connectors
- 2
- USB 2.0 ports quantity
- 6
- Networking features
- 10/100/1000 Mbps
- Brand
- Fujitsu
- Category
- Motherboard
- Model
- D2831-S
- Part number
- D2831-S
- Also known as
- Fujitsu D2831-S motherboard LGA 775 (Socket T) micro ATX
Specifications
33 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
| Compatible processor series | Intel® Celeron® |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| Memory voltage | 1.8 V |
| Maximum internal memory | 16 GB |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 6 |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| Ethernet LAN (RJ-45) ports | 2 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking features | 10/100/1000 Mbps |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Audio chip | Realtek ALC663 |
| Audio output channels | 5.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 slots | 1 |
| PCI Express x16 slots | 1 |
| PCI slots | 2 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 244 mm |
Packaging content
| Specification | Value |
|---|---|
| Drivers included | Yes |
Other features
| Specification | Value |
|---|---|
| Floppy disk drive connector | Yes |
