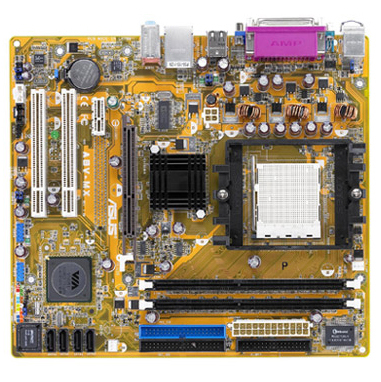

Fujitsu A8V-MX VIA K8M800 Socket 939 micro ATX
Model A8V-MXPart no. FSP:140000589EAN 5704327571780
36 specifications
- Processor manufacturerAMD
- Number of memory slots2
- RAID levels0, 1, 0+1, JBOD
- USB 2.0 ports quantity4
- Motherboard form factormicro ATX
- PCI Express x1 slots1
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 2
- RAID levels
- 0, 1, 0+1, JBOD
- USB 2.0 ports quantity
- 4
- Motherboard form factor
- micro ATX
- PCI Express x1 slots
- 1
- Brand
- Fujitsu
- Category
- Motherboard
- Model
- A8V-MX
- Part number
- FSP:140000589
- EAN / UPC
- 5704327571780
- Also known as
- Fujitsu A8V-MX VIA K8M800 Socket 939 micro ATX
Specifications
36 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket 939 |
| Compatible processor series | AMD Sempron |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| Maximum internal memory | 2 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 0+1, JBOD |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| COM ports quantity | 1 |
| Parallel ports quantity | 1 |
| Serial ports quantity | 1 |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Motherboard chipset | VIA K8M800 |
| Audio chip | Realtek ALC653 |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 245 mm |
| Depth | 218 mm |
Other features
| Specification | Value |
|---|---|
| S/PDIF in port | Yes |
| AGP x8 slots | 1 |
What people say
Reviews & ratings
Fujitsu A8V-MX VIA K8M800 Socket 939 micro ATX
No reviews yet
Be the first to tell others how Fujitsu A8V-MX VIA K8M800 Socket 939 micro ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare Fujitsu A8V-MX VIA K8M800 Socket 939 micro ATX
All motherboard comparisons- Fujitsu A8V-MX VIA K8M800 Socket 939 micro ATX vsFujitsu GA-8I848PM-FS MotherboardCompare specs
- Fujitsu A8V-MX VIA K8M800 Socket 939 micro ATX vsFujitsu D2841-A motherboard LGA 775 (Socket T) micro ATXCompare specs
- Fujitsu A8V-MX VIA K8M800 Socket 939 micro ATX vsFujitsu D2831-S motherboard LGA 775 (Socket T) micro ATXCompare specs
- Fujitsu A8V-MX VIA K8M800 Socket 939 micro ATX vsFujitsu AX63 ProCompare specs

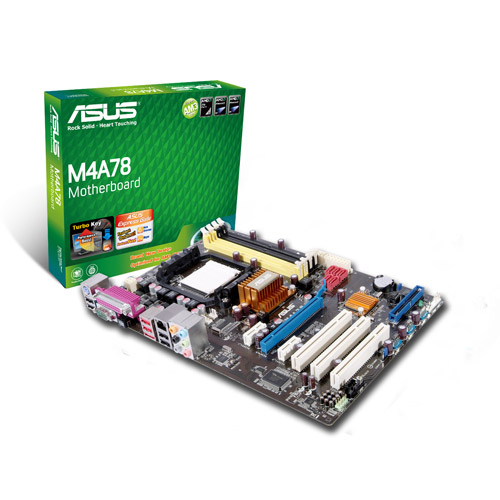

- Fujitsu A8V-MX VIA K8M800 Socket 939 micro ATX vsASUS M4A78 motherboard AMD 770 Socket AM2 ATXCompare specs
- Fujitsu A8V-MX VIA K8M800 Socket 939 micro ATX vsHP System board (motherboard)Compare specs

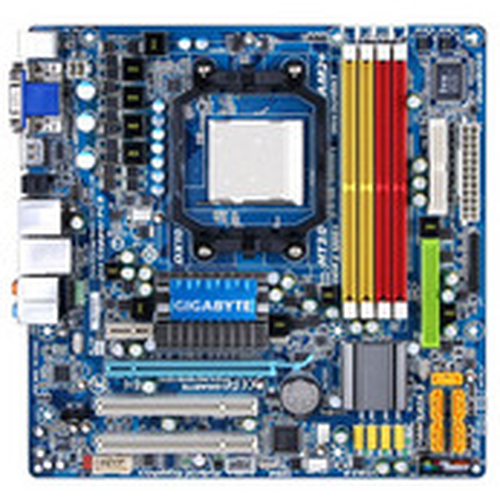

- Fujitsu A8V-MX VIA K8M800 Socket 939 micro ATX vsGIGABYTE AMD 780G + SB700Compare specs

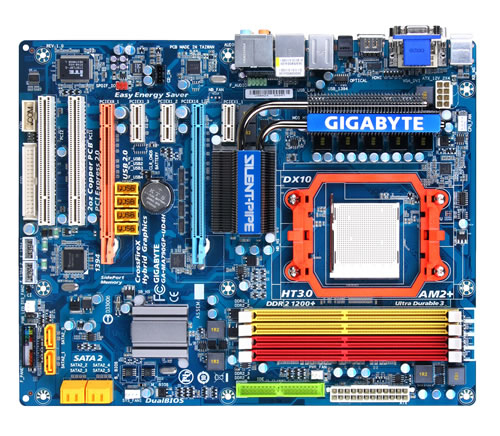

- Fujitsu A8V-MX VIA K8M800 Socket 939 micro ATX vsGIGABYTE MA790GP-UD4H Socket1333 ATX AM2+ DDR2Compare specs
