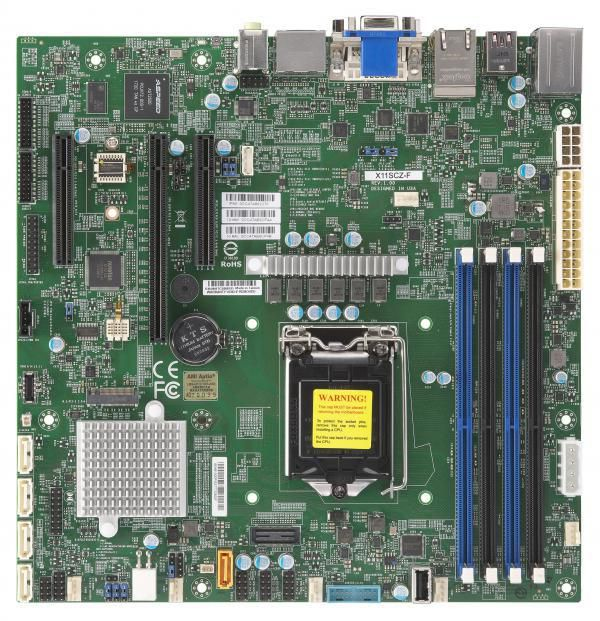

E-MBD-X11SCZ-F motherboard Intel C246 LGA 1151 (Socket H4) ATX
Model E-MBD-X11SCZ-F
49 specifications
- Weight400 g
- Processor manufacturerIntel
- Supported memory typesDDR4-SDRAM
- Supported storage drive typesHDD
- USB 2.0 connectors7
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Overview
- Weight
- 400 g
- Processor manufacturer
- Intel
- Supported memory types
- DDR4-SDRAM
- Supported storage drive types
- HDD
- USB 2.0 connectors
- 7
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 2
- Brand
- Ernitec
- Category
- Motherboard
- Model
- E-MBD-X11SCZ-F
- Part number
- E-MBD-X11SCZ-F
- Also known as
- Ernitec E-MBD-X11SCZ-F motherboard Intel C246 LGA 1151 (Socket H4) ATX
Specifications
49 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1151 (Socket H4) |
| Compatible processor series | Intel® Celeron® |
| Maximum number of SMP processors | 1 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory voltage | 1.2 V |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speeds | 1600 MHz |
| Maximum internal memory | 64 GB |
| Unbuffered memory | Yes |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive types | HDD |
| Supported storage drive interfaces | M.2, SATA |
| Number of HDDs supported | 5 |
| RAID levels | 0 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 7 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Number of SATA III connectors | 5 |
| Serial port headers | 4 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| VGA (D-Sub) ports quantity | 1 |
| DVI-I ports quantity | 1 |
| DisplayPorts quantity | 2 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Intel® I210-AT |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel C246 |
| Audio chip | Realtek ALC888S |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 (Gen 3.x) slots | 1 |
| Number of M.2 (M) slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI AMI |
| ACPI version | 6.1 |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | -45 - 85 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Storage relative humidity (H-H) | 10 - 95% |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 410 g |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 243.8 mm |
| Depth | 243.8 mm |
Other features
| Specification | Value |
|---|---|
| PCI Express x4 (Gen 3.x) slots | 2 |
| Weight | 400 g |
| Serial port via internal header | Yes |
