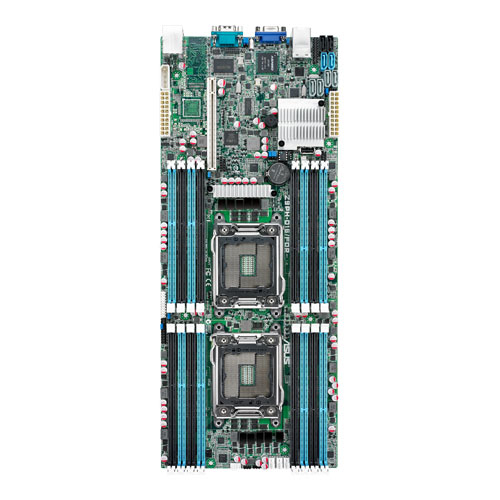

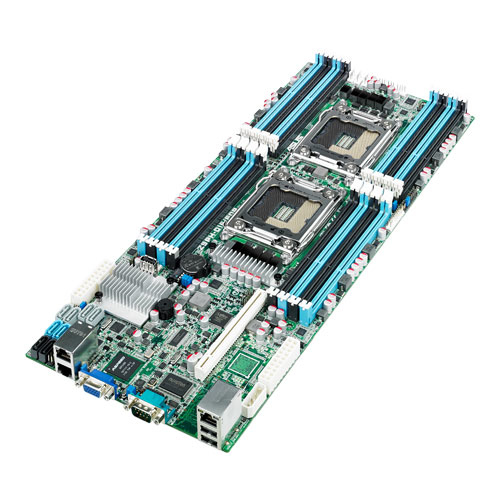

ASUS Z9PH-D16/IKVM motherboard Intel® C602 LGA 2011 (Socket R)
Model Z9PH-D16/IKVMPart no. 90-MSVDS0-G0UAY00TEAN 4719543185315
46 specifications
- Processor manufacturerIntel
- Supported memory typesDDR3-SDRAM
- Supported storage drive interfacesSerial Attached SCSI (SAS)
- On-board graphics cardYes
- USB 2.0 connectors1
- USB 2.0 ports quantity2
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR3-SDRAM
- Supported storage drive interfaces
- Serial Attached SCSI (SAS)
- On-board graphics card
- Yes
- USB 2.0 connectors
- 1
- USB 2.0 ports quantity
- 2
- Brand
- ASUS
- Category
- Motherboard
- Model
- Z9PH-D16/IKVM
- Part numbers
- 90-MSVDS0-G0UAY00T, Z9PH-D16/IKVM
- EAN / UPC
- 4719543185315, 4719543185254, 4719543187074, 5053866687736
- Also known as
- ASUS Z9PH-D16/IKVM motherboard Intel® C602 LGA 2011 (Socket R)
Specifications
46 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 2011 (Socket R) |
| Intel Xeon series | E5-2600 |
| Processor number of cores supported | 4, 6, 8 |
| Supported QPI | 6.4,7.2,8 GT/s |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR3-SDRAM |
| Supported memory clock speeds | 1066,1333,1600 MHz |
| Maximum RDIMM memory | 512 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | Serial Attached SCSI (SAS) |
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card memory | 16 MB |
| On-board graphics card model | Aspeed AST2300 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 1 |
| Number of SATA III connectors | 2 |
| Number of SATA II connectors | 6 |
| Number of chassis fan connectors | 4 |
| Chassis intrusion connector | Yes |
| TPM connector | Yes |

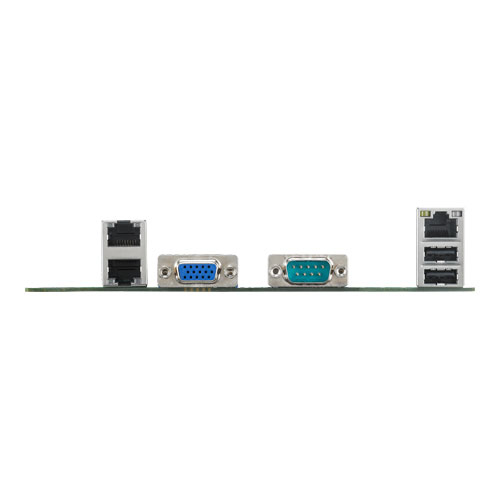

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 2 |
| PS/2 ports quantity | 0 |
| VGA (D-Sub) ports quantity | 1 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Wi-Fi | No |
Features
| Specification | Value |
|---|---|
| Component for | Server |
| Motherboard chipset | Intel® C602 |
| Certification | FCC, CFR47 15, Class B, CE, EN55022 & EN55024 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 slots | 0 |
| PCI Express x16 slots | 1 |
| PCI Express slots version | 3.0 |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 20 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 172.7 mm |
| Depth | 424.2 mm |
Packaging content
| Specification | Value |
|---|---|
| User guide | Yes |
Other features
| Specification | Value |
|---|---|
| Supported UDIMM clock speeds | 1066,1333 MHz |
| Supported UDIMM module capacity | 2GB, 4GB, 8GB |
| Supported RDIMM clock speeds | 1066,1333,1600 MHz |
| Supported RDIMM module capacity | 16GB, 2GB, 4GB, 8GB |
| Number of DIMM slots | 16 |
| Number of processors supported | 2 |
What people say
Reviews & ratings
ASUS Z9PH-D16/IKVM motherboard Intel® C602 LGA 2011 (Socket R)
No reviews yet
Be the first to tell others how ASUS Z9PH-D16/IKVM motherboard Intel® C602 LGA 2011 (Socket R) works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare ASUS Z9PH-D16/IKVM motherboard Intel® C602 LGA 2011 (Socket R)
All motherboard comparisons- ASUS Z9PH-D16/IKVM motherboard Intel® C602 LGA 2011 (Socket R) vsASUS P8Z68-V-PRO/GN3 motherboard Intel Z68 LGA 1155 (Socket H2) ATXCompare specs

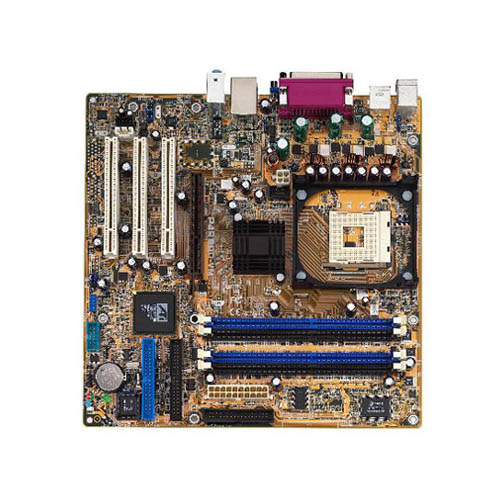

- ASUS Z9PH-D16/IKVM motherboard Intel® C602 LGA 2011 (Socket R) vsASUS P4R800-VM motherboard Socket 478 micro ATXCompare specs
