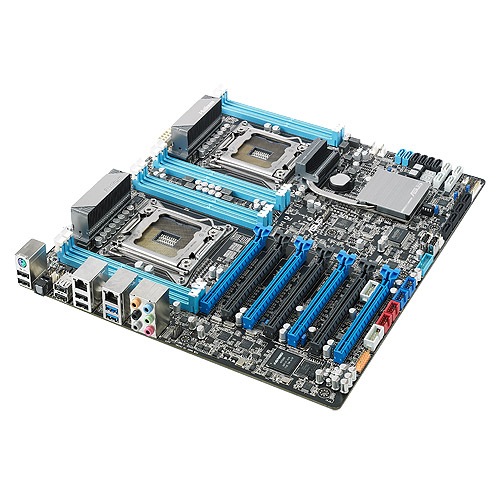

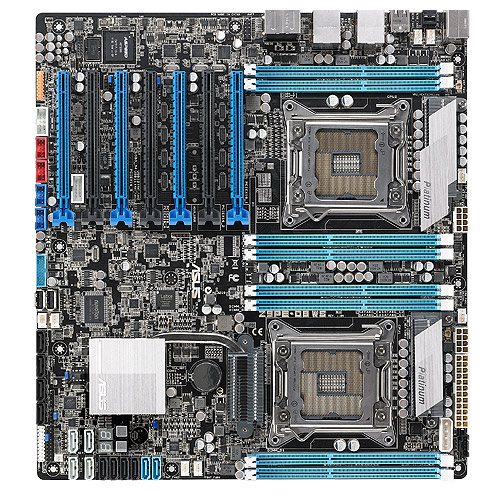

ASUS Z9PE-D8 WS

ASUS Z9PE-D8 WS

Model Z9PE-D8 WSPart no. 90-MSVDY0-G0EAY20TEAN 4719543185681

61 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR3-SDRAM
  • RAID levels0, 1, 5, 10
  • Parallel processing technology support4-Way SLI, Quad-GPU CrossFireX
  • USB 2.0 connectors1
  • USB 2.0 ports quantity6
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR3-SDRAM
RAID levels
0, 1, 5, 10
Parallel processing technology support
4-Way SLI, Quad-GPU CrossFireX
USB 2.0 connectors
1
USB 2.0 ports quantity
6
Brand
ASUS
Category
Motherboard
Model
Z9PE-D8 WS
Part numbers
90-MSVDY0-G0EAY20T, Z9PE-D8 WS, 90-MSVDY0-G0EAY00T, 90-MSVDY0-G0EAY10T
EAN / UPC
4719543185681, 014445254560, 112039985538, 115970725546 +14 more
Also known as
ASUS Z9PE-D8 WS motherboard LGA 2011 (Socket R) SSI EEB

Specifications

61 specifications in 14 groups

Processor

Processor manufacturerIntel
Processor socketLGA 2011 (Socket R)
Compatible processor seriesIntel® Xeon®

Memory

Supported memory typesDDR3-SDRAM
ECC сompatibilityNon-ECC
Supported memory clock speeds1066,1333,1600,1866,2000,2133 MHz
Maximum internal memory64 GB

Storage controllers

RAID levels0, 1, 5, 10

Graphics

Parallel processing technology support4-Way SLI, Quad-GPU CrossFireX

Internal I/O

USB 2.0 connectors1
USB 3.2 Gen 1 (3.1 Gen 1) connectors4
Number of SATA III connectors6
Number of SATA II connectors8
Number of Parallel ATA connectors0
CD/AUX audio inYes
ATX Power connector (24-pin)Yes
Number of EATX power connectors1
CPU fan connectorYes
Number of chassis fan connectors6
Chassis intrusion connectorYes
Number of COM connectors2
Number of IEEE1394 connectors2
Parallel connectorNo
TPM connectorNo

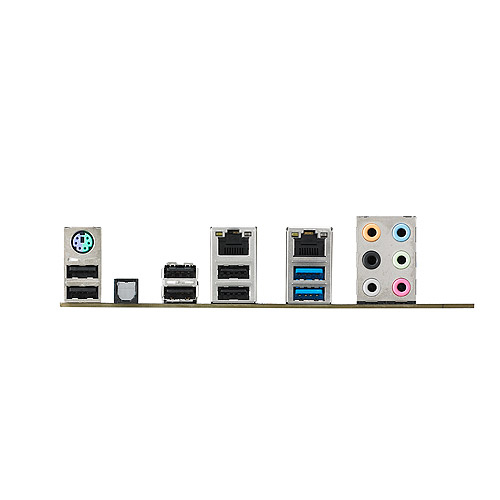

Rear panel I/O ports

USB 2.0 ports quantity6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Ethernet LAN (RJ-45) ports2
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity0
DVI-D ports quantity0
DVI-I ports quantity0
Headphone outputs1
Microphone inYes
Parallel ports quantity0
Serial ports quantity0
Modem (RJ-11) ports0

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerIntel® 82574L
Wi-FiNo

Features

Component forPC
Motherboard form factorSSI EEB
Audio output channels7.1 channels

Expansion slots

PCI Express x1 slots0
PCI Express x4 slots0
PCI Express x16 slots7
PCI Express slots version3.0
PCI slots0
PCI-X slots0

BIOS

BIOS typeUEFI
BIOS memory size64 Mbit
ACPI version2.0a

Processor special features

Trusted Platform Module (TPM)No

Weight & dimensions

Width305 mm
Depth330 mm

Packaging content

Cables includedSATA, Serial

Other features

Azalia Digital Header (ADH) connectorNo
CF card connectorNo
PCI Express slots quantity7
