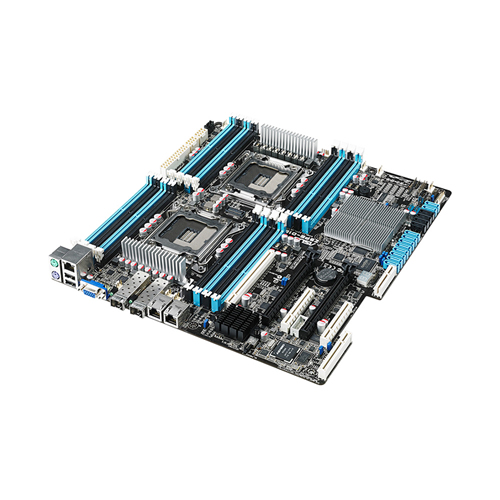

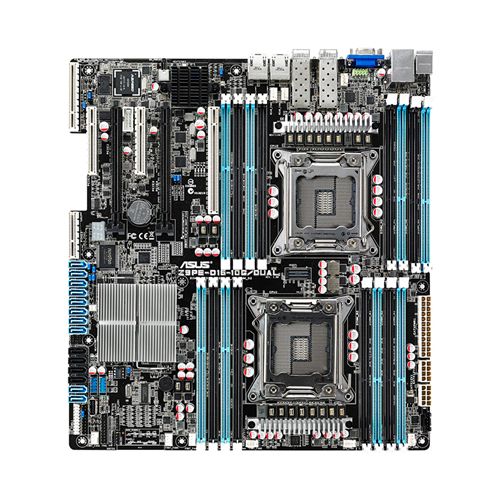

ASUS Z9PE-D16-10G/DUAL Intel® C602 LGA 2011 (Socket R) SSI EEB
Model Z9PE-D16-10G/DUALPart no. 90SB03H0-M0UAY0EAN 4716659524106
45 specifications
- Processor manufacturerIntel
- Supported memory typesDDR3-SDRAM
- Supported storage drive interfacesSATA II, SATA III
- USB 2.0 connectors2
- Ethernet LANYes
- Motherboard form factorSSI EEB
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR3-SDRAM
- Supported storage drive interfaces
- SATA II, SATA III
- USB 2.0 connectors
- 2
- Ethernet LAN
- Yes
- Motherboard form factor
- SSI EEB
- Brand
- ASUS
- Category
- Motherboard
- Model
- Z9PE-D16-10G/DUAL
- Part number
- 90SB03H0-M0UAY0
- EAN / UPC
- 4716659524106
- Also known as
- ASUS Z9PE-D16-10G/DUAL Intel® C602 LGA 2011 (Socket R) SSI EEB
Specifications
45 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 2011 (Socket R) |
| Intel Xeon series | E5-2600 |
| Supported QPI | 6.4,7.2,8 GT/s |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR3-SDRAM |
| Supported memory clock speeds | 1066,1333,1600,1866 MHz |
| Maximum internal memory | 512 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA II, SATA III |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| ATX Power connector (24-pin) | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 9 |
| Chassis intrusion connector | Yes |
| EPS power connector (8-pin) | Yes |
| Serial port headers | 2 |
| TPM connector | Yes |

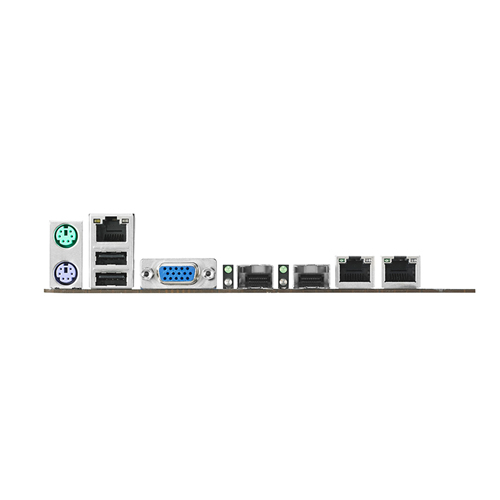

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 3 |
| PS/2 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| LAN controller | Intel® I210-AT |
| Wi-Fi | No |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | SSI EEB |
| Motherboard chipset | Intel® C602 |
| Certification | CE, C-Tick, FCC |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 (Gen 2.x) slots | 1 |
| PCI Express x8 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 2.x) slots | 0 |
| PCI Express x16 (Gen 3.x) slots | 3 |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage relative humidity (H-H) | 20 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 307.2 mm |
| Depth | 332.8 mm |
Other features
| Specification | Value |
|---|---|
| Supported UDIMM module capacity | 2GB, 4GB, 8GB |
| Supported LRDIMM module capacity | 16GB, 32GB, 8GB |
| Supported LRDIMM clock speeds | 1066,1333,1600,1866 MHz |
| Supported RDIMM clock speeds | 1066,1333,1600,1866 MHz |
| Supported RDIMM module capacity | 16GB, 2GB, 32GB, 4GB, 8GB |
| Number of DIMM slots | 16 |
| Number of processors supported | 2 |
