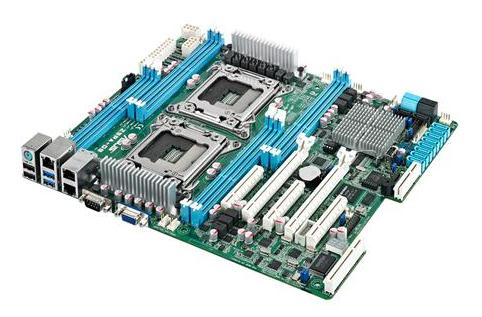

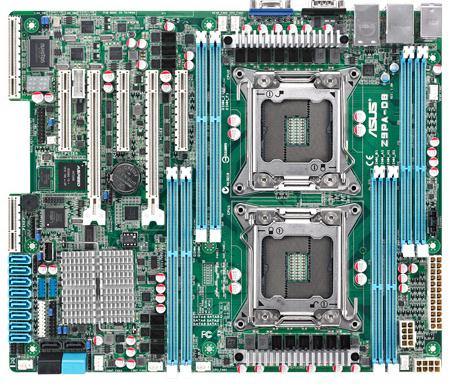

ASUS Z9PA-D8/iKVM Intel® C602 LGA 2011 (Socket R) ATX
Model Z9PA-D8/iKVMPart no. 90-MSVEJ1-G0UAY0YZEAN 112039985484
49 specifications
- Processor manufacturerIntel
- Supported memory typesDDR3-SDRAM
- Supported storage drive interfacesSATA II, SATA III
- Parallel processing technology supportNot supported
- Number of SATA III connectors2
- Ethernet LANYes
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR3-SDRAM
- Supported storage drive interfaces
- SATA II, SATA III
- Parallel processing technology support
- Not supported
- Number of SATA III connectors
- 2
- Ethernet LAN
- Yes
- Brand
- ASUS
- Category
- Motherboard
- Model
- Z9PA-D8/iKVM
- Part number
- 90-MSVEJ1-G0UAY0YZ
- EAN / UPC
- 112039985484, 610839185535, 6108391855354
- Also known as
- ASUS Z9PA-D8/iKVM Intel® C602 LGA 2011 (Socket R) ATX
Specifications
49 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 2011 (Socket R) |
| Intel Xeon series | E5-2600 |
| Processor number of cores supported | 2, 4, 6, 8 |
| Supported QPI | 6.4,7.2,8 GT/s |
| Processor thermal power (max) | 135 W |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR3-SDRAM |
| Supported memory clock speeds | 1066,1333,1600,1866 MHz |
| Maximum internal memory | 256 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA II, SATA III |
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | Not supported |
| On-board graphics card memory | 16 MB |
| On-board graphics card model | Aspeed AST2300 |
Internal I/O
| Specification | Value |
|---|---|
| Number of SATA III connectors | 2 |
| Number of SATA II connectors | 4 |
| ATX Power connector (24-pin) | Yes |
| Number of chassis fan connectors | 8 |
| Chassis intrusion connector | Yes |
| Serial port headers | 1 |
| TPM connector | Yes |

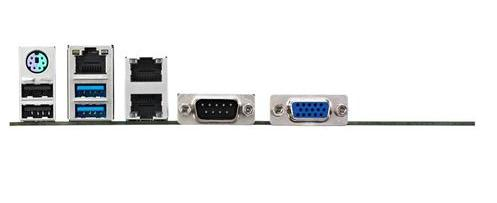

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| PS/2 ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| LAN controller | Intel® 82574L |
| Wi-Fi | No |
Features
| Specification | Value |
|---|---|
| Component for | Server |
| Motherboard form factor | ATX |
| Motherboard chipset | Intel® C602 |
| Certification | CE, C-Tick, FCC |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 (Gen 2.x) slots | 1 |
| PCI Express x8 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 2.x) slots | 0 |
| PCI Express x16 (Gen 3.x) slots | 2 |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage relative humidity (H-H) | 20 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 304.8 mm |
| Depth | 254 mm |
Packaging content
| Specification | Value |
|---|---|
| User guide | Yes |
Other features
| Specification | Value |
|---|---|
| Supported DIMM module capacities | 16GB, 2GB, 32GB, 4GB, 8GB |
| Supported UDIMM module capacity | 2GB, 4GB, 8GB |
| Supported LRDIMM module capacity | 16GB, 32GB, 8GB |
| Number of DIMM slots | 8 |
| Number of processors supported | 2 |
