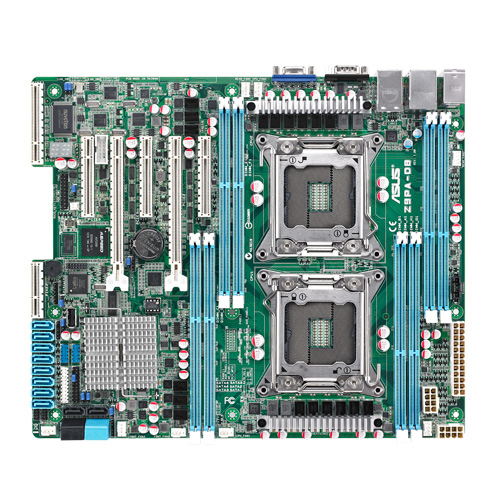

ASUS Z9PA-D8 LGA 2011 (Socket R) ATX

ASUS Z9PA-D8 LGA 2011 (Socket R) ATX

Model Z9PA-D8Part no. 90-MSVEJ1-G1UAY0YZEAN 4053162875388

41 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA II, SATA III
  • On-board graphics card memory16 MB
  • ATX Power connector (24-pin)Yes
  • USB 2.0 ports quantity2
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA II, SATA III
On-board graphics card memory
16 MB
ATX Power connector (24-pin)
Yes
USB 2.0 ports quantity
2
Brand
ASUS
Category
Motherboard
Model
Z9PA-D8
Part number
90-MSVEJ1-G1UAY0YZ
EAN / UPC
4053162875388, 4716659320562
Also known as
ASUS Z9PA-D8 LGA 2011 (Socket R) ATX

Specifications

41 specifications in 11 groups

Processor

Processor manufacturerIntel
Processor socketLGA 2011 (Socket R)
Intel Xeon seriesE5-2600
Supported QPI6.4,7.2,8 GT/s

Memory

Supported memory typesDDR3-SDRAM
Supported memory clock speeds1066,1333,1600,1866 MHz
Maximum internal memory256 GB

Storage controllers

Supported storage drive interfacesSATA II, SATA III
RAID levels0, 1, 5, 10

Graphics

On-board graphics card memory16 MB
On-board graphics card modelAspeed AST2300

Internal I/O

ATX Power connector (24-pin)Yes
Number of chassis fan connectors8
Chassis intrusion connectorYes
EPS power connector (8-pin)Yes
Serial port headers1
TPM connectorYes

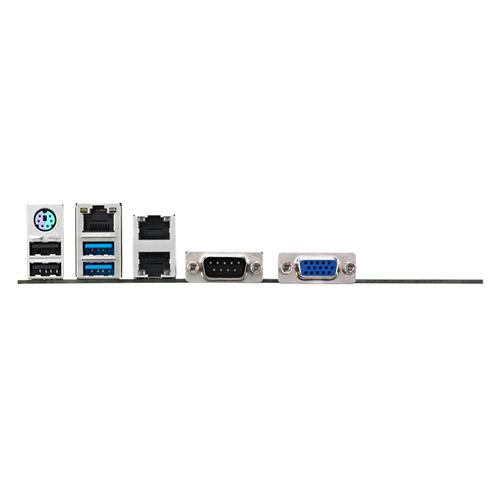

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Ethernet LAN (RJ-45) ports2
PS/2 ports quantity1
VGA (D-Sub) ports quantity1
Serial ports quantity1

Network

Ethernet LANYes

Features

Component forServer
Motherboard form factorATX

Expansion slots

PCI Express x8 (Gen 2.x) slots1
PCI Express x8 (Gen 3.x) slots2
PCI Express x16 (Gen 2.x) slots0
PCI Express x16 (Gen 3.x) slots2

Operational conditions

Storage temperature (T-T)-40 - 70 °C
Operating temperature (T-T)10 - 35 °C
Storage relative humidity (H-H)20 - 90%

Other features

Supported UDIMM clock speeds1066,1333,1600 MHz
Supported UDIMM module capacity2GB, 4GB, 8GB
Supported LRDIMM module capacity16GB, 32GB, 8GB
Supported LRDIMM clock speeds1066,1333 MHz
Supported RDIMM clock speeds1066,1333,1600 MHz
Supported RDIMM module capacity16GB, 2GB, 32GB, 4GB, 8GB
Number of DIMM slots4
Number of processors supported1
