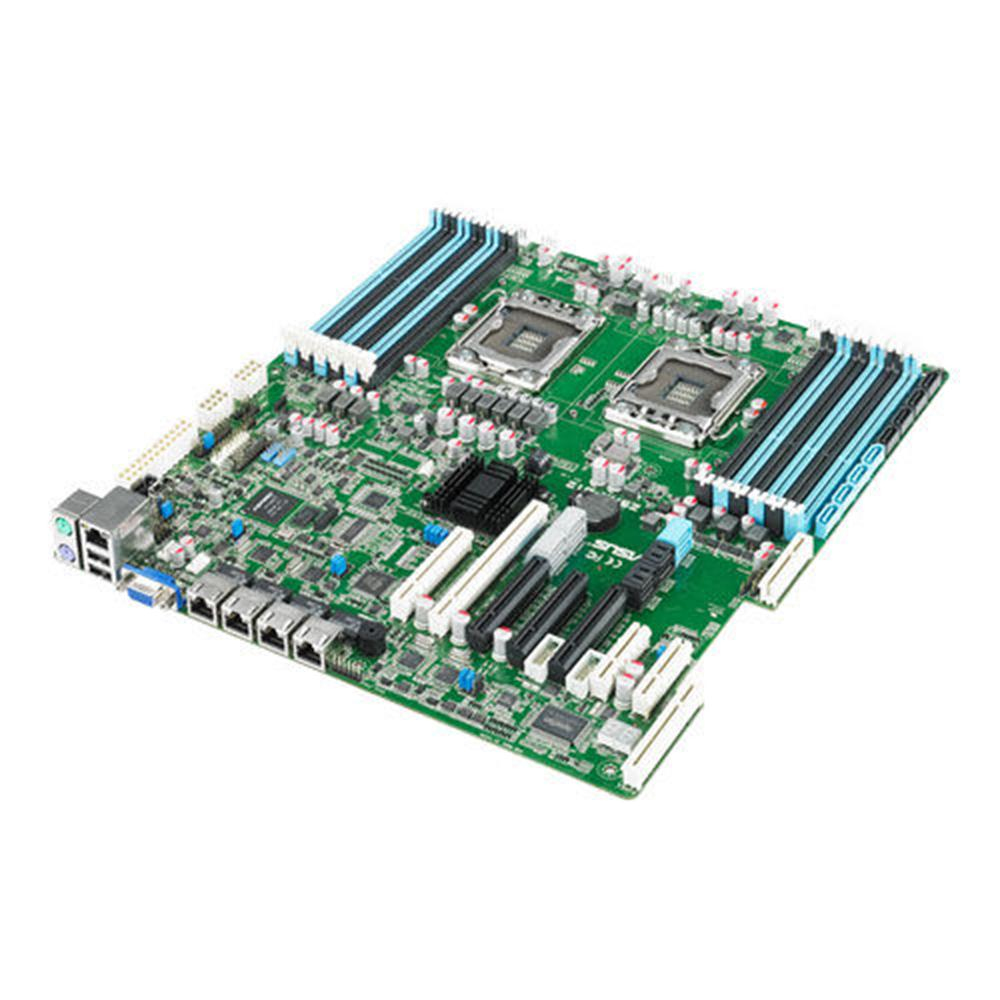

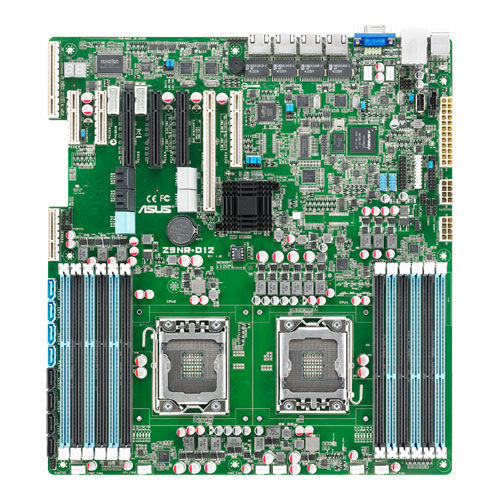

ASUS Z9NR-D12 Intel® C602 LGA 1356 (Socket B2) SSI EEB
Model Z9NR-D12Part no. 90-MSVE50-G0UAY0YZEAN 4719543186749
58 specifications
- Processor manufacturerIntel
- Supported memory typesDDR3-SDRAM
- Supported storage drive interfacesSATA II, SATA III
- On-board graphics card memory16 MB
- USB 2.0 connectors1
- USB 2.0 ports quantity2
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR3-SDRAM
- Supported storage drive interfaces
- SATA II, SATA III
- On-board graphics card memory
- 16 MB
- USB 2.0 connectors
- 1
- USB 2.0 ports quantity
- 2
- Brand
- ASUS
- Category
- Motherboard
- Model
- Z9NR-D12
- Part number
- 90-MSVE50-G0UAY0YZ
- EAN / UPC
- 4719543186749
- Also known as
- ASUS Z9NR-D12 Intel® C602 LGA 1356 (Socket B2) SSI EEB
Specifications
58 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1356 (Socket B2) |
| Intel Xeon series | E5-2400 |
| Processor number of cores supported | 4, 6, 8, 10 |
| Supported QPI | 6.4,7.2,8 GT/s |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR3-SDRAM |
| Memory channels | Hexa-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 1066,1333,1600 MHz |
| Maximum internal memory | 384 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA II, SATA III |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card memory | 16 MB |
| On-board graphics card model | Aspeed AST2300 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 1 |
| ATX Power connector (24-pin) | Yes |
| Power fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector | Yes |
| EPS power connector (8-pin) | Yes |
| Serial port headers | 1 |
| TPM connector | Yes |

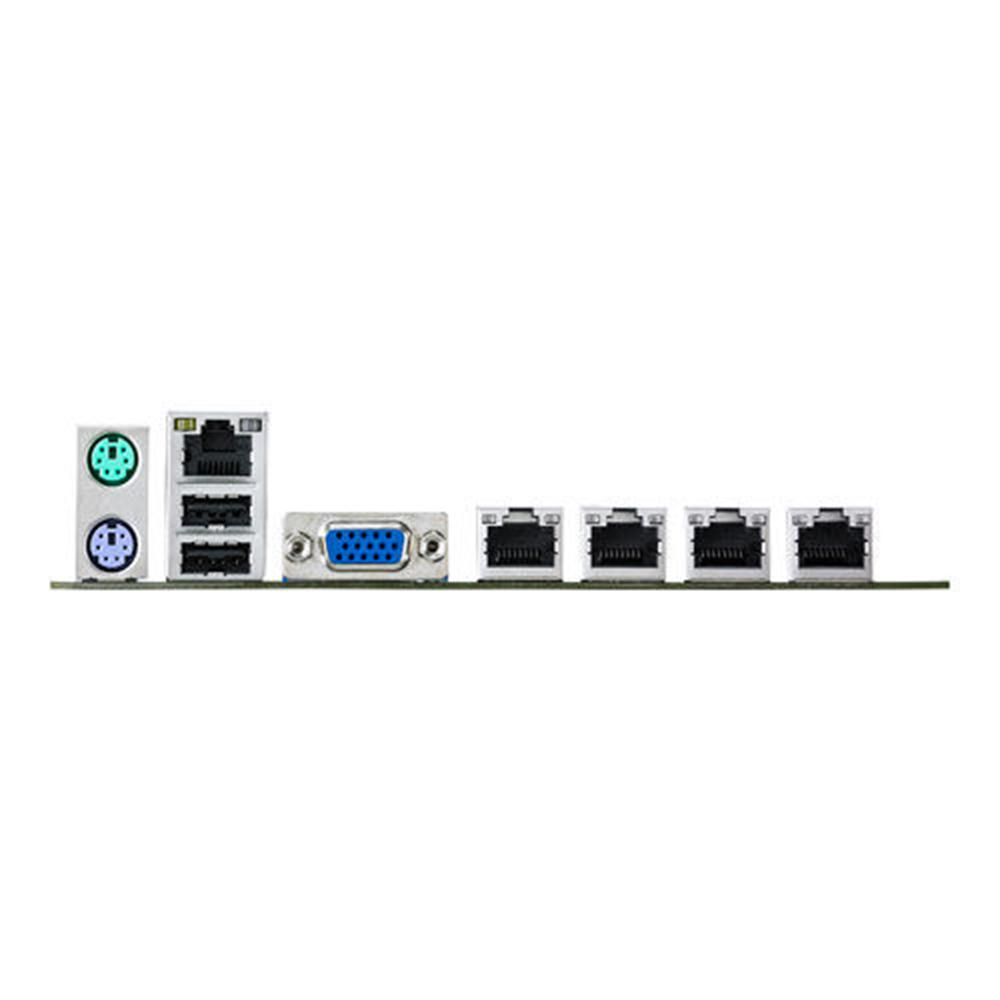

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 5 |
| IPMI LAN (RJ-45) port | Yes |
| PS/2 ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Intel® 82574L |
| Wi-Fi | No |
Features
| Specification | Value |
|---|---|
| Component for | Server |
| Motherboard form factor | SSI EEB |
| Motherboard chipset | Intel® C602 |
| Certification | CE, FCC(Class B) |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x4 (Gen 2.x) slots | 2 |
| PCI Express x8 (Gen 2.x) slots | 0 |
| PCI Express x8 (Gen 3.x) slots | 4 |
| PCI Express x16 (Gen 2.x) slots | 0 |
| PCI Express x16 (Gen 3.x) slots | 1 |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage relative humidity (H-H) | 20 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 304.8 mm |
| Depth | 330.2 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | SATA |
| User guide | Yes |
Other features
| Specification | Value |
|---|---|
| Supported DIMM module capacities | 2GB, 4GB, 8GB, 16GB, 32GB |
| Supported UDIMM clock speeds | 1066,1333 MHz |
| Supported UDIMM module capacity | 2GB, 4GB, 8GB |
| Supported LRDIMM module capacity | 8GB, 16GB, 32GB |
| Supported LRDIMM clock speeds | 1066,1333 MHz |
| Supported RDIMM clock speeds | 1066,1333,1600 MHz |
| Supported RDIMM module capacity | 2GB, 4GB, 8GB, 16GB, 32GB |
| Number of DIMM slots | 12 |
| Number of processors supported | 2 |
