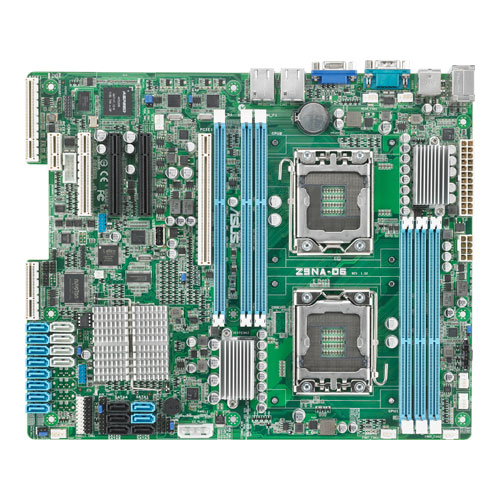

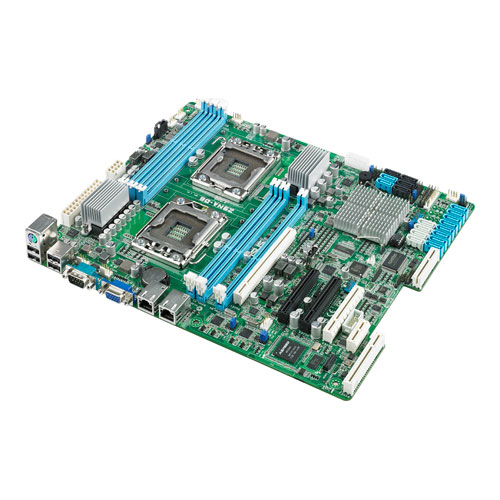

ASUS Z9NA-D6 motherboard Intel® C602 LGA 1356 (Socket B2) ATX
Model Z9NA-D6EAN 4719543186398
57 specifications
- Processor manufacturerIntel
- Supported memory typesDDR3-SDRAM
- Supported storage drive interfacesSATA II, SATA III
- Parallel processing technology supportNot supported
- USB 2.0 connectors1
- USB 2.0 ports quantity4
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR3-SDRAM
- Supported storage drive interfaces
- SATA II, SATA III
- Parallel processing technology support
- Not supported
- USB 2.0 connectors
- 1
- USB 2.0 ports quantity
- 4
- Brand
- ASUS
- Category
- Motherboard
- Model
- Z9NA-D6
- Part number
- Z9NA-D6
- EAN / UPC
- 4719543186398
- Also known as
- ASUS Z9NA-D6 motherboard Intel® C602 LGA 1356 (Socket B2) ATX
Specifications
57 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1356 (Socket B2) |
| Intel Xeon series | E5-2400 |
| Supported QPI | 6.4,7.2,8 GT/s |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR3-SDRAM |
| Supported memory clock speeds | 1066,1333,1600 MHz |
| Maximum internal memory | 192 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA II, SATA III |
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | Not supported |
| On-board graphics card | Yes |
| On-board graphics card memory | 16 MB |
| On-board graphics card model | Aspeed AST2300 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 1 |
| Number of SATA III connectors | 2 |
| Number of SATA II connectors | 4 |
| ATX Power connector (24-pin) | Yes |
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector | Yes |
| Serial port headers | 1 |
| TPM connector | Yes |

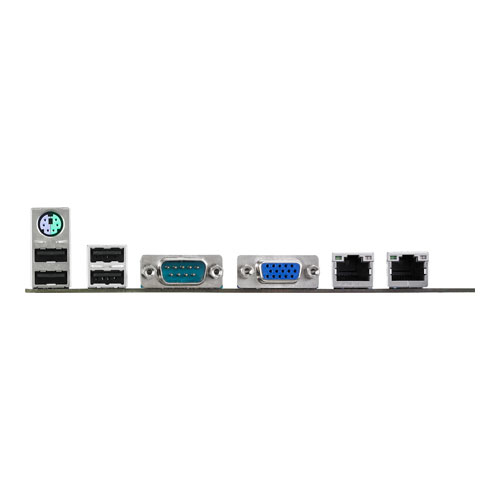

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 2 |
| PS/2 ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| LAN controller | Intel® 82574L |
| Wi-Fi | No |
Features
| Specification | Value |
|---|---|
| Component for | Server |
| Motherboard form factor | ATX |
| Motherboard chipset | Intel® C602 |
| Certification | FCC, CE, C-TICK |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x8 slots | 3 |
| PCI Express x16 slots | 1 |
| PCI Express slots version | 2.0, 3.0 |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage relative humidity (H-H) | 20 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 304.8 mm |
| Depth | 251.5 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | SATA, USB-SATA |
| User guide | Yes |
Other features
| Specification | Value |
|---|---|
| Supported DIMM module capacities | 16GB, 2GB, 32GB, 4GB, 8GB |
| Supported UDIMM clock speeds | 1066,1333 MHz |
| Supported UDIMM module capacity | 2GB, 4GB, 8GB |
| Supported LRDIMM module capacity | 16GB, 32GB, 8GB |
| Supported LRDIMM clock speeds | 1066,1333 MHz |
| Maximum LRDIMM memory | 192 GB |
| Supported RDIMM clock speeds | 1066,1333,1600 MHz |
| Supported RDIMM module capacity | 16GB, 2GB, 4GB, 8GB |
| Number of DIMM slots | 6 |
| Number of processors supported | 2 |
| PCI Express slots quantity | 5 |
What people say
Reviews & ratings
ASUS Z9NA-D6 motherboard Intel® C602 LGA 1356 (Socket B2) ATX
No reviews yet
Be the first to tell others how ASUS Z9NA-D6 motherboard Intel® C602 LGA 1356 (Socket B2) ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare ASUS Z9NA-D6 motherboard Intel® C602 LGA 1356 (Socket B2) ATX
All motherboard comparisons- ASUS Z9NA-D6 motherboard Intel® C602 LGA 1356 (Socket B2) ATX vsASUS Z9PE-D16/2L Intel® C602 LGA 2011 (Socket R) SSI EEBCompare specs
- ASUS Z9NA-D6 motherboard Intel® C602 LGA 1356 (Socket B2) ATX vsASUS Z9PR-D12 Intel® C602 LGA 2011 (Socket R) SSI EEBCompare specs
- ASUS Z9NA-D6 motherboard Intel® C602 LGA 1356 (Socket B2) ATX vsASUS P8B-MX Intel® C202 LGA 1155 (Socket H2) micro ATXCompare specs

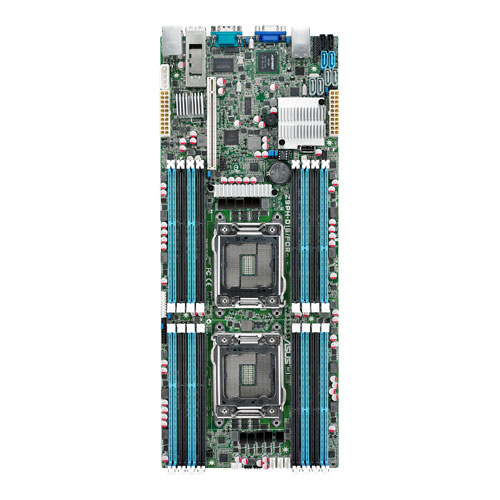

- ASUS Z9NA-D6 motherboard Intel® C602 LGA 1356 (Socket B2) ATX vsASUS Z9PH-D16/QDR Intel® C602 LGA 2011 (Socket R)Compare specs
