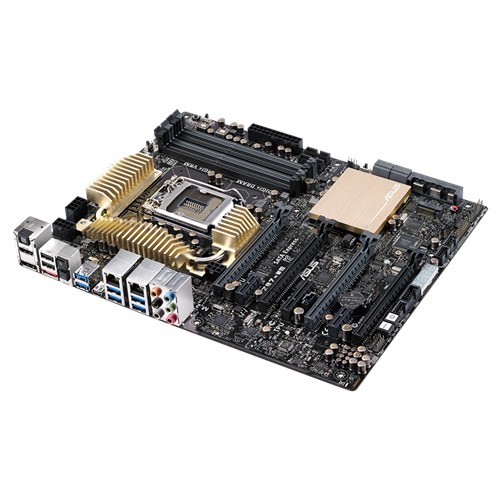

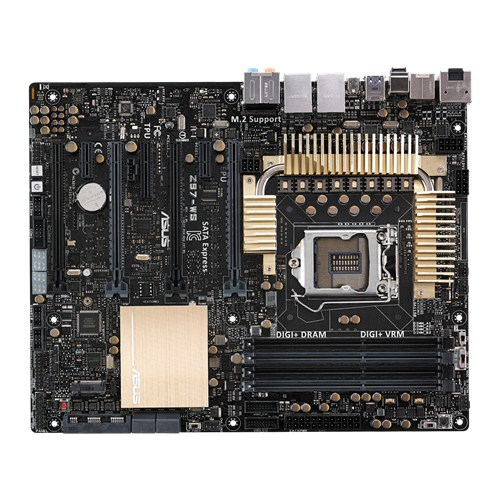

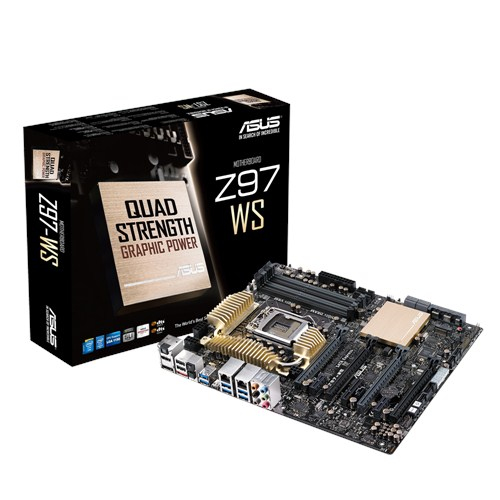

ASUS Z97-WS motherboard Intel® Z97 LGA 1150 (Socket H3) ATX
Model Z97-WSPart no. 90SB04E0-M0EAY0EAN 4716659748069
60 specifications
- Processor manufacturerIntel
- Supported memory typesDDR3-SDRAM
- Supported storage drive interfacesSATA III
- Parallel processing technology support4-Way CrossFireX, 4-Way SLI
- USB 2.0 connectors2
- Ethernet LANYes
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR3-SDRAM
- Supported storage drive interfaces
- SATA III
- Parallel processing technology support
- 4-Way CrossFireX, 4-Way SLI
- USB 2.0 connectors
- 2
- Ethernet LAN
- Yes
- Brand
- ASUS
- Category
- Motherboard
- Model
- Z97-WS
- Part numbers
- 90SB04E0-M0EAY0, Z97-WS
- EAN / UPC
- 4716659748069, 886227748068, 5054565478052, 8862277480686 +1 more
- Also known as
- ASUS Z97-WS motherboard Intel® Z97 LGA 1150 (Socket H3) ATX
Specifications
60 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1150 (Socket H3) |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR3-SDRAM |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 1333,1600,1800,1866,2000,2133,2200,2400,2600,2666,2800,2933,3000,3100,3200,3300 MHz |
| Maximum internal memory | 32 GB |
| Unbuffered memory | Yes |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA III |
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | 4-Way CrossFireX, 4-Way SLI |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 4 |
| Number of SATA II connectors | 0 |
| Number of SATA connectors | 4 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 4 |
| Chassis intrusion connector | Yes |
| EPS power connector (8-pin) | Yes |

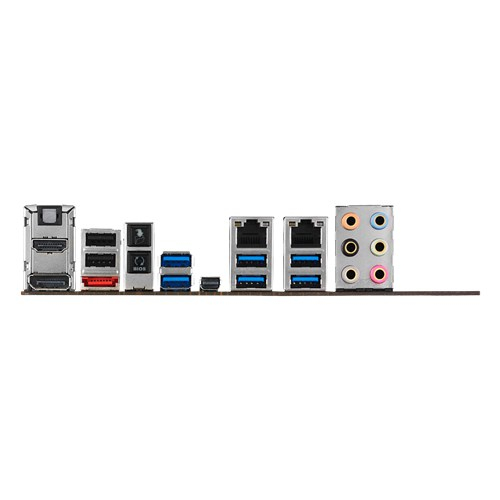

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| Ethernet LAN (RJ-45) ports | 2 |
| eSATA ports quantity | 1 |
| PS/2 ports quantity | 0 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 0 |
| DisplayPorts quantity | 1 |
| Headphone outputs | 1 |
| S/PDIF out port | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| LAN controller | Intel® I218-LM, Intel® I210-AT |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel® Z97 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 (Gen 2.x) slots | 2 |
| PCI Express x4 (Gen 2.x) slots | 1 |
| PCI Express x16 slots | 4 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 64 Mbit |
| ACPI version | 5.0 |
| Clear CMOS button | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 244 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | SATA |
| Drivers included | Yes |
| Bundled software | ASUS Utilities |
Other features
| Specification | Value |
|---|---|
| Mini DisplayPorts quantity | 1 |
| PCI Express power connectors (6-pin) | 1 |
What people say
Reviews & ratings
ASUS Z97-WS motherboard Intel® Z97 LGA 1150 (Socket H3) ATX
No reviews yet
Be the first to tell others how ASUS Z97-WS motherboard Intel® Z97 LGA 1150 (Socket H3) ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare ASUS Z97-WS motherboard Intel® Z97 LGA 1150 (Socket H3) ATX
All motherboard comparisons- ASUS Z97-WS motherboard Intel® Z97 LGA 1150 (Socket H3) ATX vsASUS H97M-E/CSM motherboard Intel® H97 LGA 1150 (Socket H3) micro ATXCompare specs
- ASUS Z97-WS motherboard Intel® Z97 LGA 1150 (Socket H3) ATX vsASUS Z97-K/CSM motherboard Intel® Z97 LGA 1150 (Socket H3) ATXCompare specs

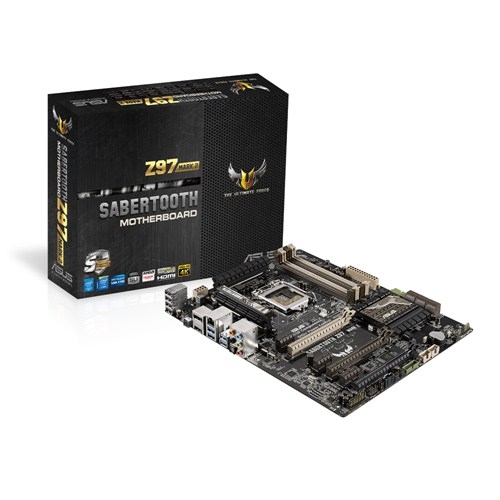

- ASUS Z97-WS motherboard Intel® Z97 LGA 1150 (Socket H3) ATX vsASUS SABERTOOTH Z97 MARK2Compare specs

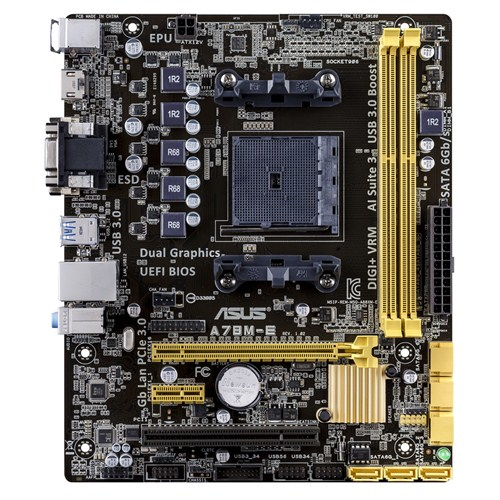

- ASUS Z97-WS motherboard Intel® Z97 LGA 1150 (Socket H3) ATX vsASUS A78M-E AMD A78 Socket FM2+ micro ATXCompare specs
