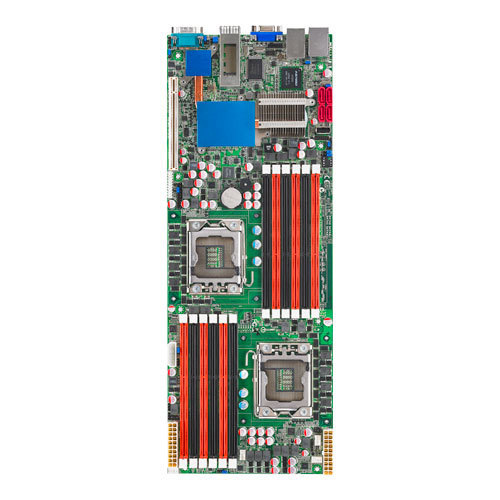

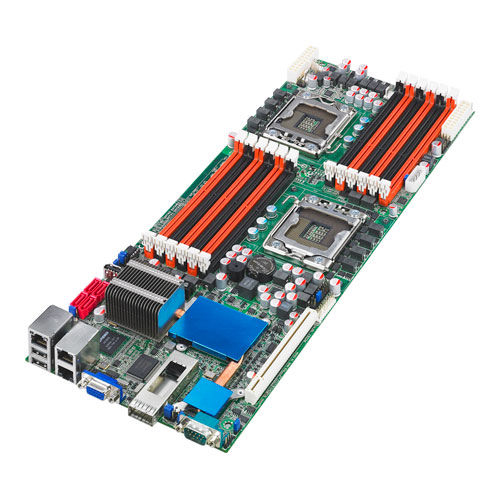

ASUS Z8PH-D12 SE/QDR
Model Z8PH-D12 SE/QDRPart no. 90-MSVCY1-G0UBN00ZEAN 4719543175149
39 specifications
- Processor manufacturerIntel
- Supported memory typesDDR3-SDRAM
- Parallel processing technology supportNot supported
- USB 2.0 connectors2
- LAN controllerIntel® 82574L
- Motherboard form factorSSI CEB
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR3-SDRAM
- Parallel processing technology support
- Not supported
- USB 2.0 connectors
- 2
- LAN controller
- Intel® 82574L
- Motherboard form factor
- SSI CEB
- Brand
- ASUS
- Category
- Motherboard
- Model
- Z8PH-D12 SE/QDR
- Part number
- 90-MSVCY1-G0UBN00Z
- EAN / UPC
- 4719543175149, 4719543176061
- Also known as
- ASUS Z8PH-D12 SE/QDR Intel® 5520 Socket B (LGA 1366) SSI CEB
Specifications
39 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | Socket B (LGA 1366) |
| Compatible processor series | Intel® Xeon® |
| Intel Xeon series | E5500, E5600, L5500, L5600, W5500, X5500, X5600 |
| System bus rate | 6.4 GT/s |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR3-SDRAM |
| Maximum internal memory | 256 GB |
| Maximum RDIMM memory | 192 GB |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | Not supported |
| On-board graphics card | Yes |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA II connectors | 4 |
| Number of Parallel ATA connectors | 0 |
| ATX Power connector (24-pin) | Yes |
| Number of chassis fan connectors | 4 |

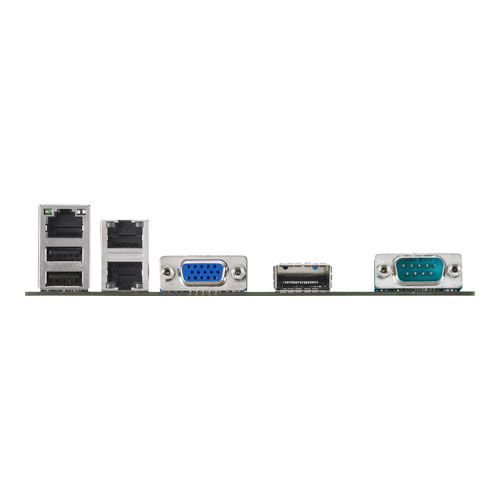

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 2 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 0 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| DVI-D ports quantity | 0 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| LAN controller | Intel® 82574L |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | SSI CEB |
| Motherboard chipset | Intel® 5520 |
| Certification | FCC, CFR47 15, A, CE, EN55022, EN55024, C |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 slots | 1 |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 20 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 424 mm |
| Depth | 160 mm |
Other features
| Specification | Value |
|---|---|
| Supported UDIMM clock speeds | 800,1066,1333 MHz |
| Supported UDIMM module capacity | 1GB, 2GB, 4GB |
| Maximum UDIMM memory | 48 GB |
| Supported RDIMM clock speeds | 800,1066,1333 MHz |
| Supported RDIMM module capacity | 16GB, 1GB, 2GB, 4GB, 8GB |
