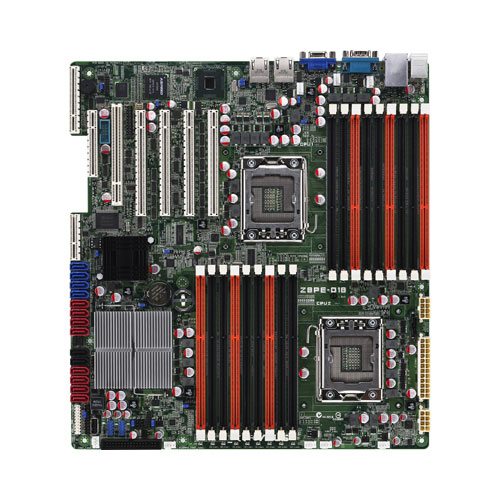

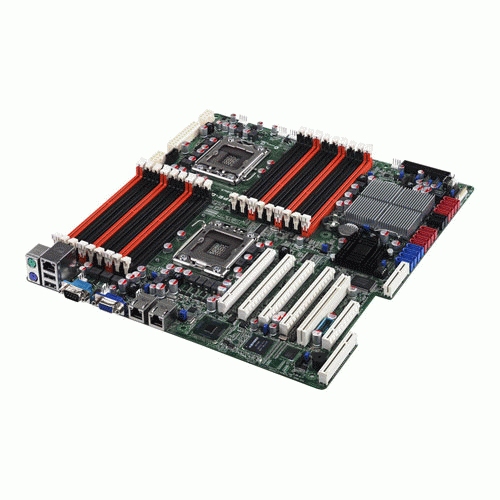

ASUS Z8PE-D18 Intel® 5520 Socket B (LGA 1366) SSI EEB
Model Z8PE-D18EAN 4719543170687
27 specifications
- Processor manufacturerIntel
- ECC сompatibilityECC
- RAID levels0, 1
- USB 2.0 connectors3
- USB 2.0 ports quantity2
- LAN controllerIntel® 82576EB
Overview
- Processor manufacturer
- Intel
- ECC сompatibility
- ECC
- RAID levels
- 0, 1
- USB 2.0 connectors
- 3
- USB 2.0 ports quantity
- 2
- LAN controller
- Intel® 82576EB
- Brand
- ASUS
- Category
- Motherboard
- Model
- Z8PE-D18
- Part numbers
- Z8PE-D18, 90-MSVCH1-G0UAY00Z, 90-MSVCH1-G0UAY00T, 90-MSVCH0-G0UAY00Z, 90-MSVCH0-G0EAY00Z
- EAN / UPC
- 4719543170687, 4719543170694, 610839170692
- Also known as
- ASUS Z8PE-D18 Intel® 5520 Socket B (LGA 1366) SSI EEB
Specifications
27 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | Socket B (LGA 1366) |
Memory
| Specification | Value |
|---|---|
| ECC сompatibility | ECC |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 3 |
| Chassis intrusion connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| DVI-D ports quantity | 0 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| LAN controller | Intel® 82576EB |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | SSI EEB |
| Motherboard chipset | Intel® 5520 |
| Certification | - FCC, CFR47 Part 15, Class B - CE, EN55022 & EN55024 - C-TICK |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 slots | 1 |
| PCI Express x16 slots | 4 |
| PCI slots | 1 |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 20 - 90% |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | ASWM2.0 |
