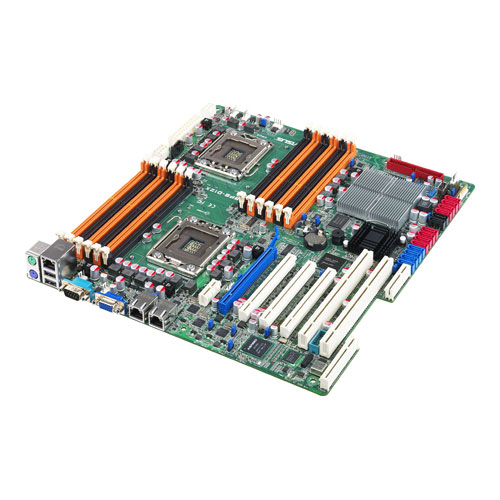

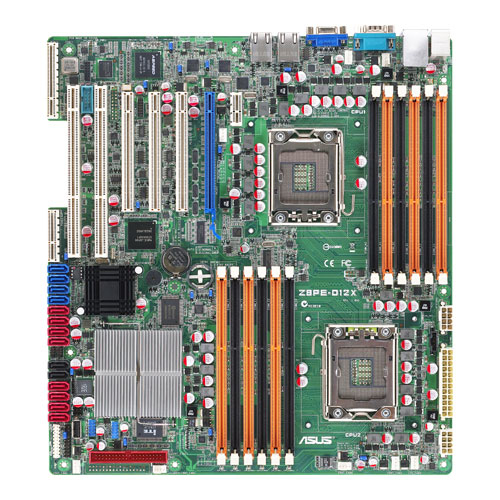

ASUS Z8PE-D12X/IKVM Intel® 5520 Socket B (LGA 1366)
Model Z8PE-D12X/IKVMPart no. 90-MSVCB1-G0UAY00TEAN 4719543169179
52 specifications
- Processor manufacturerIntel
- Supported memory typesDDR3-SDRAM
- Supported storage drive interfacesSerial Attached SCSI (SAS)
- On-board graphics cardYes
- USB 2.0 connectors2
- Component forServer
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR3-SDRAM
- Supported storage drive interfaces
- Serial Attached SCSI (SAS)
- On-board graphics card
- Yes
- USB 2.0 connectors
- 2
- Component for
- Server
- Brand
- ASUS
- Category
- Motherboard
- Model
- Z8PE-D12X/IKVM
- Part numbers
- 90-MSVCB1-G0UAY00T, Z8PE-D12X/IKVM
- EAN / UPC
- 4719543169179
- Also known as
- ASUS Z8PE-D12X/IKVM Intel® 5520 Socket B (LGA 1366)
Specifications
52 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | Socket B (LGA 1366) |
| Intel Xeon series | E5500, E5600, L5500, L5600, W5500, X5500, X5600 |
| Processor number of cores supported | 2, 4, 6 |
| Supported QPI | 4.8,5.86,6.4 GT/s |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR3-SDRAM |
| Supported memory clock speeds | 800,1066,1333 MHz |
| Maximum RDIMM memory | 192 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | Serial Attached SCSI (SAS) |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card memory | 8 MB |
| On-board graphics card model | Aspeed AST2050 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA II connectors | 6 |
| ATX Power connector (24-pin) | Yes |
| Number of chassis fan connectors | 8 |
| Chassis intrusion connector | Yes |
| Serial port headers | 1 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 2 |
| PS/2 ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Intel® 82574L |
| Wi-Fi | No |
Features
| Specification | Value |
|---|---|
| Component for | Server |
| Motherboard chipset | Intel® 5520 |
| Motherboard southbridge | Intel ICH10R |
| Certification | FCC, CFR47 15, Class B, CE, EN55022 & EN55024, C-TICK |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 slots | 0 |
| PCI Express x16 slots | 4 |
| PCI Express slots version | 2.0 |
| PCI-X slots | 2 |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 20 - 90% |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 304.8 mm |
| Depth | 330.2 mm |
Packaging content
| Specification | Value |
|---|---|
| User guide | Yes |
| Bundled software | ASWM2.0 |
Other features
| Specification | Value |
|---|---|
| Supported UDIMM clock speeds | 800,1066,1333 MHz |
| Supported UDIMM module capacity | 1GB, 2GB, 4GB |
| Maximum UDIMM memory | 48 GB |
| Supported RDIMM clock speeds | 800,1066,1333 MHz |
| Supported RDIMM module capacity | 16GB, 1GB, 2GB, 4GB, 8GB |
| Number of DIMM slots | 12 |
| Number of processors supported | 2 |
| PCI Express slots quantity | 6 |
What people say
Reviews & ratings
ASUS Z8PE-D12X/IKVM Intel® 5520 Socket B (LGA 1366)
No reviews yet
Be the first to tell others how ASUS Z8PE-D12X/IKVM Intel® 5520 Socket B (LGA 1366) works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare ASUS Z8PE-D12X/IKVM Intel® 5520 Socket B (LGA 1366)
All motherboard comparisons- ASUS Z8PE-D12X/IKVM Intel® 5520 Socket B (LGA 1366) vsASUS P8H67-I PROCompare specs
- ASUS Z8PE-D12X/IKVM Intel® 5520 Socket B (LGA 1366) vsASUS Rampage IV GENECompare specs
- ASUS Z8PE-D12X/IKVM Intel® 5520 Socket B (LGA 1366) vsASUS Rampage IV Extreme/Battlefield 3Compare specs
- ASUS Z8PE-D12X/IKVM Intel® 5520 Socket B (LGA 1366) vsASUS Rampage IV FormulaCompare specs

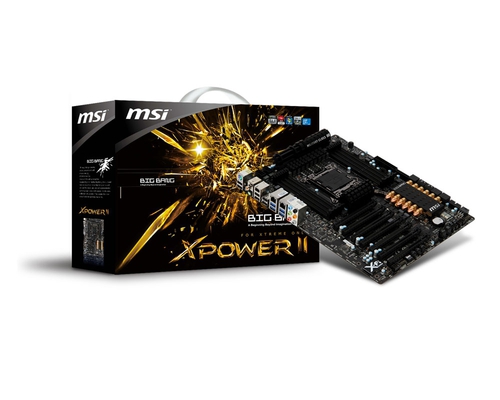

- ASUS Z8PE-D12X/IKVM Intel® 5520 Socket B (LGA 1366) vsMSI Big Bang-XPower IICompare specs
- ASUS Z8PE-D12X/IKVM Intel® 5520 Socket B (LGA 1366) vsGIGABYTE GA-8S648 motherboard Socket 478 ATXCompare specs

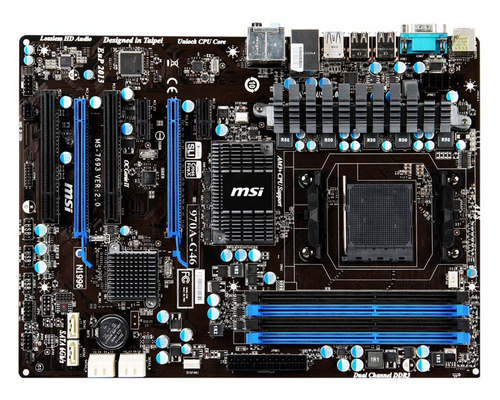

- ASUS Z8PE-D12X/IKVM Intel® 5520 Socket B (LGA 1366) vsMSI 970A-G46 AMD 970 Socket AM3+ ATXCompare specs
