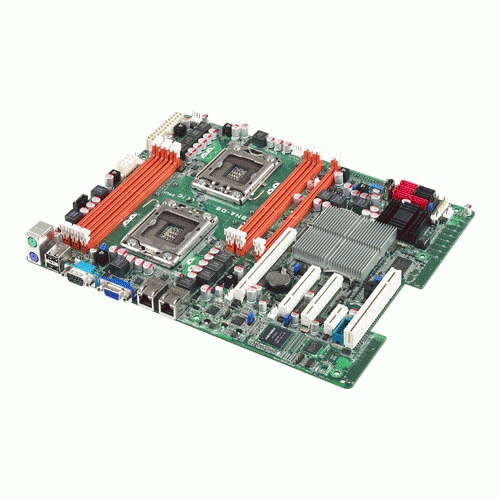

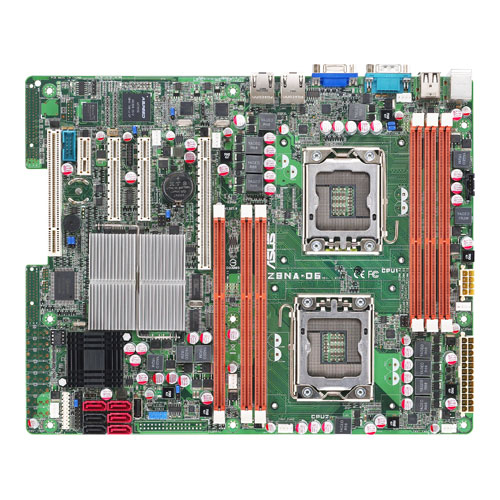

ASUS Z8NA-D6C Intel® 5500 Socket B (LGA 1366) ATX
Model Z8NA-D6CPart no. 90-MSVCJ1-G0UAY0YZEAN 4719543170403
33 specifications
- Processor manufacturerIntel
- Number of memory slots6
- RAID levels0, 1, 5, 10
- On-board graphics cardYes
- USB 2.0 connectors2
- LAN controllerIntel® 82574L
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 6
- RAID levels
- 0, 1, 5, 10
- On-board graphics card
- Yes
- USB 2.0 connectors
- 2
- LAN controller
- Intel® 82574L
- Brand
- ASUS
- Category
- Motherboard
- Model
- Z8NA-D6C
- Part numbers
- 90-MSVCJ1-G0UAY0YZ, 90-MSVCJ1-G0UAY00Z, 90-MSVCJ0-G0UAY0YZ
- EAN / UPC
- 4719543170403
- Also known as
- ASUS Z8NA-D6C Intel® 5500 Socket B (LGA 1366) ATX
Specifications
33 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | Socket B (LGA 1366) |
| Maximum number of SMP processors | 2 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 6 |
| ECC сompatibility | ECC & Non-ECC |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Chassis intrusion connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| LAN controller | Intel® 82574L |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Motherboard chipset | Intel® 5500 |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x8 slots | 2 |
| PCI Express x16 slots | 1 |
| PCI slots | 1 |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 20 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 244 mm |
Packaging content
| Specification | Value |
|---|---|
| Drivers included | Yes |
| Bundled software | ASWM2.0 |
